Detail AUGUSTINA Convenient Photosensitive Film Portable Circuit Production Dry Film Replace Circuit Photoresist Sheets Circuit Board Instead 30CMx1M PCB Board Photographic Plate/Multicolor

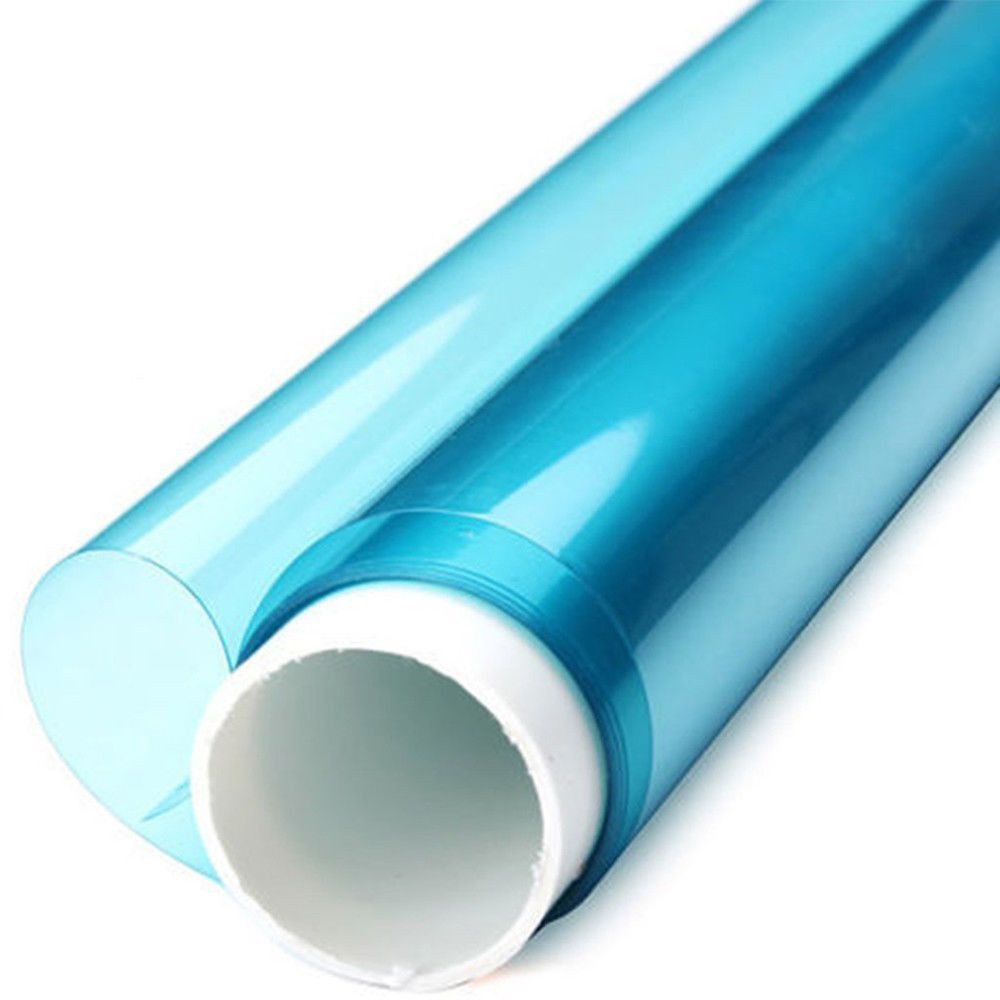

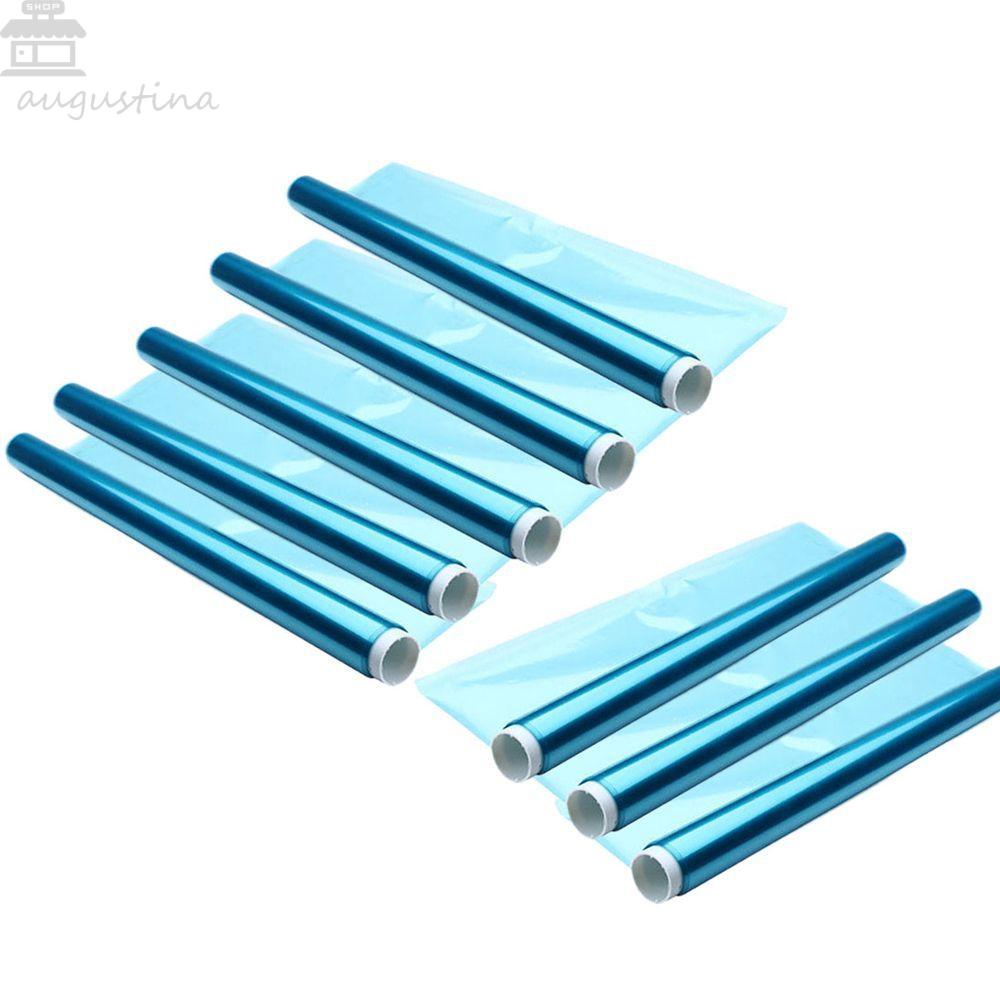

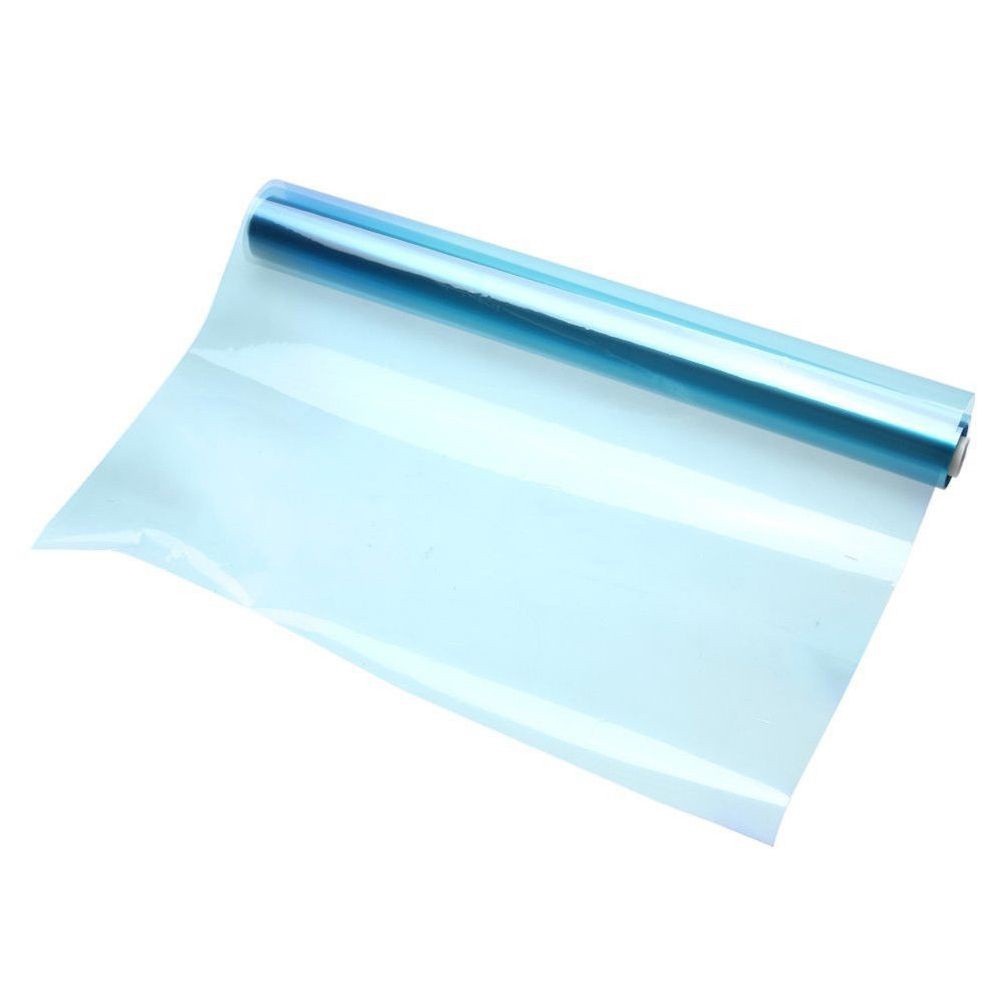

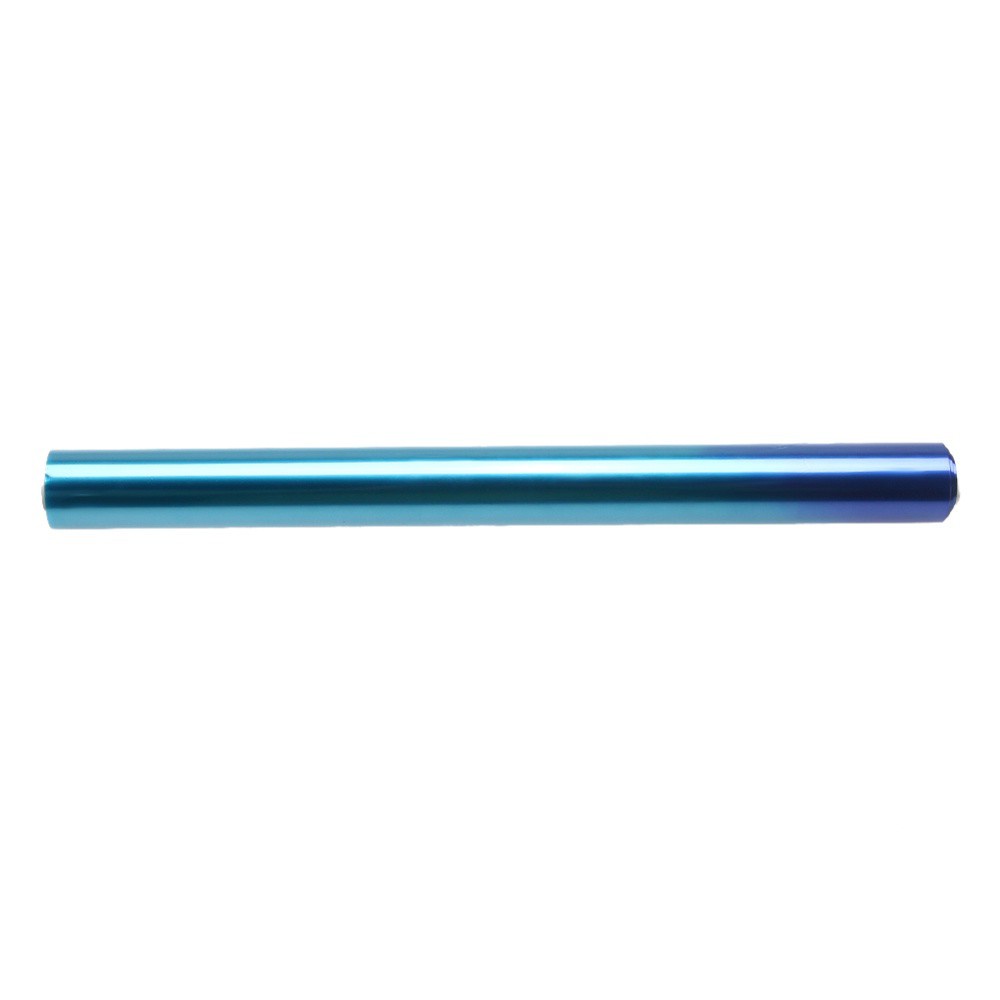

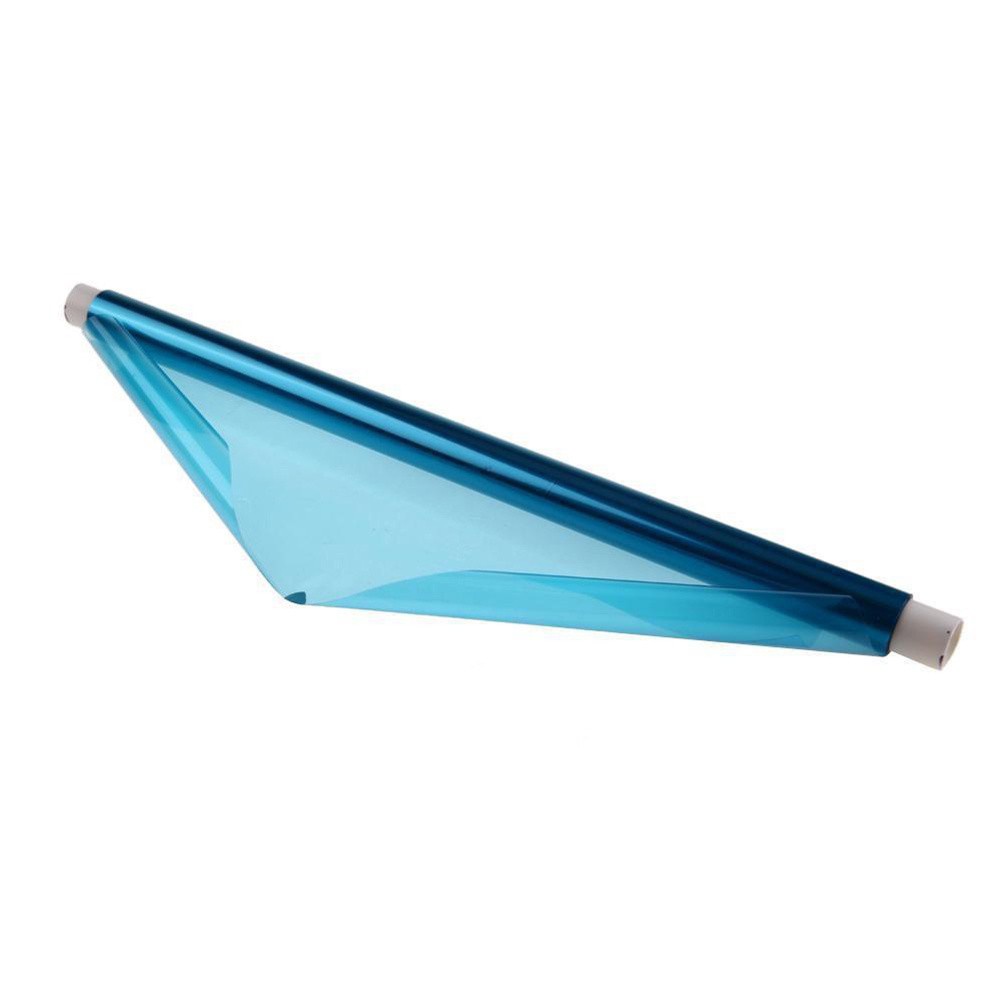

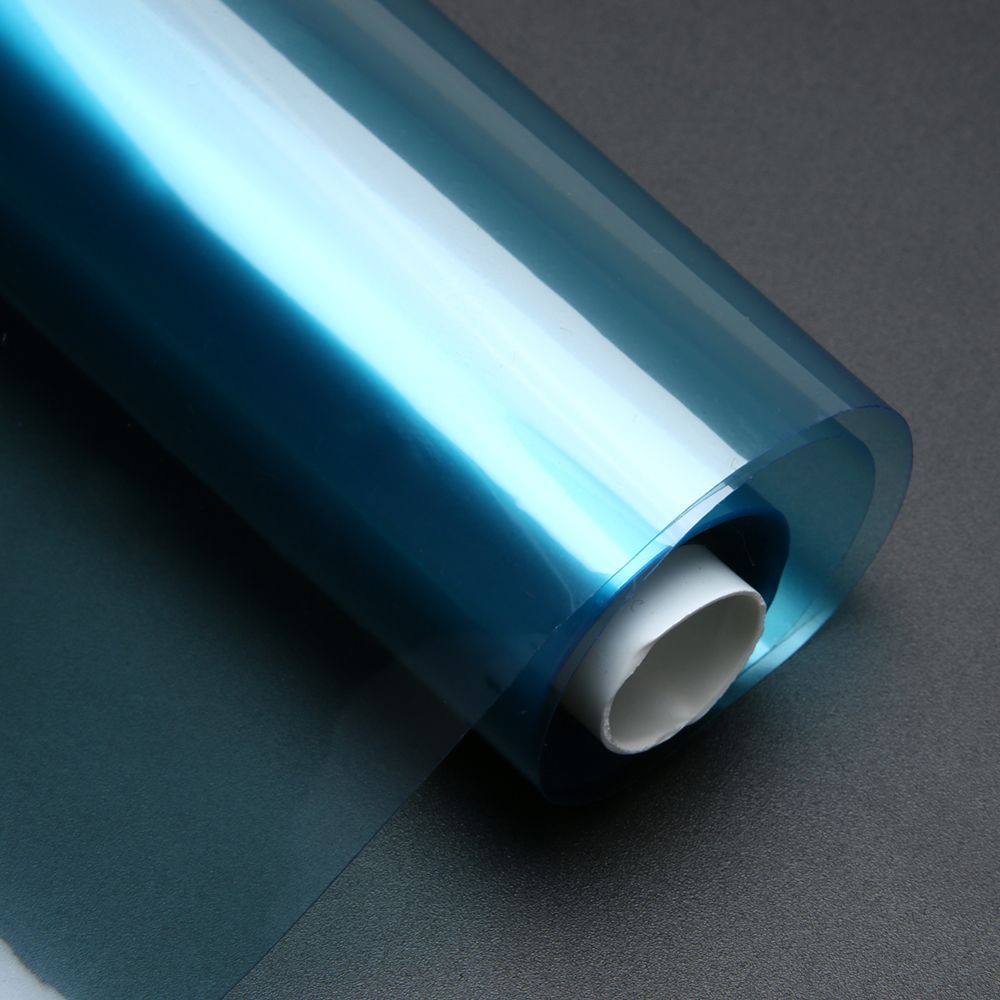

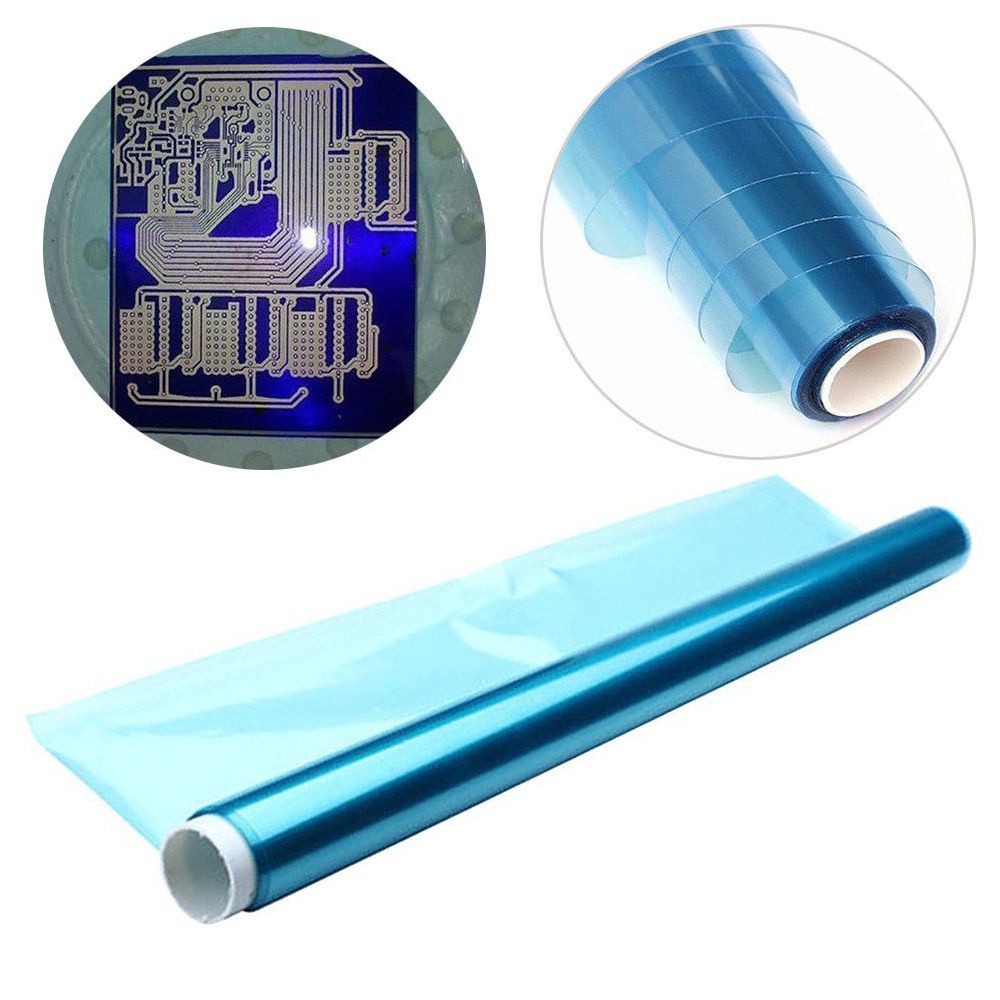

Package includes:1 Roll x Photosensitive Dry Film

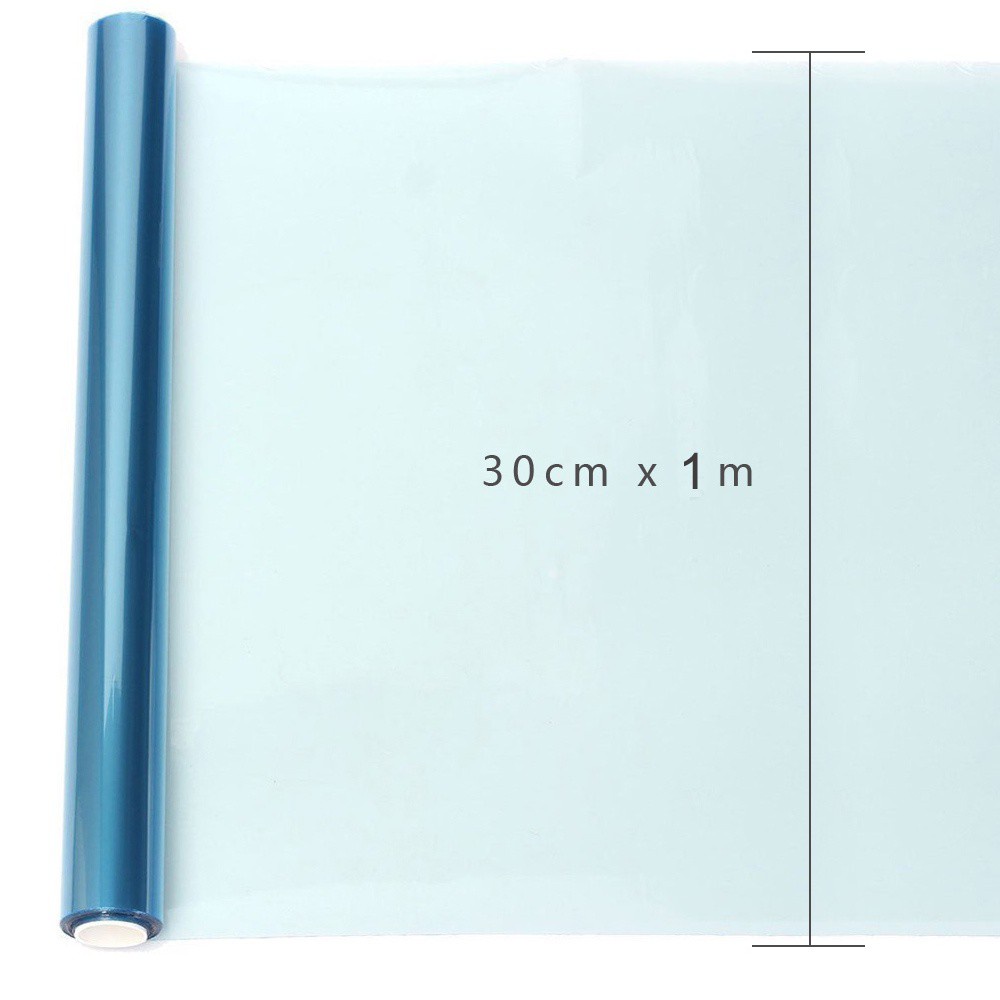

Width: approx. 30 cm/11.81"
Material: Organic Resin
Length: approx. 100 cm/39.37"
DIY Supplies:Electronic Components
Color: Show As Picture
Quantity: 1 Roll
Product: Photosensitive Dry Film
Description:
Universal used in producing PCB board, attach on the PCB surface to make it photosensitive.
Suitable for electroplating, hole covering and etching.
Great hole covering ability.
High resolution.
Great adaptive capacity to different material.
Durable in pH 8.0-8.5 situation.
1.5mil dry film fully covers a 0.25inch height hole.
Suitable for usual plating bath, no wrinkle or color error.

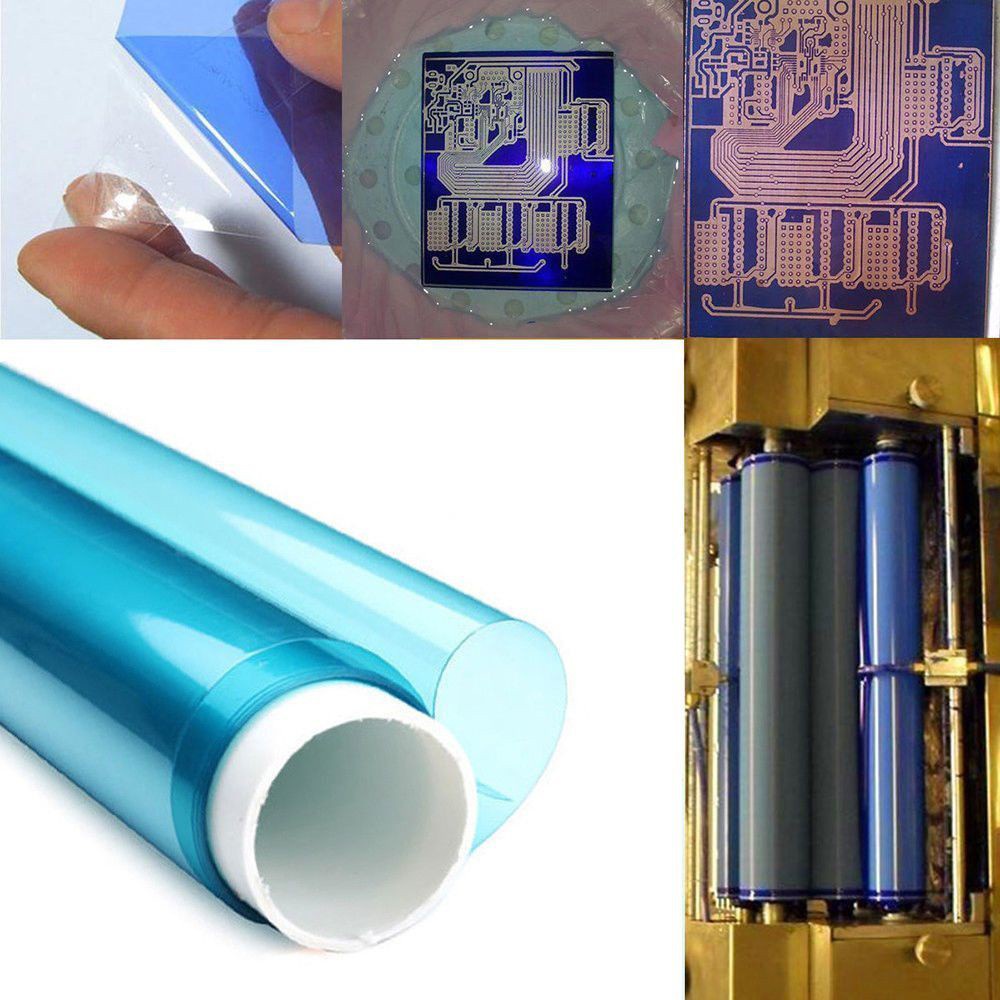

Operating Steps:
1. Remove the cover.
2. Clean the surface, then attach the film carefully, be sure to make it flat and leave no air.
3. Iron the film slightly to fix it.
4. Print the PCB film to ensure precision, or use parchment paper instead.
5. Put the printed pattern on the photosensitive board to expose. The dry film will turn into deep blue from light blue.
6. Develop: Remove another film, put it into developer water. Wipe the board when developing. (1 developer water: 100 water)
7. Etch.
8. Demould after etching is finished. Put the board into demoulding water for several minutes. (1 demoulding water: 60/70 water)

Note:
Please allow 1-3mm differs due to manual measurement.
Due to the different display and different light, the picture may not reflect the actual color of the item. Thanks for your understanding.
