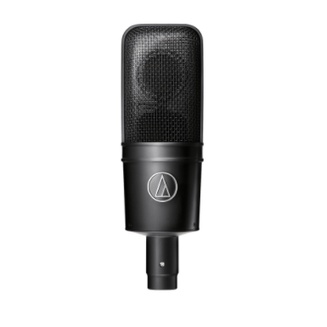

Audio Technica AT4040 Cardioid Condenser Microphone

Detail Audio Technica AT4040 Cardioid Condenser Microphone

Technically-advanced large diaphragm tensioned specifically to provide smooth, natural sonic characteristics
Externally polarized (DC bias) true condenser design
Exceptionally low noise, wide dynamic range and high-SPL capability for greatest versatility
Transformerless circuitry virtually eliminates low-frequency distortion and provides superior correlation of high-speed transients
Precision-machined, nickel-plated brass, acoustic element baffle provides enhanced element stability and optimal sensitivity
Open acoustical environment of the symmetrical housing assembly minimizes unwanted internal reflections
State-of-the-art surface-mount electronics ensure compliance with A-T's stringent consistency and reliability standards

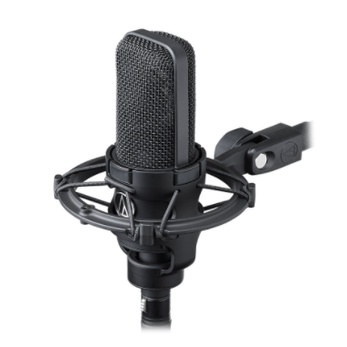

Custom shock mount provides superior isolation
Switchable 80 Hz hi-pass filter and 10 dB pad

Microphones
Element Externally-polarized (DC bias) condenser
Polar Pattern Cardioid
Frequency Response 20-20,000 Hz
Low Frequency Roll Off 80 Hz, 12 dB/octave
Open Circuit Sensitivity -32 dB (25.1 mV) re 1V at 1 Pa
Maximum Input Sound Level 145 dB SPL, 1 kHz at 1% T.H.D.;
155 dB SPL, with 10 dB pad (nominal)
Noise 12 dB SPL
Dynamic Range 133 dB, 1 kHz at Max SPL
Signal-to-Noise Ratio 82 dB, 1 kHz at 1 Pa
Phantom Power Requirements 48V DC, 4.2 mA typical
Switches Flat, roll-off;
10 dB pad (nominal)
Weight 12.7 oz (360 g)
Dimensions 6.69" (170.0 mm) long,
2.10" (53.4 mm) maximum body diameter
Output Connector Integral 3-pin XLRM-type

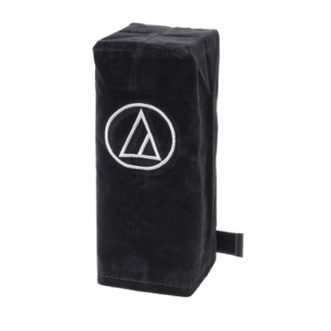

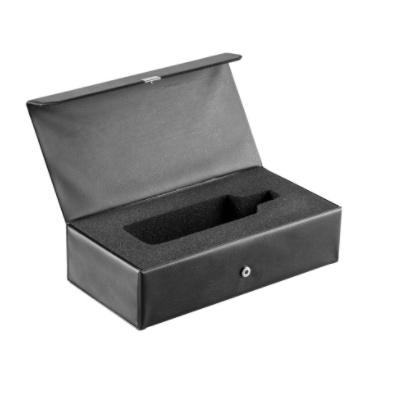

Accessories Included AT8449a shock mount for 5/8"-27 threaded stands; microphone dust cover; protective carrying case
Audio-Technica Case Style R1
