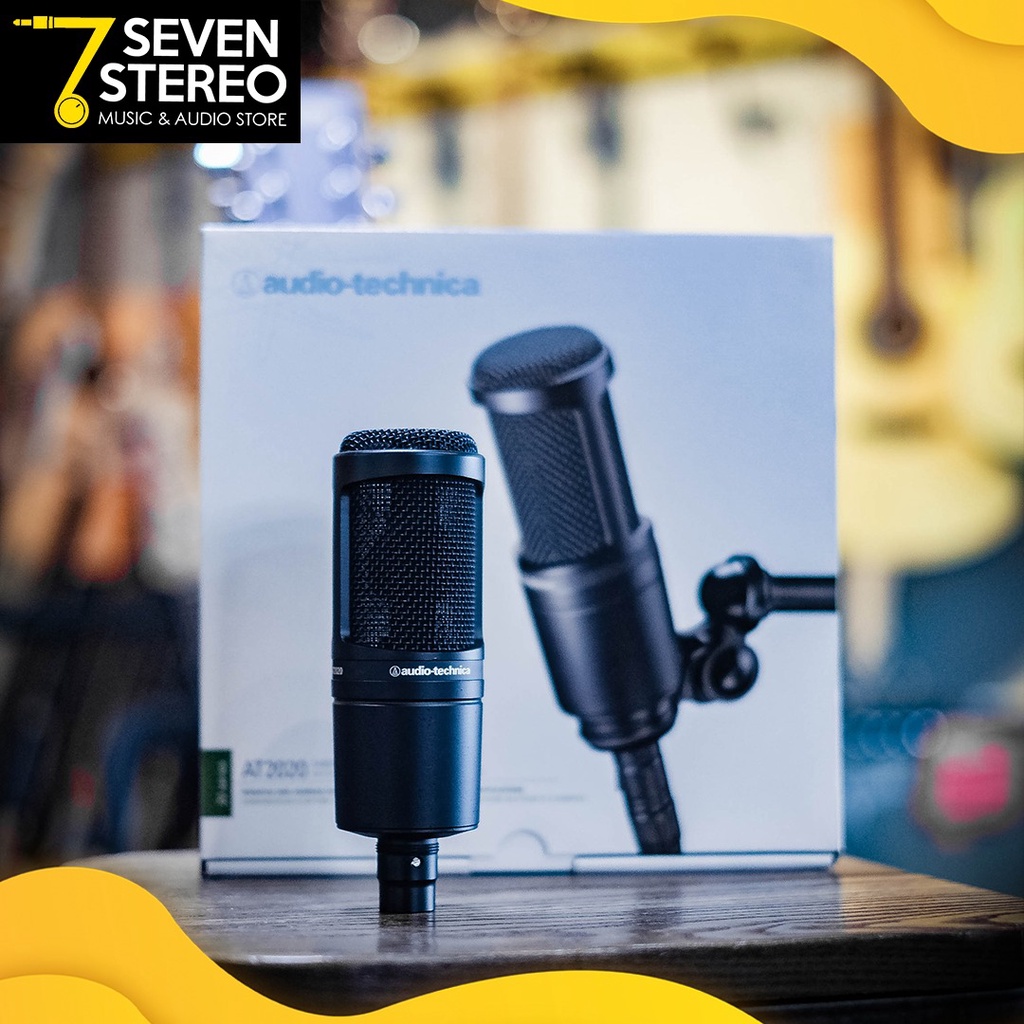

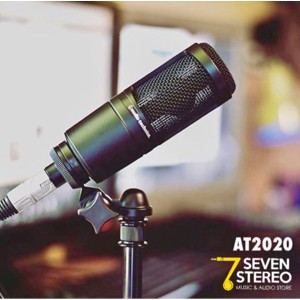

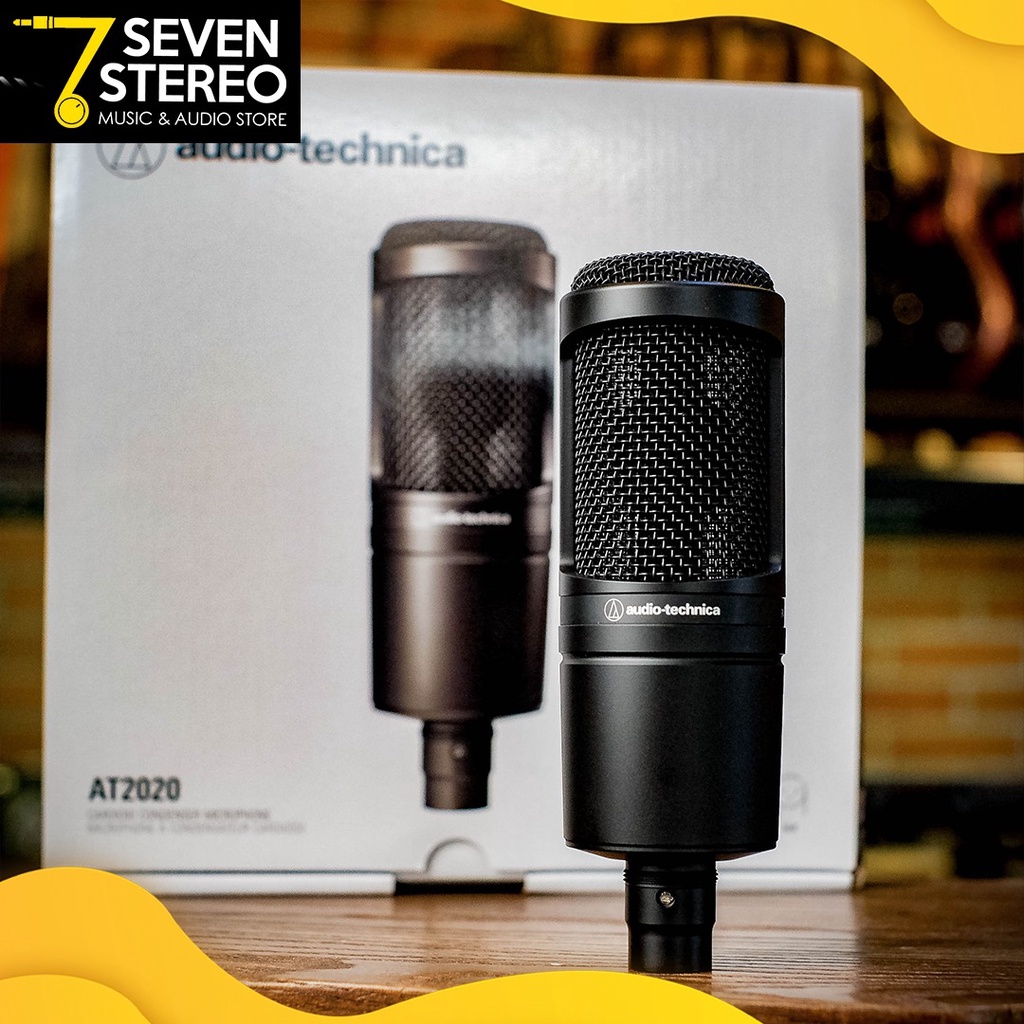

Audio Technica AT2020 Cardioid Condenser Microphone

Detail Audio Technica AT2020 Cardioid Condenser Microphone

The Audio-Technica AT2020 is a versatile and affordable cardioid condenser microphone. It has the appearance of a large diaphragm condenser but its 16mm back-electret capsule means it is actually a medium diaphragm microphone.

The price/performance standard in side-address studio condenser microphone technology

Ideal for project/home-studio applications

High SPL handling and wide dynamic range provide unmatched versatility

Custom-engineered low-mass diaphragm provides extended frequency response and superior transient response

Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source

Pivoting, threaded stand mount attaches securely for easy and precise placement of the microphone

ELEMENT Fixed-charge back plate, permanently polarized condenser
POLAR PATTERN Cardioid
FREQUENCY RESPONSE 20-20,000 Hz
OPEN CIRCUIT SENSITIVITY –37 dB (14.1 mV) re 1V at 1 Pa
IMPEDANCE 100 ohms
MAXIMUM INPUT SOUND LEVEL 144 dB SPL, 1 kHz at 1% T.H.D.
NOISE 20 dB SPL
DYNAMIC RANGE (typical) 124 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO 74 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS 48V DC, 2 mA typical
WEIGHT 12.1 oz (345 g)
DIMENSIONS 6.38" (162.0 mm) long,
2.05" (52.0 mm) maximum body diameter
OUTPUT CONNECTOR Integral 3-pin XLRM-type
ACCESSORIES FURNISHED Stand mount for 5/8"-27 threaded stands; 5/8"-27 to 3/8"-16 threaded adapter; soft protective pouch
AUDIO-TECHNICA CASE STYLE R7
