Detail Audio Technica AT VM95E Cartridge Turntable Audio Technica LP120
Isi Dalam Kemasan : 1x AT-VM95E

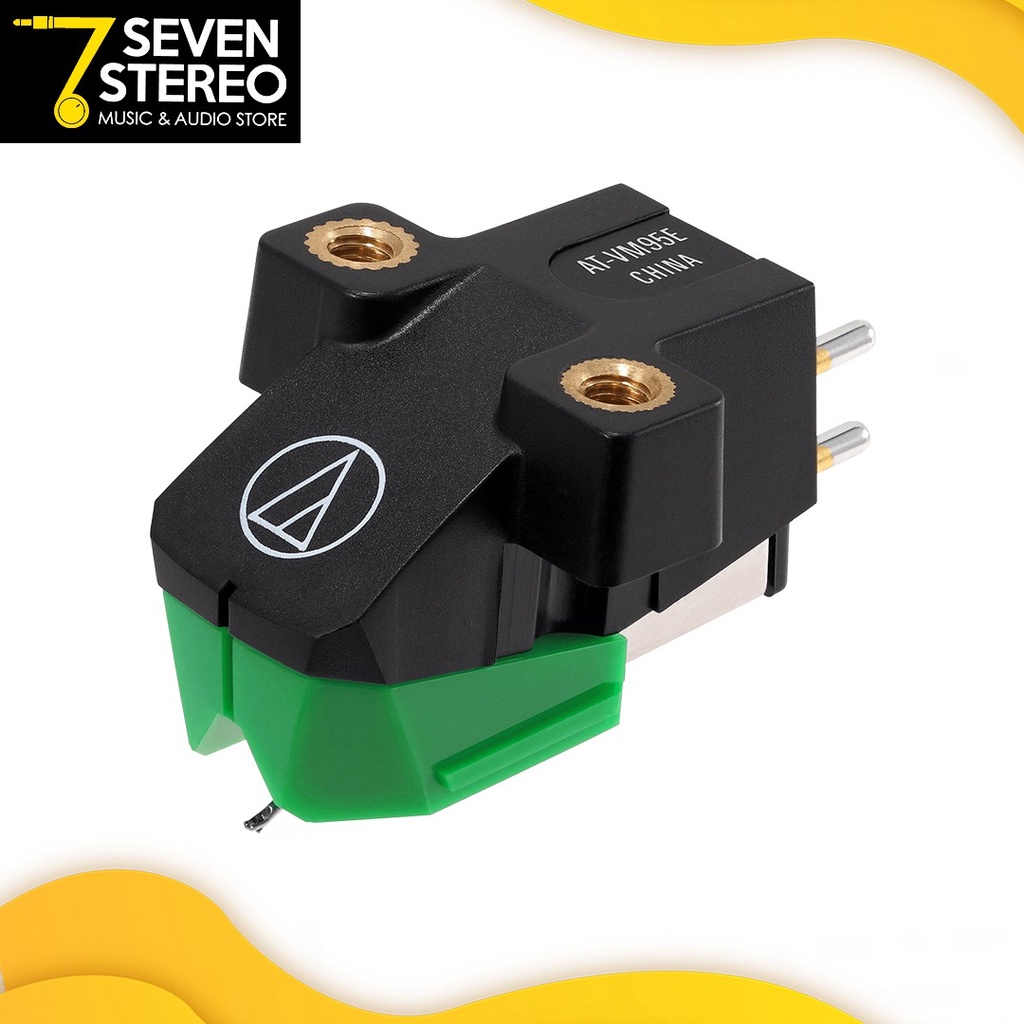

This VM95 Series cartridge with 0.3 x 0.7 mil elliptical stylus fits half-inch mount turntables. The cartridges special coil design delivers a powerful output level of 4.0 mV. It also offers excellent channel separation and low distortion for outstanding tonal quality. The durable, low-resonance housing includes threaded inserts that enable the cartridge to be mounted to the headshell with just two screws no nuts required. And since all VM95 Series share the same body, the stylus can be replaced with any of the six interchangeable AT-VMN95 replacement styli.
Feature: - VM95 Series dual magnet cartridge with 0.3 x 0.7 mil elliptical stylus - Aluminum cantilever - Specially wound coils increase output voltage - Durable low-resonance polymer housing - Threaded inserts in cartridge body enable cartridge to be mounted to headshell with just two screws no nuts required - Compatible with any AT-VMN95 replacement stylus
Cartridge & Stylus Frequency Response: 20-22,000 Hz Channel Separation: 20 (dB at 1 kHz) Vertical Tracking Angle: 23 Vertical Tracking Force: 1.8-2.2 g (2.0 g standard) Stylus Construction Bonded round shank Recommended Load Impedance: 47,000 ohms Coil Impedance: 3.3 k ohms (1 kHz) DC Resistance: 485 ohms Coil Inductance: 550 mH (1 kHz) Output Voltage: 4.0 mV (1 kHz, 5 cm/sec.) Output Channel Balance 2.0 dB (1 kHz) Stylus Shape: 0.3 x 0.7 mil elliptical Cantilever: Aluminum pipe Static Compliance: 17 x 10 6 cm / dyne Dynamic Compliance: 7 x 10 6 cm / dyne (100 Hz) Mounting Half-inch Cartridge Weight: 6.1g Dimensions: 17.2 mm (0.68") H 18.9 mm (0.74") W 28.3 mm (1.20")
