Detail ATX Cooler Master PC Case MasterBox MB600L V2 With ODD
Spesifikasi :
MODEL NUMBER MB600L2-KGNN-S00 (w/o ODD TG)
SERIES MasterBox Series
SIZE Mid Tower
AVAILABLE COLOR(S) Black
MATERIALS Steel, Plastic, Tempered Glass
DIMENSIONS (L X W X H) 405.5x204x455.3mm (incl. Protrusions) (MB600L2-K*NN-S00), 400x204x455.3mm (excl. Protrusions) (MB600L2-K*NN-S00), 460.5x204x455.3mm
VOLUME (EXLC. PROTRUSIONS) 37.15L (MB600L2-K*NN-S00)
MOTHERBOARD SUPPORT Mini ITX, Micro ATX, ATX
EXPANSION SLOTS 7
5.25" DRIVE BAYS 0 (MB600L2-K*NN-S00)
2.5" / 3.5" DRIVE BAYS (COMBO) 2
2.5" DRIVE BAYS 2
I/O PANEL 2x USB 3.2 Gen 1 Type-A, 1x 3.5mm Headset Jack (Audio+Mic)
PRE-INSTALLED FANS - TOP N/A
PRE-INSTALLED FANS - FRONT N/A
PRE-INSTALLED FANS - REAR 1x 120mm
FAN SUPPORT - TOP 2x 120/140mm
FAN SUPPORT - FRONT 3x 120mm, 2x 140mm, 3x 120mm (remove ODD bracket) (MB600L2-K*5N-S00)
FAN SUPPORT - REAR 1x 120mm RADIATOR SUPPORT - TOP 120mm, 240mm, (RAM height limit 32mm; install RAM first, then install radiator)
RADIATOR SUPPORT - FRONT 120mm, 140mm, 240mm, 280mm, 360mm (remove & reinstall ODD bracket to mount 360mm radiator (MB600L2-K*5N-S00)
RADIATOR SUPPORT - REAR 120mm
CLEARANCE - CPU COOLER 161mm
CLEARANCE - PSU 160mm (MB600L2-K*NN-S00)
CLEARANCE - GFX 350mm (w/o front fans & radiator) (MB600L2-K*NN-S00)
CABLE ROUTING 18.5mm
DUST FILTERS Front, Top, Bottom
POWER SUPPLY SUPPORT Bottom mount, ATX

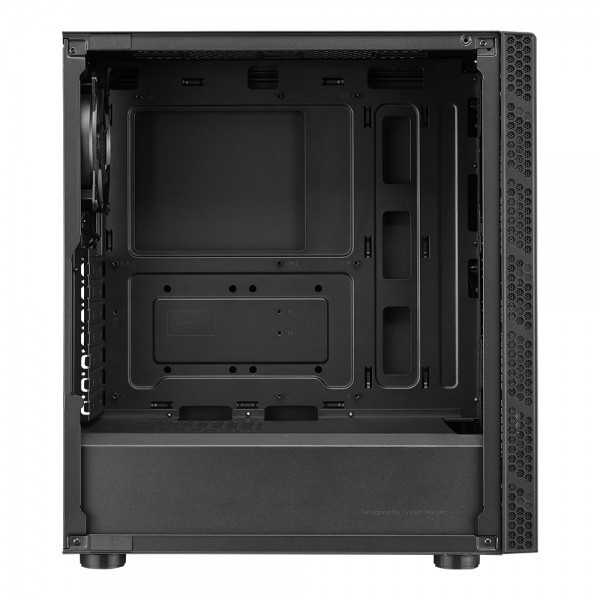

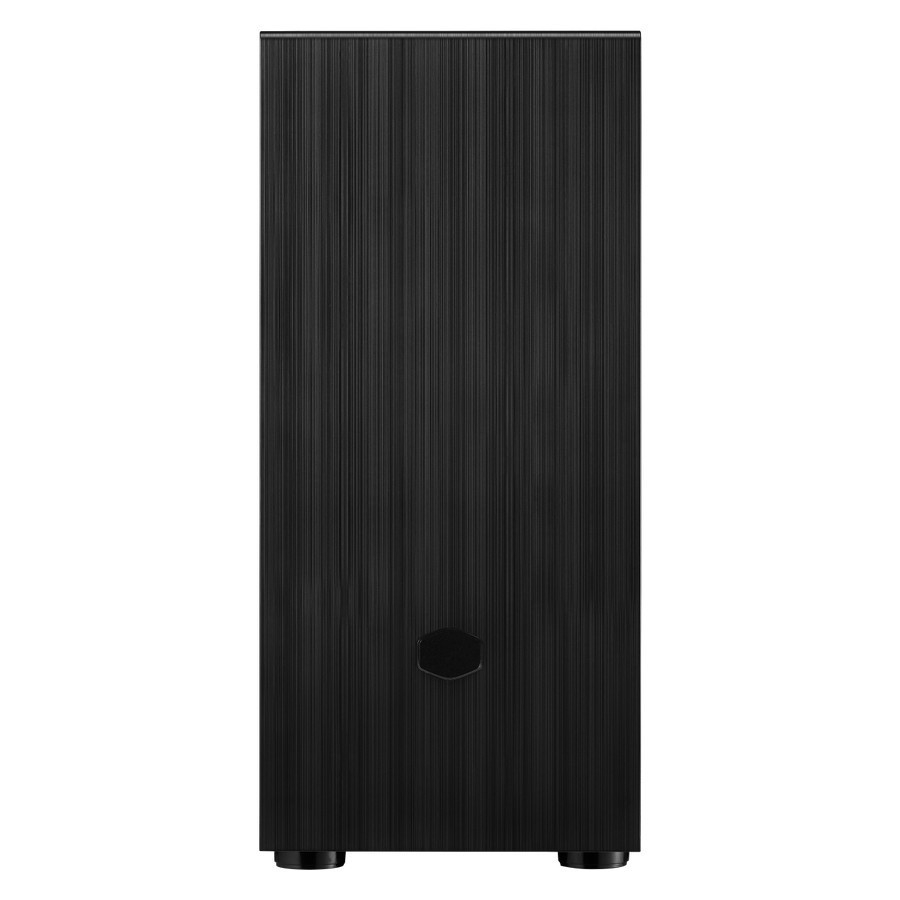

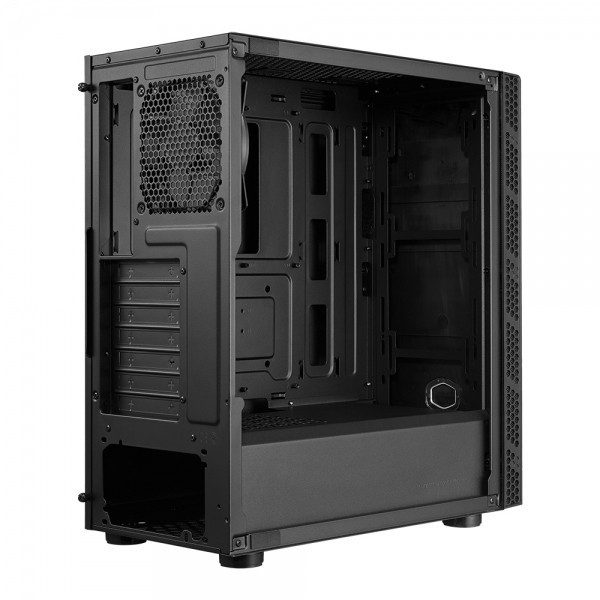

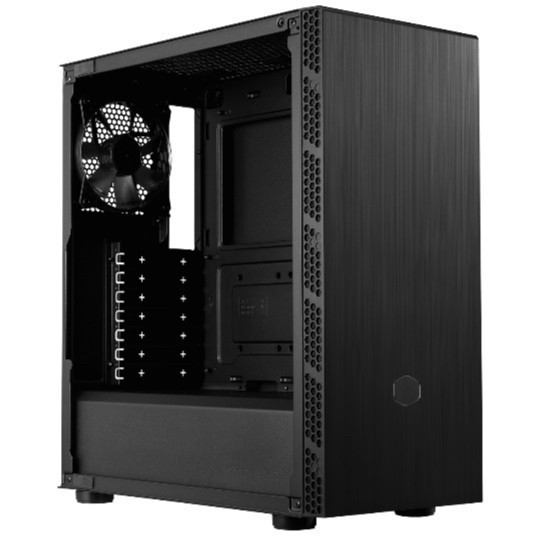

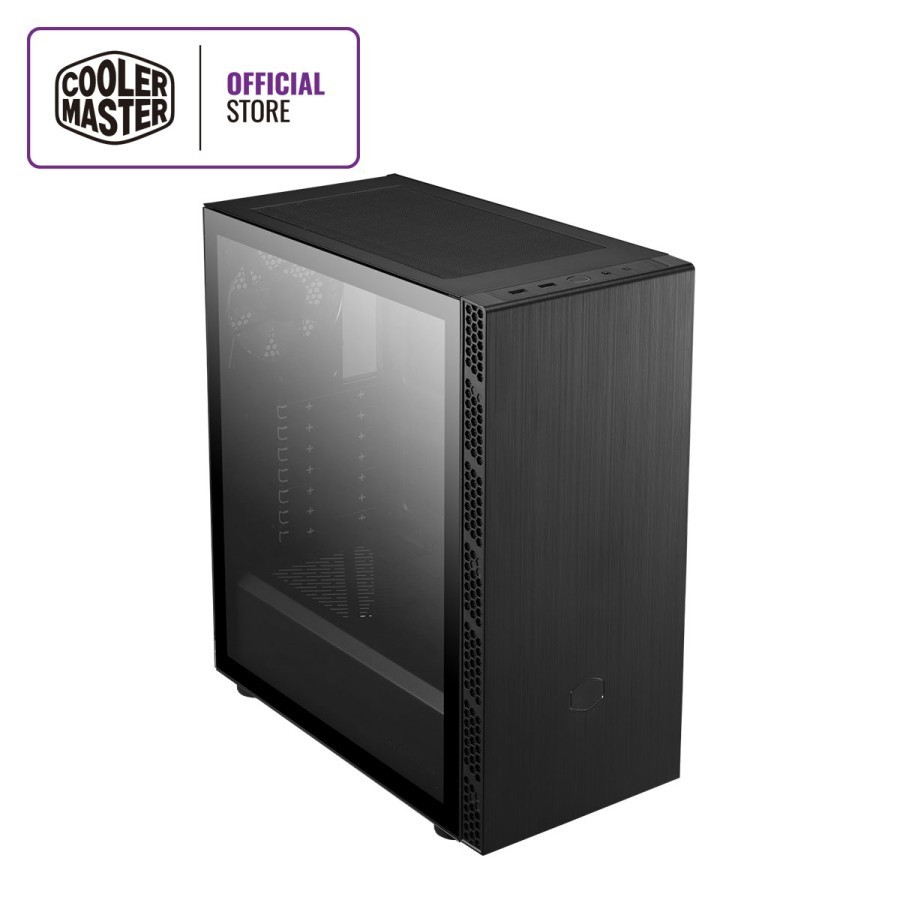

Gambar produk
