ATtiny88 Micro development board 16Mhz Upgraded Arduino Nano v3

Detail ATtiny88 Micro development board 16Mhz Upgraded Arduino Nano v3

Hi #RekanEasyWare ...
SKU: EP000406

The MH-ET LIVE Tiny88(16.0Mhz) based microcontroller development board similar to the Arduino line, only cheaper, smaller, and a bit less powerful. With the ability to use the familiar Arduino IDE the MH-ET LIVE Tiny88(16.0Mhz) is a great board to jump into electronics, or perfect for when an other board is too big or too much.The MH-ET LIVE Tiny88(16.0Mhz) is shipped fully assembled except for the headersincluded and easy to solder them by yourself.

SPESIFIKASI :
- Support for the Arduino IDE 1.0+ (OSX/Win/Linux)
- Power via USB or External Source - 5v or 7-35v (12v or less recommended,
- automatic selection)
- On-board 500ma 5V Regulator
- Built-in USB

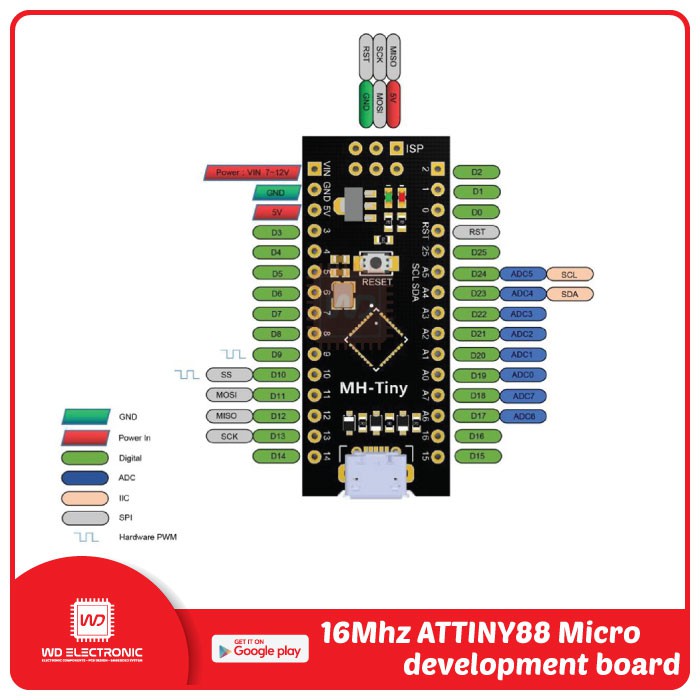

- 26 I/O Pins (2 are used for USB only if your program actively communicates over USB, otherwise you can use all 6 even if you are programming via USB)
- 8k Flash Memory (about 6k after bootloader)
- I2C and SPI
- 26-PWM (26 pins with Software PWM,only two(D9,D10) with hardware PWM )
- ADC on 8 pins
- Power LED and Test/Status LED

KELENGKAPAN :

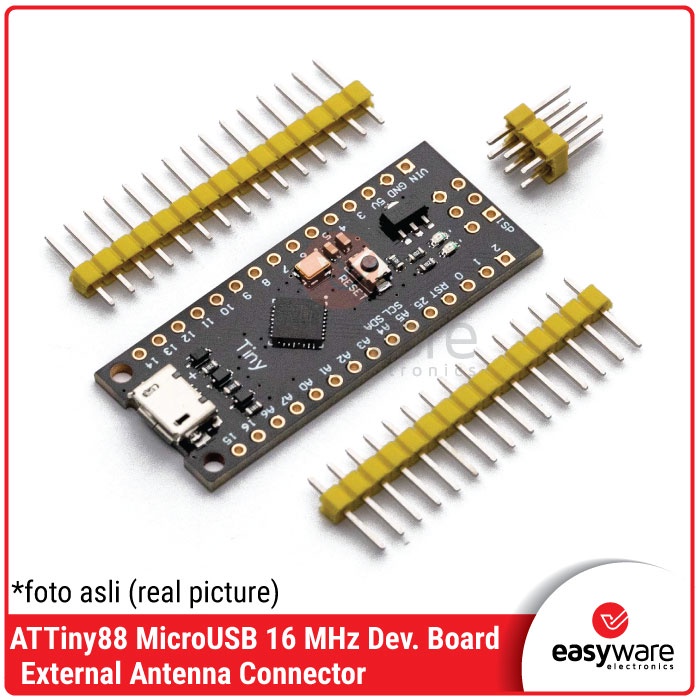

- 1pcs MH-Tiny ATTINY88 micro development board 16Mhz

Catatan ; Saran Upload Sket menggunakan Via ICSP / USB ASP Downloader

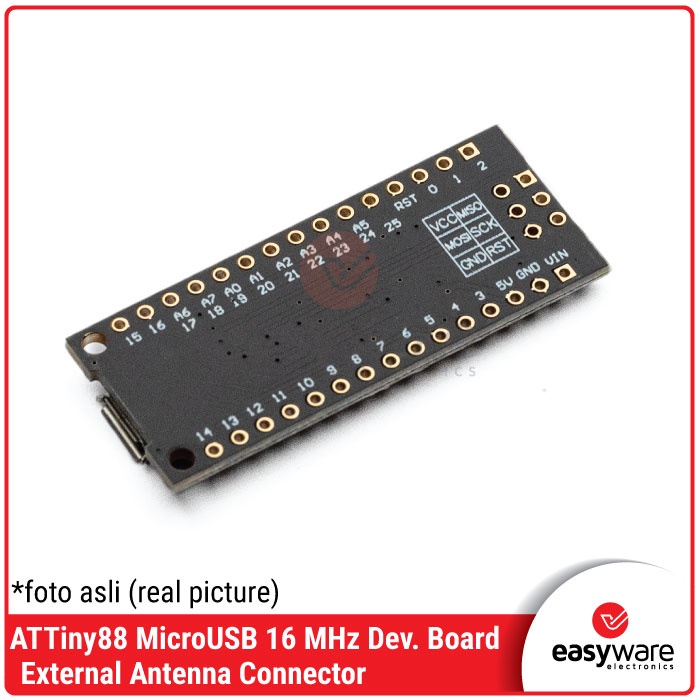

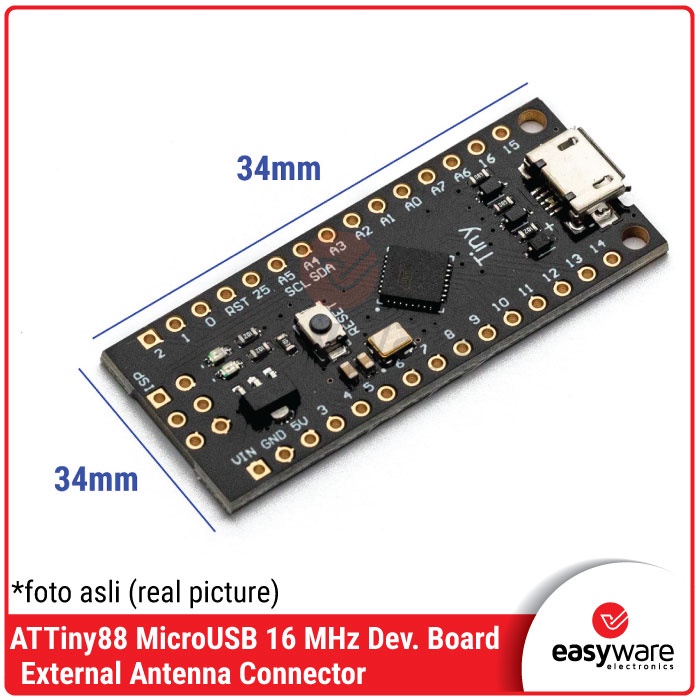

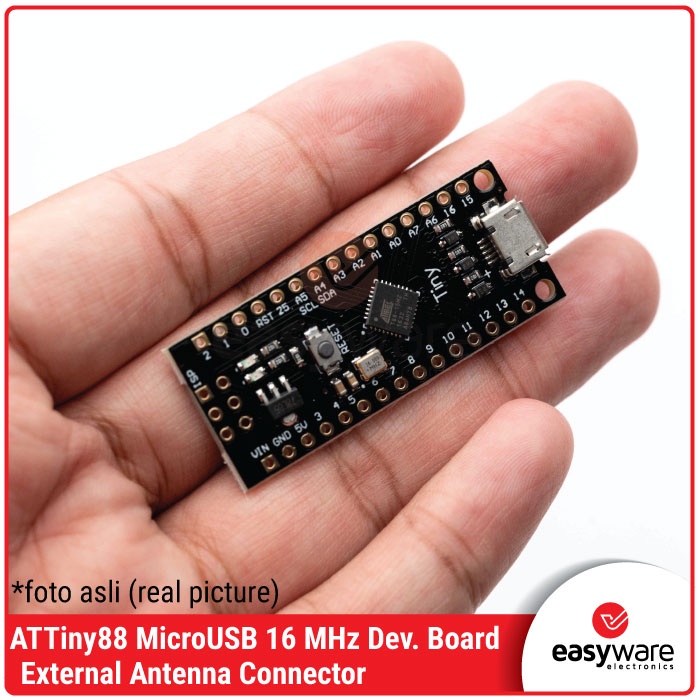

Gambar produk
