ATtiny 85 Development Board with Micro USB port

Komputer & Aksesoris > Aksesoris Desktop & Laptop > USB HUB & Card Reader > ATtiny 85 Development Board with Micro USB port
Tersedia
Periksa harganya...
Lihat tempat menjual
Toko:Java.TechLihat semua produk Komputer & Aksesoris oleh Java.Tech
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur
DeskripsiSpesifikasi

Detail ATtiny 85 Development Board with Micro USB port

ATtiny 85 Development Board with Micro USB port
Attiny85 mini Development Board
Port MicroUSB (standar Hp Android)

1. Support for the Arduino IDE 1.0+ (OSX/Win/Linux).
2. Power via USB or External Source - 5v or 7-16v (automatic selection).
3. On-board 150ma 5V Regulator.
4. Built-in USB (and serial debugging).
5. 6 I/O Pins (2 are used for USB only if your program actively communicates over USB, otherwise you can use all 6 even if you are programming via USB).
6. 8k Flash Memory (about 6k after bootloader).
7. I2C and SPI (via Universal Serial Interface).
8. PWM on 3 pins (more possible with Software PWM).
9. ADC on 4 pins.
10. Power LED and Test/Status LED .

Gambar produk

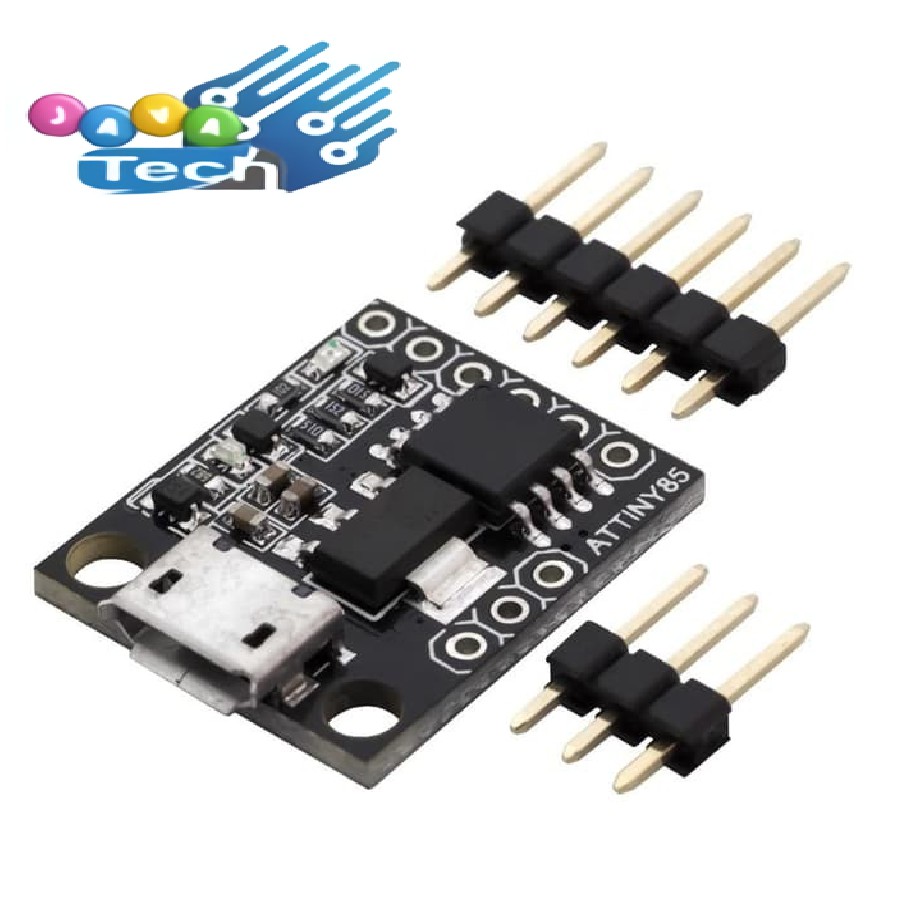

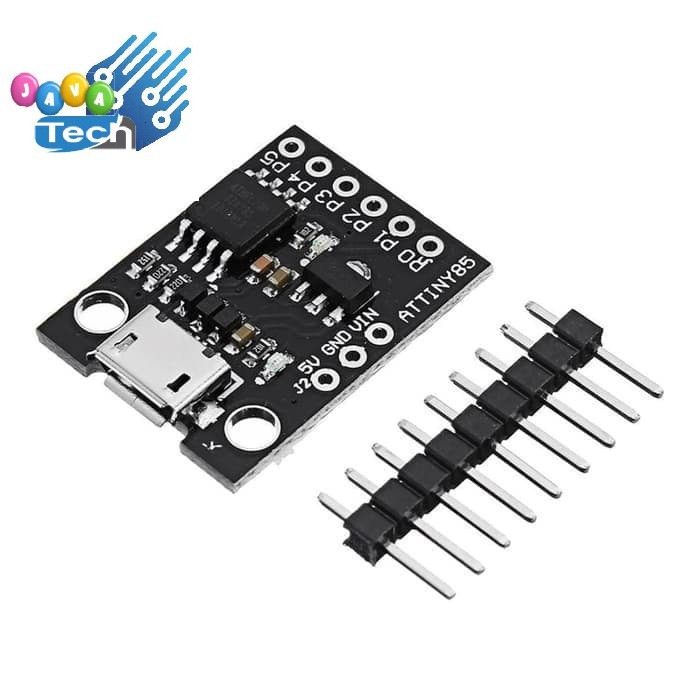

ATtiny 85 Development Board with Micro USB port
ATtiny 85 Development Board with Micro USB port
ATtiny 85 Development Board with Micro USB port
ATtiny 85 Development Board with Micro USB port
Lihat lebih banyak informasi produk
