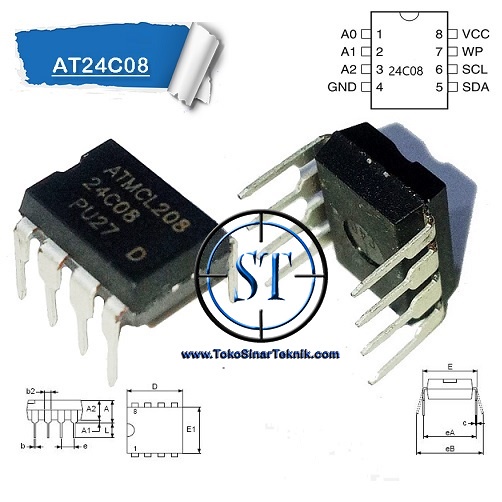

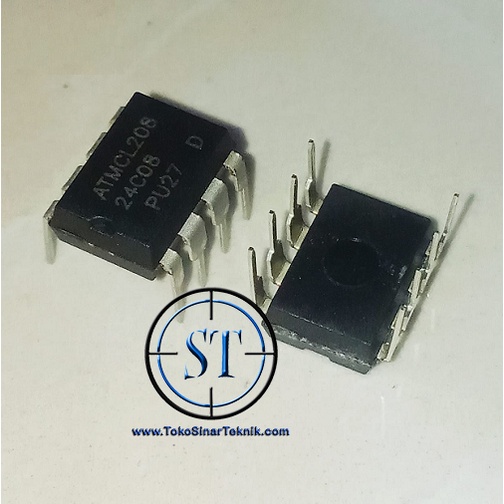

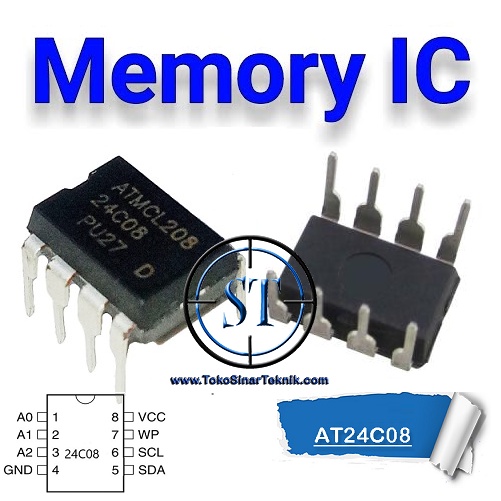

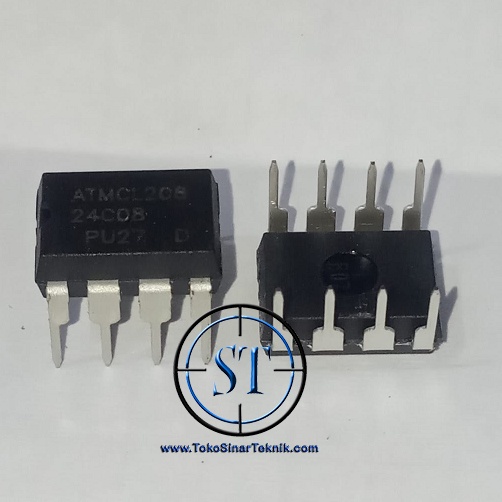

Atmel 24C08 ( 24 C08 / 24C 08 ) E-Eprom IC MEMORY DIP ATMCL208 AT24C08

Detail Atmel 24C08 ( 24 C08 / 24C 08 ) E-Eprom IC MEMORY DIP ATMCL208 AT24C08

MINIMAL PEMBELIAN 10,000 TIDAK TERMASUK ONGKIR YA
BISA DIGABUNG DENGAN PEMBELIAN BARANG LAINNYA
ORDER DI BAWAH 10,000 AKAN OTOMATIS KAMI TOLAK
MOHON MAKLUM DAN TERIMAKASIH

Harga untuk 1 Pcs,

Sesuai dengan Gambar.

Jika memory di Arduino dirasa kurang, tambahkan ic memory ini untuk mengoptimalkan kerja Arduino.

24C08 adalah ic memory dip untuk tv.pemakaiannya harus di flash sesuai merk tv

The AT24C08 provides 8192 bits of serial electrically erasable and programmable read only memory EEPROM) organized as 1024 words of 8 bits each. The device is optimized for use in many industrial and commercial applications where low power and low voltage operation are essential.

AT24C08, 8K SERIAL EEPROM: The 8K is internally organized with 4 blocks of 256 pages of 4 bytes each. Random word addressing requires a 10-bit data word address.

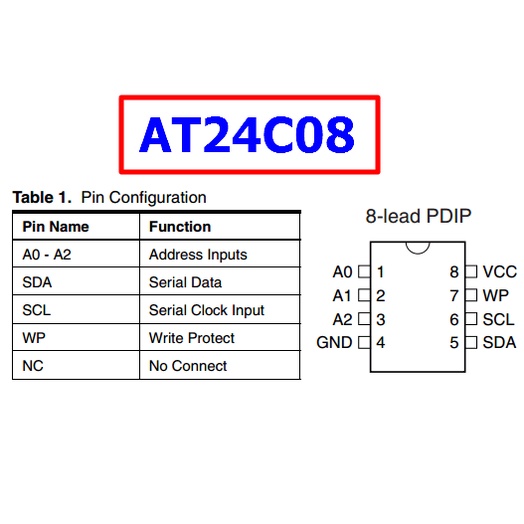

The AT24C08 only uses the A2 input for hardwire addressing and a total of two 8K devices may be addressed on a single bus system. The A0 and A1 pins are no connects.
