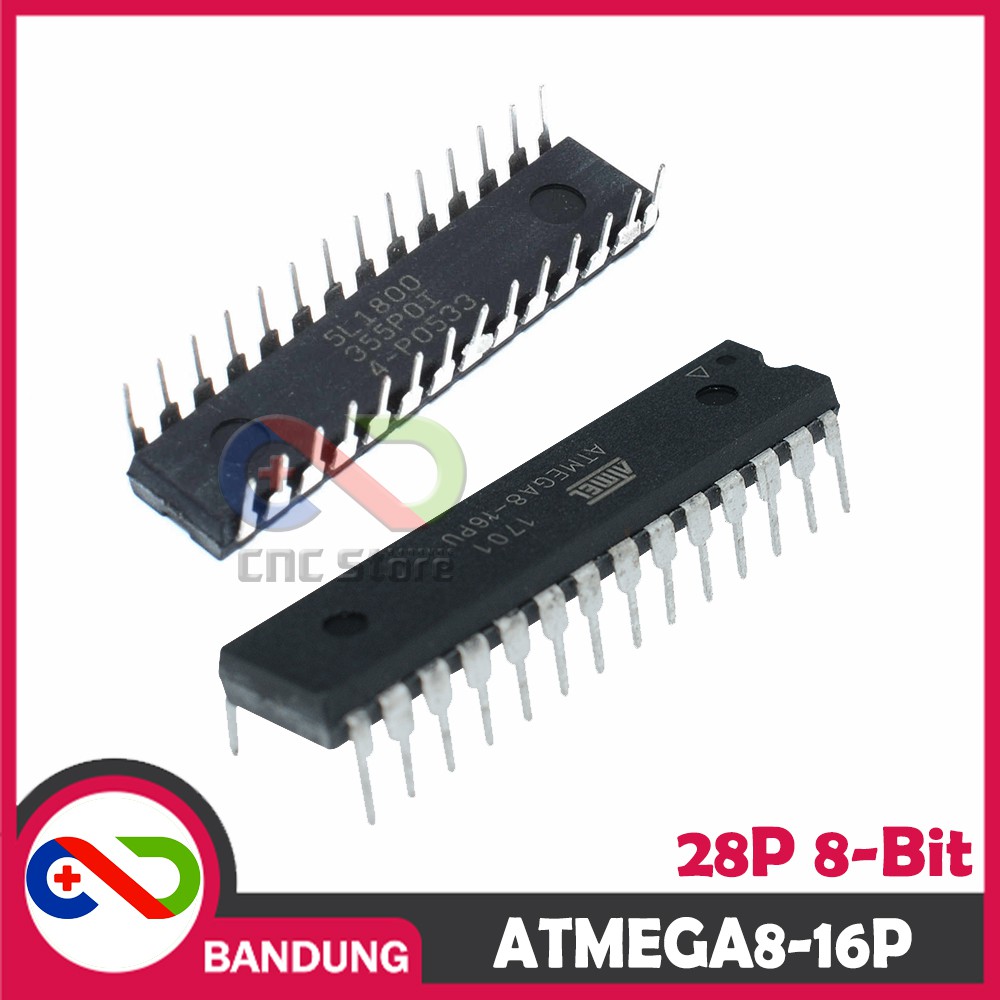

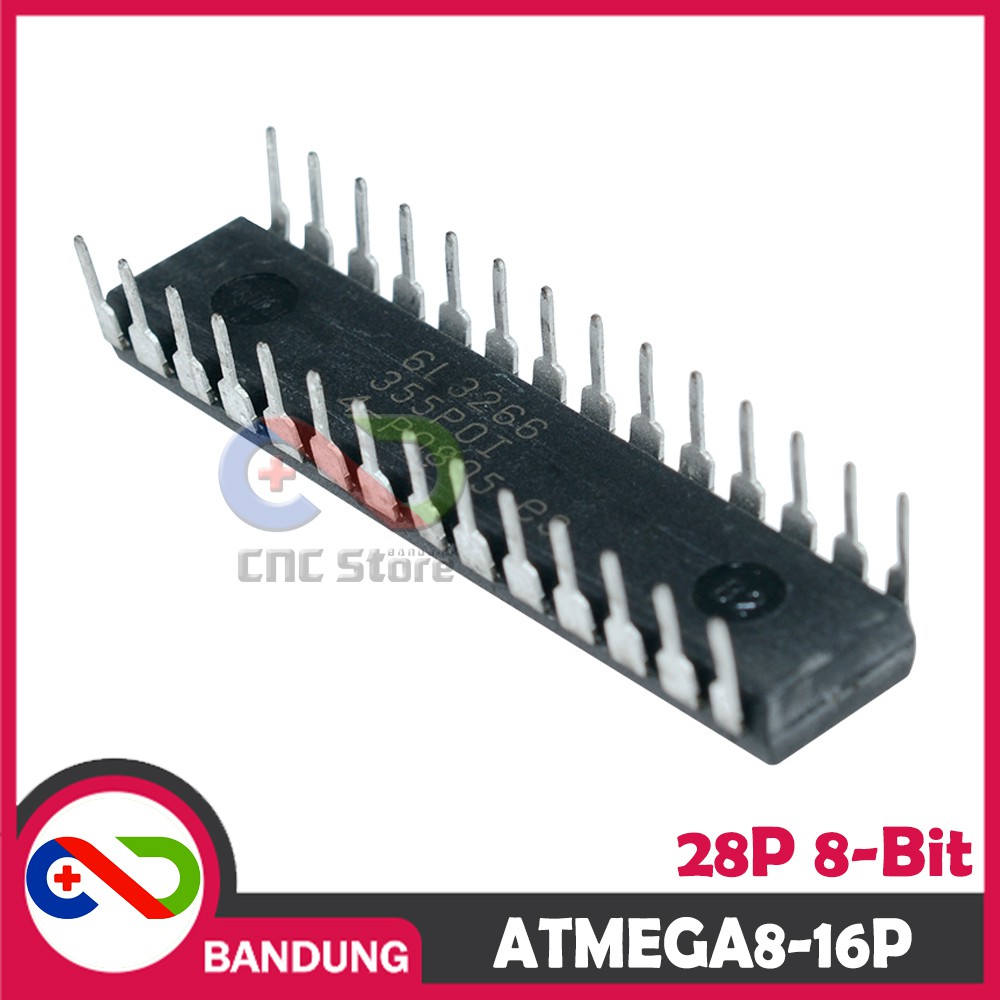

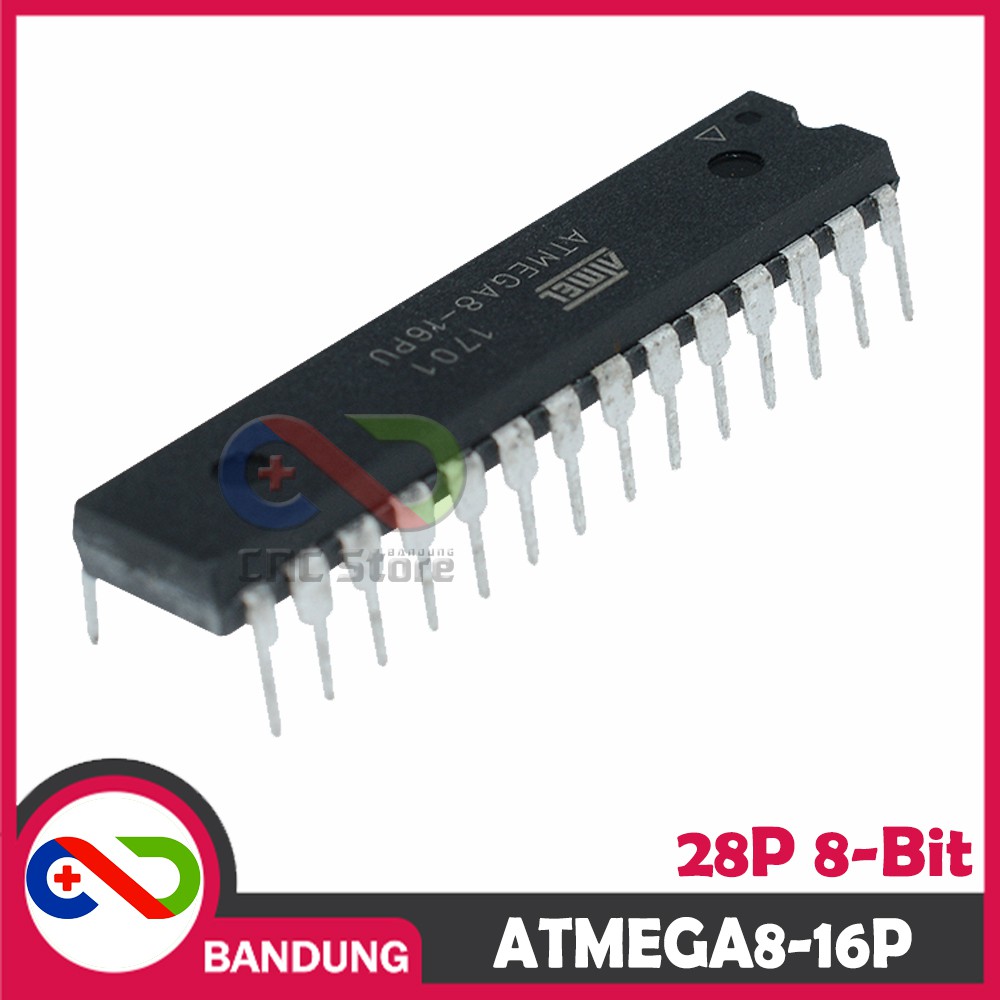

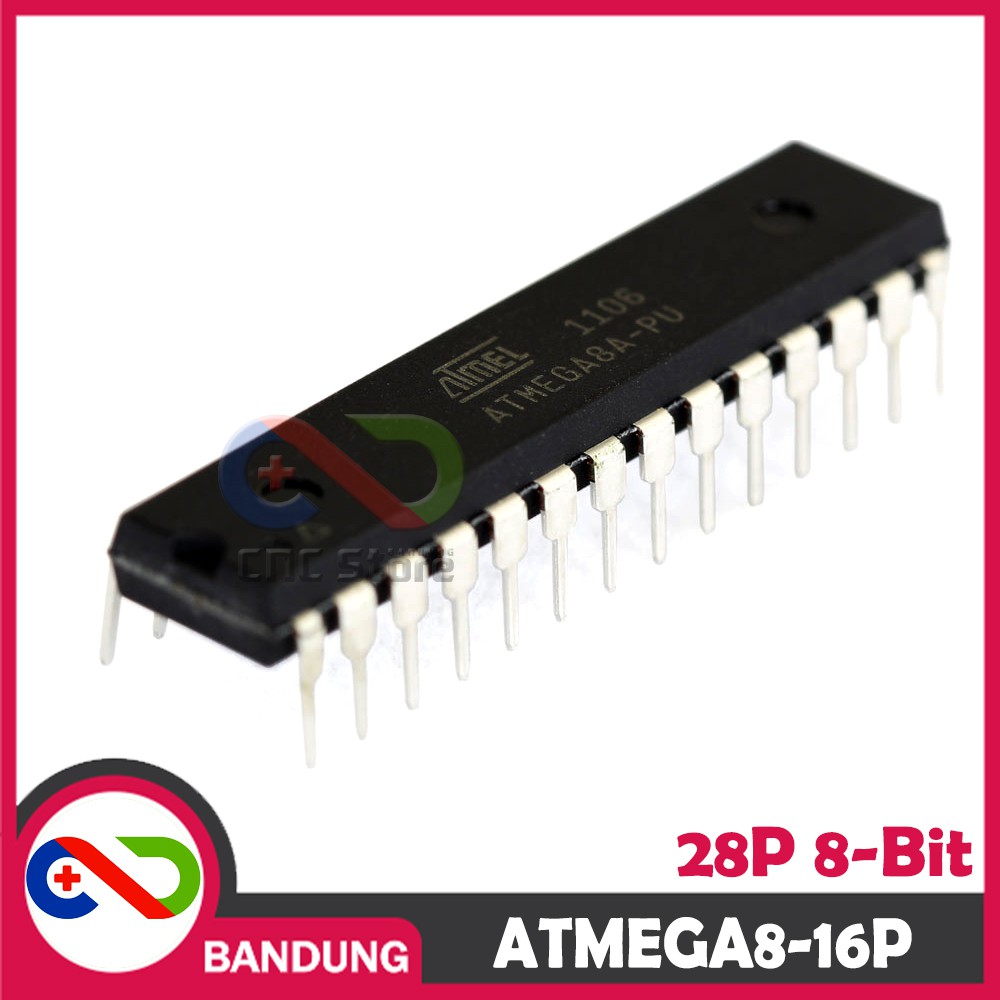

ATMEGA8-16PU ATMEGA8A-16PU ATMEGA8 ATMEGA8 MCU AVR DIP-28 DIP

Detail ATMEGA8-16PU ATMEGA8A-16PU ATMEGA8 ATMEGA8 MCU AVR DIP-28 DIP

ICS-0016
========

Deskripsi
================================
IC AVR seniornya ATmega328P-PU yang biasa di pake di UNO gan. Walau speknya lebih rendah daripada ATmega328, tapi masih relevan untuk aplikasi2 agan yang sesuai dengan harga lebih murah. IC Microcontroller CMOS 8 bit ini di desain berdasarkan arsitektur AVR RISC. Per MHz, atmega8 bisa menghasilkan kemampuan kalkulasi berkecepatan 1MIPS dengan konsumsi daya yang relatif rendah.

Fitur
================================
High-performance, Low-power AtmelAVR 8-bit Microcontroller
Advanced RISC Architecture
130 Powerful Instructions Most Single-clock Cycle Execution
32 8 General Purpose Working Registers
Fully Static Operation
Up to 16MIPS Throughput at 16MHz
On-chip 2-cycle Multiplier
High Endurance Non-volatile Memory segments
8Kbytes of In-System Self-programmable Flash program memory
512Bytes EEPROM
1Kbyte Internal SRAM
Write/Erase Cycles: 10,000 Flash/EEPROM
Data retention: 20 years at 85C/100 years at 25C(1)
Two 8-bit Timer/Counters with Separate Prescaler, one Compare Mode
One 16-bit Timer/Counter with Separate Prescaler, Compare Mode, and Capture Mode
Real Time Counter with Separate Oscillator
Three PWM Channels
8-channel ADC in TQFP and QFN/MLF package
Eight Channels 10-bit Accuracy
6-channel ADC in PDIP package
Six Channels 10-bit Accuracy

Untuk minimum system, bisa cek :
https://shopee.co.id/search?keyword=minimum%20system&shop=62956347

Paket : 1x ATMEGA8A-16PU ATMEGA8 MCU AVR DIP-28

UNTUK HARGA GROSIR CHAT US ^^

Gambar produk
