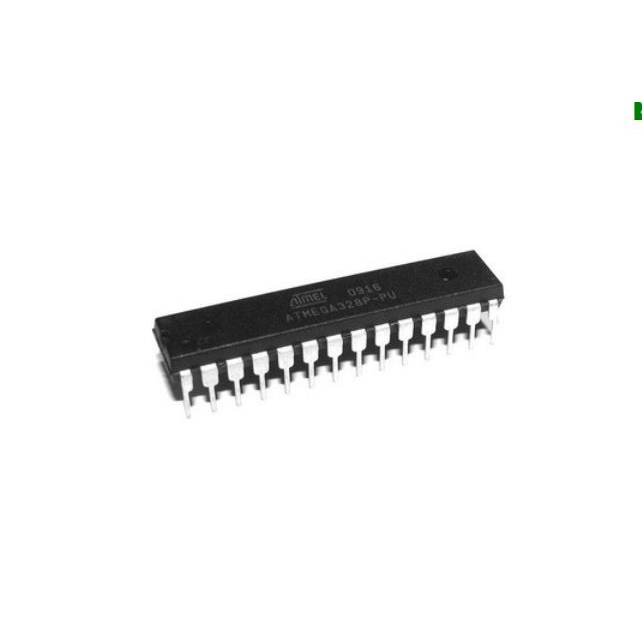

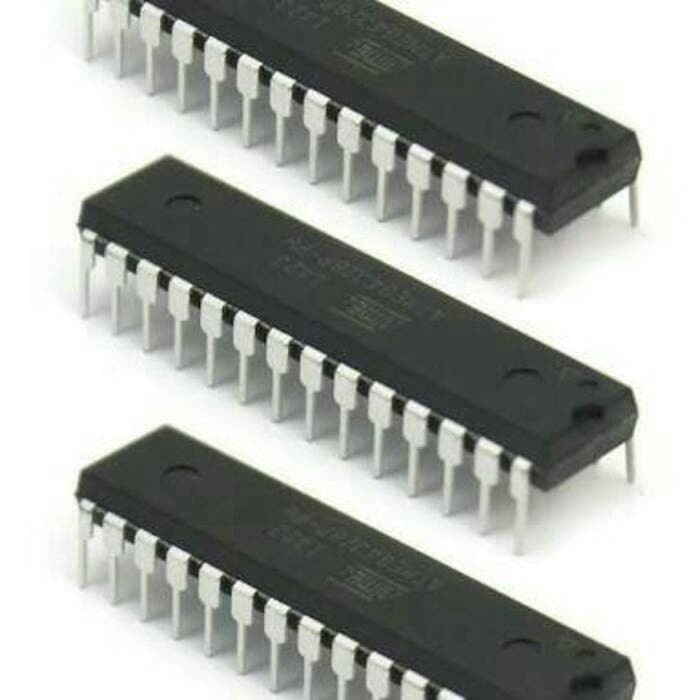

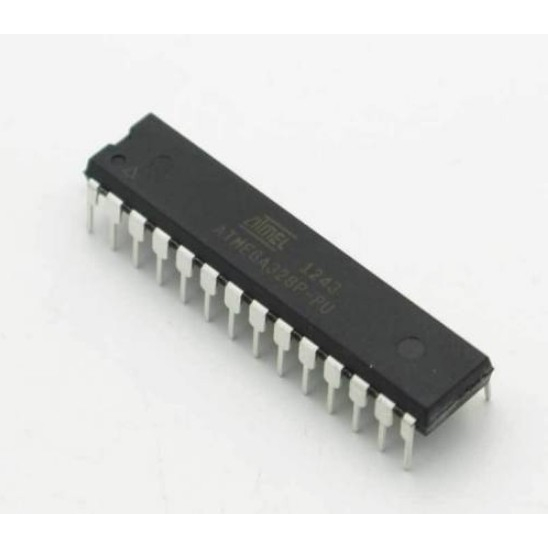

Atmega 328 atmega328 Atmel atmega328P Made in Taiwan

Detail Atmega 328 atmega328 Atmel atmega328P Made in Taiwan

Feature
High Performance, Low Power Atmel® AVR®
8-Bit Microcontroller Family Advanced RISC Architecture
– 131 Powerful Instructions
– Most Single Clock Cycle Execution
– 32 x 8 General Purpose Working Registers
– Fully Static Operation
– Up to 20 MIPS Throughput at 20MHz
– On-chip 2-cycle Multiplier
. High Endurance Non-volatile Memory Segments
– 32KBytes of In-System Self-Programmable Flash program

Memory
– 1KBytes EEPROM
– 2KBytes Internal SRAM
– Write/Erase Cycles: 10,000 Flash/100,000 EEPROM
– Data Retention: 20 years at 85°C/100 years at 25°C
. Peripheral Features
– Two 8-bit Timer/Counters with Separate Prescaler and Compare Mode
– One 16-bit Timer/Counter with Separate Prescaler, Compare Mode, and Capture Mode
– Real Time Counter with Separate Oscillator
– Six PWM Channels
– 8-channel 10-bit ADC in TQFP and QFN/MLF package
. Temperature Measurement
– 6-channel 10-bit ADC in PDIP Package
. Temperature Measurement
– Two Master/Slave SPI Serial Interface
– One Programmable Serial USART
– One Byte-oriented 2-wire Serial Interface (Philips I2C compatible)
– Programmable Watchdog Timer with Separate On-chip Oscillator
– One On-chip Analog Comparator
– Interrupt and Wake-up on Pin Change
– Six Sleep Modes: Idle, ADC Noise Reduction, Power-save, Power-down, Standby, and
Extended Standby
. I/O and Packages
– 23 Programmable I/O Lines
– 28-pin PDIP, 32-lead TQFP, 28-pad QFN/MLF and 32-pad QFN/MLF
. Operating Voltage:
– 1.8 - 5.5V
. Temperature Range:
– -40°C to 105°C
