ATEN VS-92A 2 PORT VGA SPLITTER 350MHZ

Detail ATEN VS-92A 2 PORT VGA SPLITTER 350MHZ

ATEN VS-92A 2 PORT VGA SPLITTER 350MHZ

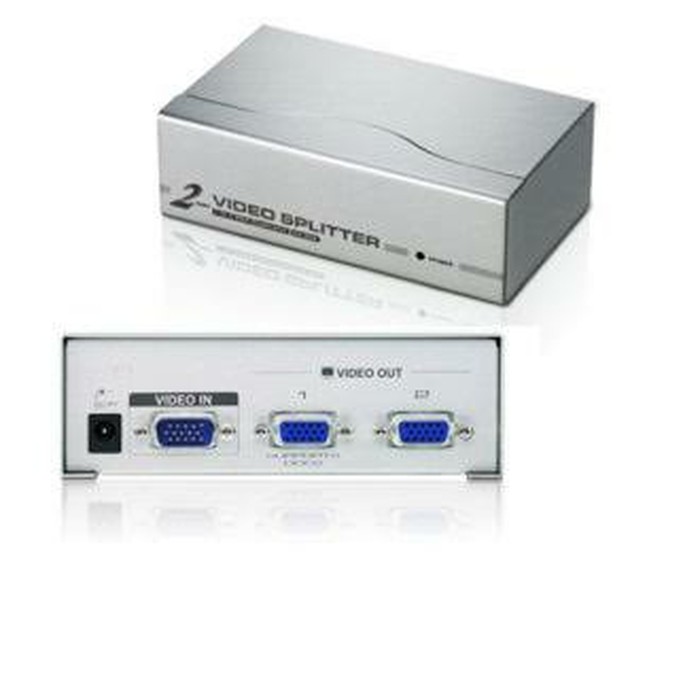

The VS92A is a video splitter that not only duplicates the video signal from any VGA, XGA, SVGA, UXGA, or multisync monitor to two outputs, but also boosts the video signal over a distance of up to 65 meters.
Cascadable to support up to 8 displays, and offering bandwidth up to 350 MHz, the VS92A is ideal for broadcasting and enhancing video information to the public, monitoring your work environments from safe locations, or offering superior video for company or classroom training.

Patent NO. : TW 152473 (Taiwan) , US 6,119,148 (USA) , CN ZL 98218061.6 (China) , DE 29814640.1 (German)

Features

One video input to 2 video outputs
Cascadable to 3 levels - provides up to 8 video signals
Supports 350 MHz bandwidth
Long-distance transmission - up to 65 m
Superior video quality - 1920 x 1440@60Hz
DDC, DDC2, DDC2B Compatible (Port 1 only)
Supports VGA, XGA, SVGA, UXGA,WUXGA and multisync monitors
All metal casing


2-fold VGA distributor
Video bandwidth: 350MHz (-3dB)
Resolution: max. 1920x1440
supports DDC, DDC2, DDC2B on output port 1
1x 15 pin. HD plug (input)
2x 15 pin. HD socket (outputs)
with wall power supply
Dimensions (LxDxH): 130x75x45mm

Berat : 700 gram belom packing paket

Package Content

1x 2-Port Video Splitter
1x Power Adapter 9V 300mA
1x User Guide
