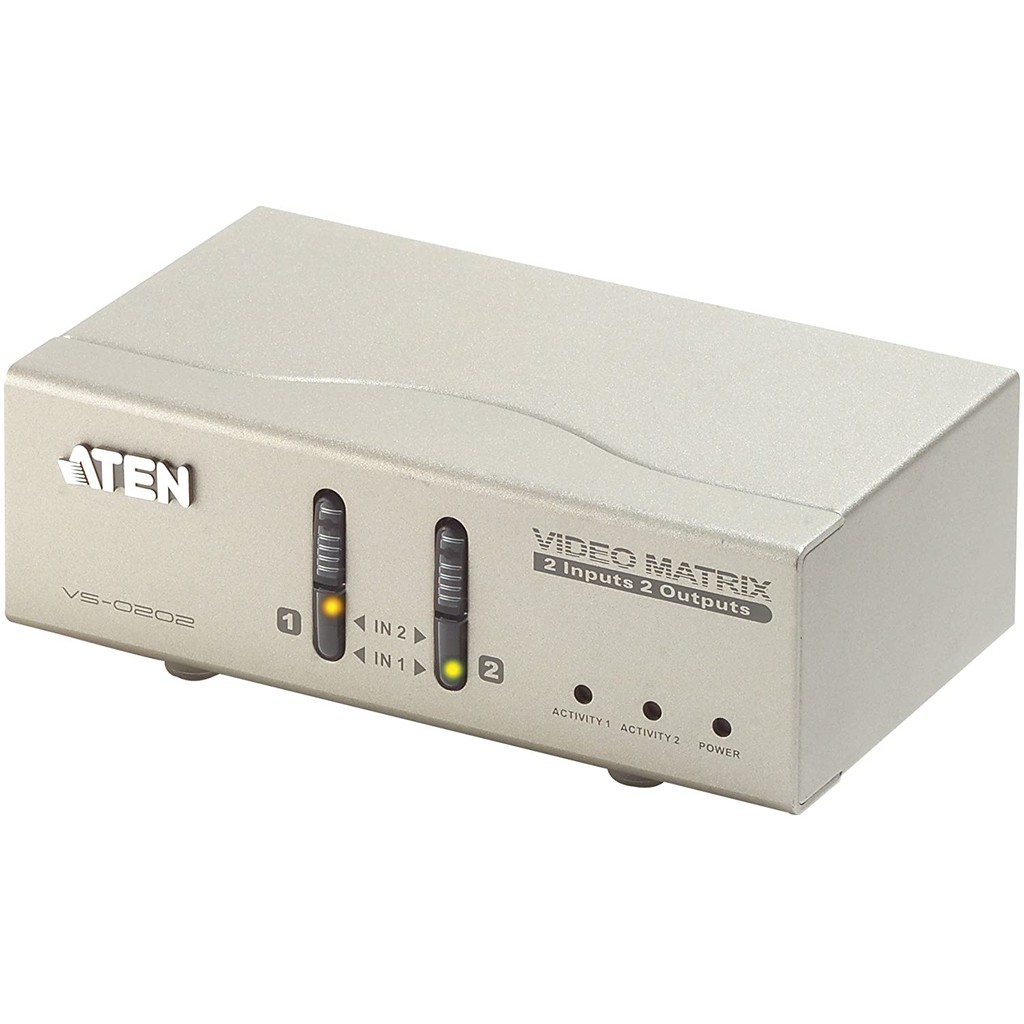

ATEN VS-0202

Detail ATEN VS-0202

Deskripsi ATEN VGA MATRIX SWITCH 2-2 VS-0202
2-Port Video Matrix Switch (2 inputs 2 outputs)

The VS0202 Video Matrix Switch allows video and audio from 2 computers to be routed to 2 monitors,projectors and speakers.
Ideal for presentations and applications where information from multiple computers is being delivered to multiple destinations.

ATEN's new VS0202, Video Matrix Switch, integrates a video switch and a video splitter, and a speaker together.
When the regular video splitter can only distribute a single video signal to multi-monitors and the regular video switch just shows a single video signal at one time,VS0202 allows video and audio signals from 2 separate computers to be routed to 2 monitors, projectors, and speakers independently.

Features :

Each of the 2 video outs can toggle between Source 1 and Source 2 using front panel push buttons.
Audio enabled.
Duplicate and enhance video signals to up to 65 m (max.) *
Expandable: Cascade to ATEN's video splitters to support hundreds of video displays.
With up to 300 MHz Video Bandwidth.
OS Support: Windows 2000, Windows XP, Linux, Mac and Sun

* Video content sent over very long distance using a VGA cable might result in slight degradation of the video signal and quality.

Specifications :

Display Connections : 2
Computer Connections : 2
Port Selection : Push button

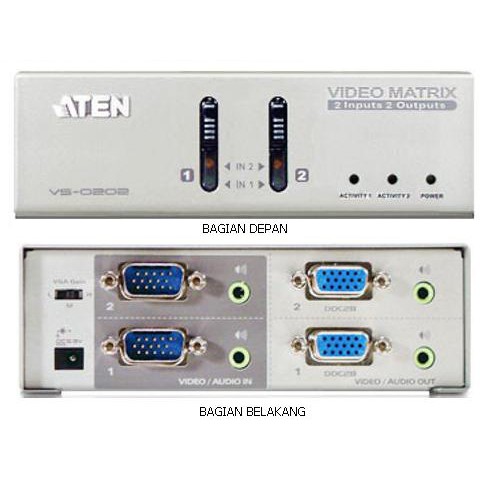

Connectors
Input
Video : 2 x HDB-15 Male (Blue)
Audio : 2 x Mini Stereo Jack Female (Green)
Output
Video : 2 x HDB-15 Female (Blue)
Audio : 2 x Mini Stereo Jack Female (Green)
Power : 1 x DC Jack (Black)

LEDs

Power : 1 (Blue)
Activity / Source : 2 (Green)
Input :
1 : 2 (Green)
2 : 2 (Orange)

Package Contents

1x 2-Port Video Matrix Switch
1x VGA m-f / Audio m-m Cable (1.8m)
1x Power Adapter
1x User Instructions

Gambar produk
