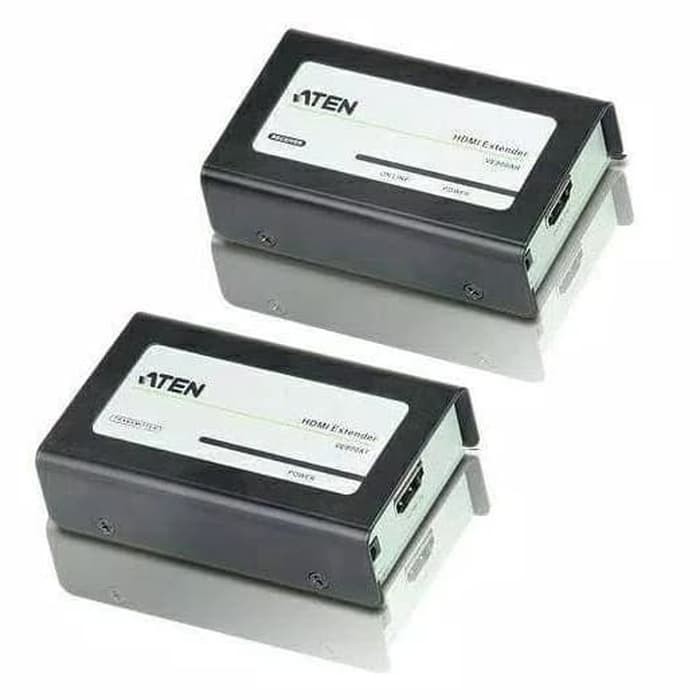

ATEN HDMI EXTENDER VE800A-AT-G

Detail ATEN HDMI EXTENDER VE800A-AT-G

Deskripsi ATEN HDMI EXTENDER VE800A-AT-G
ATEN VE800A HDMI EXTENDER 60M via UTP CABLE
Garansi 1 Tahun

Overview

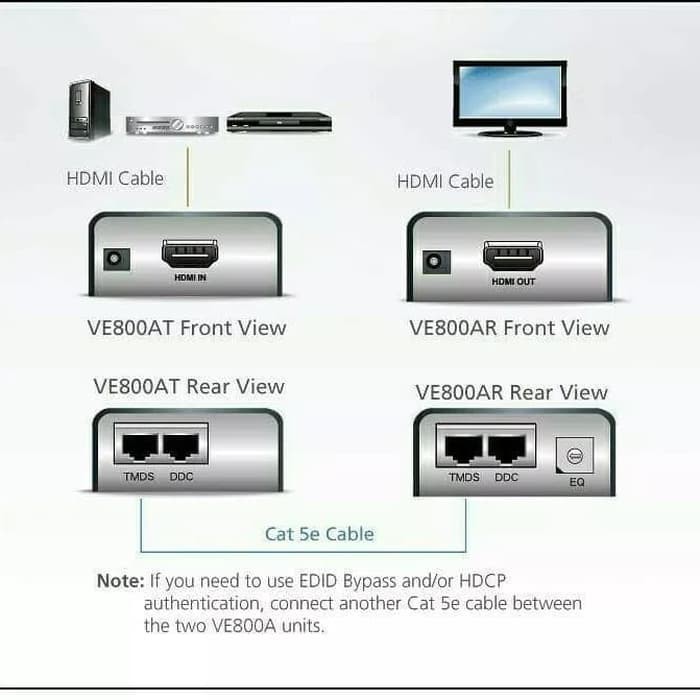

The VE800A HDMI Extender extends your HDMI display up to 60 m away from your HDMI source using one Cat 5e cable. ATENs VE800A incorporates new technology that allows the A/V signals to be transmitted over a single Cat 5e cable. DDC port is provided for the ability to use the displays EDID by simply connecting another Cat 5e cable. The VE800A supports HDMI features such as 3D and Deep Color to give you the picture perfect viewing experience you desire.

Features :

Extends the distance between HDMI source and HDMI display
Uses Cat 5e cable to connect the local and remote units
8 segment equalization adjustment switch optimizes display quality
Features ATEN EDID technology that allows transmission over one Cat 5e cable
Extend 1080p by 40m; extend 1080i (HDTV) by 60m
Superior video quality 1920 x 1200, up to 1080p
HDMI (3D, Deep Color)
Supports Dolby True HD and DTS HD Master Audio
DDC compatible
HDCP 1.1 Compatible
Compatible with all ATEN HDMI switches and splitters


Specifications :

Connectors
Display
HDMI Out VE800AR 1 x HDMI Type A Female (Black)
HDMI In VE800AT 1 x HDMI Type A Female (Black)
Unit to Unit
VE800AT 2 x RJ-45 Female
VE800AR 2 x RJ-45 Female
Power Jack
VE800AT 1 x DC Jack
VE800AR 1 x DC Jack
LEDs
Power
VE800AR : 1 (Orange)
VE800AR : 1 (Orange)
On Line
VE800AT : N/A
VE800AR : 1 (Green)
Video :
Max. Data Rate : 6.75 Gbps (2.25 Gbps Per Lane)
Max. Pixel Clock : 225 MHz
Compliance :
HDMI (3D, Deep Color)

HDCP Compatible
Max resolutions / Distance Up to 1080p@40m; 1080i@60m

Package Contents
1x VE800AT (Transmitter / Sender Unit) HDMI Extender
1x VE800AR (Remote / Receiver Unit) HDMI Extender with EQ setting
2x Power Adapters
1x Wall Mount Kit
1x User Instructions
