Aten CS72E 2 Port PS/2 VGA Slim KVM Switch

Detail Aten CS72E 2 Port PS/2 VGA Slim KVM Switch

Package Contents:
1x 2 Port PS/2 KVM Switch
2x Custom KVM Cable (VGA, PS/2; 1.2m/4ft)
1x Console Adapter Cable (50cm)
1x User Instructions

Features:
One PS/2 console controls 2 computers.
Compact, modern case for convenient attractive placement.
Custom connector layout.
Power on detection - automatically switches to the first powered on port.

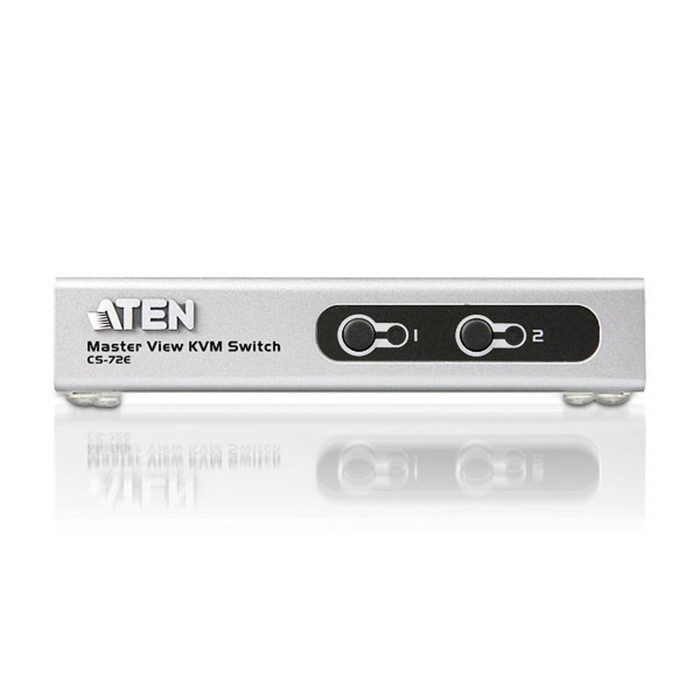

Computer selection via front panel pushbuttons and hotkeys.
Superior video quality - up to 2048 x 1536; DDC2B.
Supports Microsoft IntelliMouse and the scrolling wheel on most mice.
Auto Scan function to monitor computer operation.
Non-powered.
OS Support:Windows 2000, Windows XP, Windows Vista, LINUX and FreeBSD

Specifications:
Computer Connections 2
Port Selection Hotkey, Pushbutton

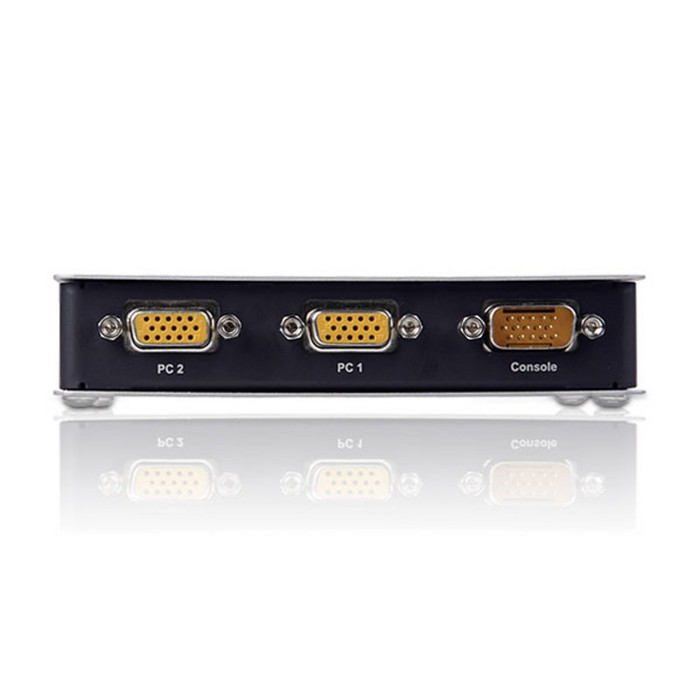

Connectors
Console Ports 1 x SPHD-15 Male (Yellow)
KVM Ports 2 x SPHD-15 Female (Yellow)
Power 1 x DC Jack
Switches
Ports 2 x Pushbutton
LEDs
Selected 2 (Green)
Emulation
Keyboard / Mouse PS/2
Video 2048 x 1536 @ 60Hz; DDC2B
Scan Interval 5 seconds
Power Consumption DC 9V, 0.9W
Environmental
Operating Temperature 0-50''C
Storage Temperature -20-60''C
Humidity 0~80% RH, Non-condensing
Physical Properties
Housing Metal
Weight 0.32 kg ( 0.7 lb )
Dimensions (L x W x H) 12.50 x 8.15 x 2.50 cm
(4.92 x 3.21 x 0.98 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
