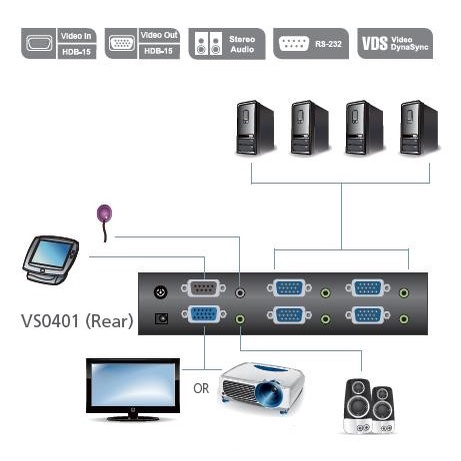

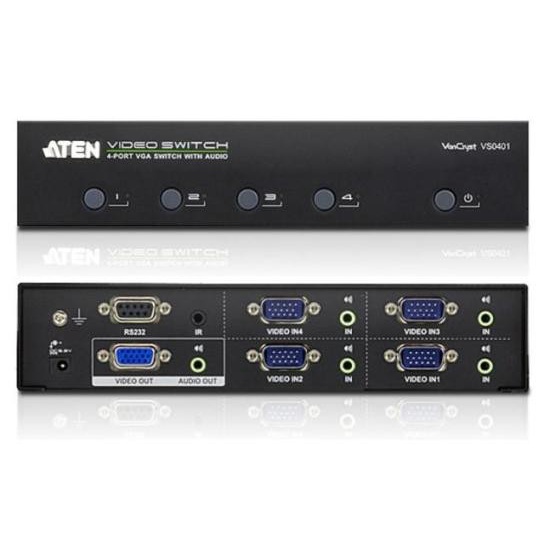

The VS0401 4-Port VGA Switch with Audio allows you to connect four audio/video source computers to a single monitor or projector with full audio and quickly switch between the devices for use.
VS0401 built-in bi-directional RS-232 serial port for high-end system control, and advanced RS-232 control. With the ability to use high-end serial control devices via RS-232 commands allows the VS0401 to be controlled by secondary systems with advanced functions such as; port switching, auto switching, front panel push button lock, and Power on Detection.
The VS0401 is perfect for the meeting room, media centers, class rooms, or any presentation environment requiring multiple audio/video sources to be accessed on a single display.
Features :
Displays the video output of four computers on a single monitor or projector Quick and easy switching between VGA/Audio sources via front panel pushbuttons, RS-232, or IR remote control Superior video quality up to 1920 x 1440 Long-distance transmission up to 65 m * Supports VGA, SVGA, UXGA, WUXGA and multisync monitors Video DynaSync Exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports Built-in bi-directional RS-232 serial port for high-end system control ** RS-232 Control: Power On Detection if one VGA source is powered off, the VS0401 will automatically switch to the next powered-on source Auto Switching sets the priority for auto switching to a connected port Pushbutton Lock locks use of the front panel pushbuttons Supports stereo audio
website aten tentang produk ATEN VS-0401
Package of Contents :
1 x VS 0401 video switcher 4 port with audio 1 x Power Adapter 1 x User Instructions
