Detail AT89C4051 AT89C4051-24PU 8-bit Microcontroller with 4K Bytes Flash

Features
Compatible with MCS51 Products
4K Bytes of Reprogrammable Flash Memory
Endurance: 1,000 Write/Erase Cycles
2.7V to 6V Operating Range Fully Static Operation: 0 Hz to 24 MHz
Two-level Program Memory Lock
128 x 8-bit Internal RAM
15 Programmable I/O Lines
Two 16-bit Timer/Counters
Six Interrupt Sources
Programmable Serial UART Channel
Direct LED Drive Outputs
On-chip Analog Comparator
Low-power Idle and Power-down Modes

Gambar produk

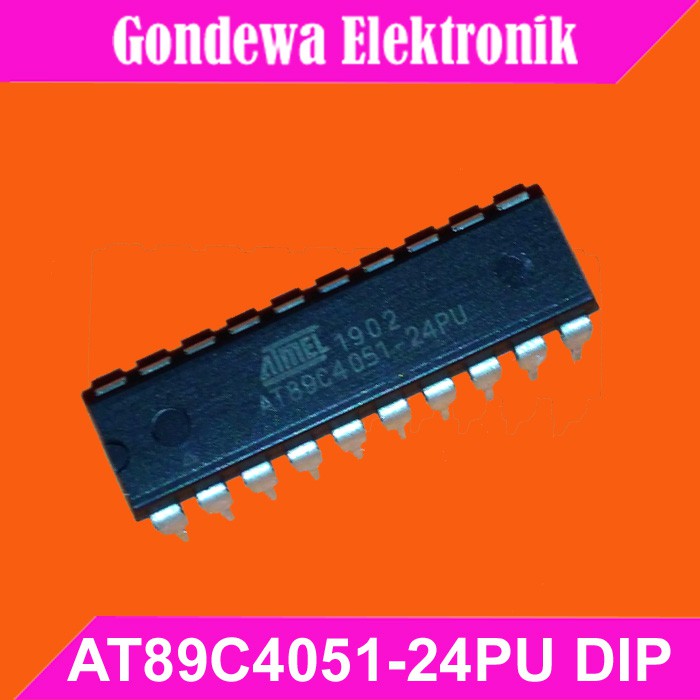

AT89C4051 AT89C4051-24PU 8-bit Microcontroller with 4K Bytes Flash
