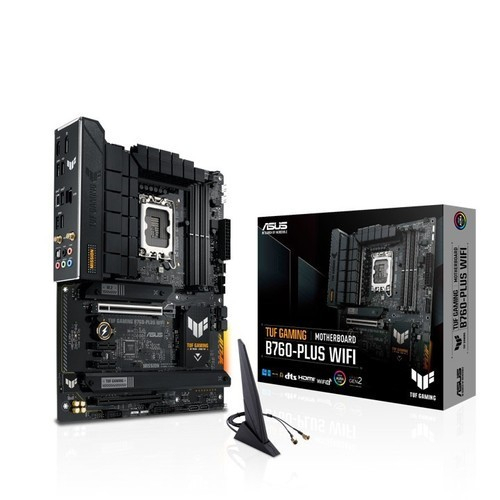

ASUS TUF GAMING B760-PLUS WIFI | Intel B760 LGA 1700 DDR5 ATX

Detail ASUS TUF GAMING B760-PLUS WIFI | Intel B760 LGA 1700 DDR5 ATX

𝗦𝗽𝗲𝗰𝗶𝗳𝗶𝗰𝗮𝘁𝗶𝗼𝗻𝘀 :

Model
- TUF GAMING B760-PLUS WIFI

CPU
- Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
- Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

Memory
- 4 x DIMM, Max. 128GB, DDR5 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*
- Dual Channel Memory Architecture
- Supports Intel® Extreme Memory Profile (XMP)

Graphics
- 1 x DisplayPort**
- 1 x HDMITM port***

Expansion Slots
Intel® 13th & 12th Gen Processors
- 1 x PCIe 5.0 x16 slot
Intel® B760 Chipset
- 1 x PCIe 3.0 x16 slot (supports x4 mode)*
- 2 x PCIe 3.0 x1 slots*

Storage
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
- M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
- M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
- M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
- 4 x SATA 6Gb/s ports

Ethernet
- 1 x Realtek 2.5Gb Ethernet
- TUF LANGuard

Wireless & Bluetooth
- Wi-Fi 6
- 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
- Supports 2.4/5GHz frequency band
- Bluetooth® v5.2*

Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback

Operating System
- Windows® 11, Windows® 10 64-bit

Form Factor
- ATX Form Factor
- 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
