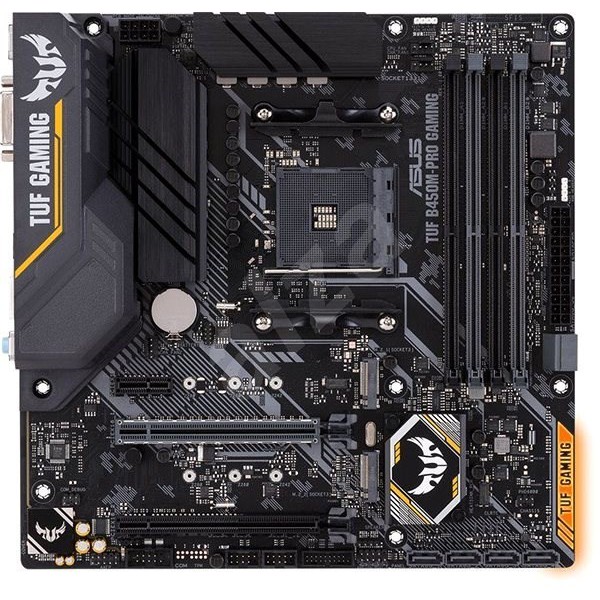

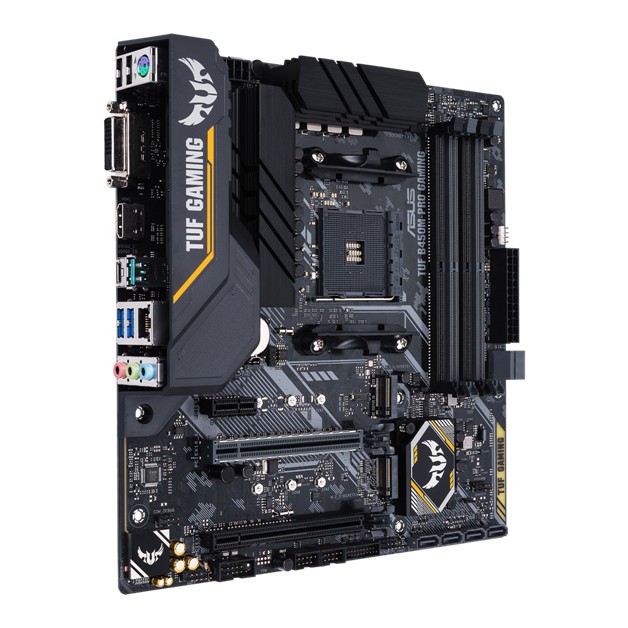

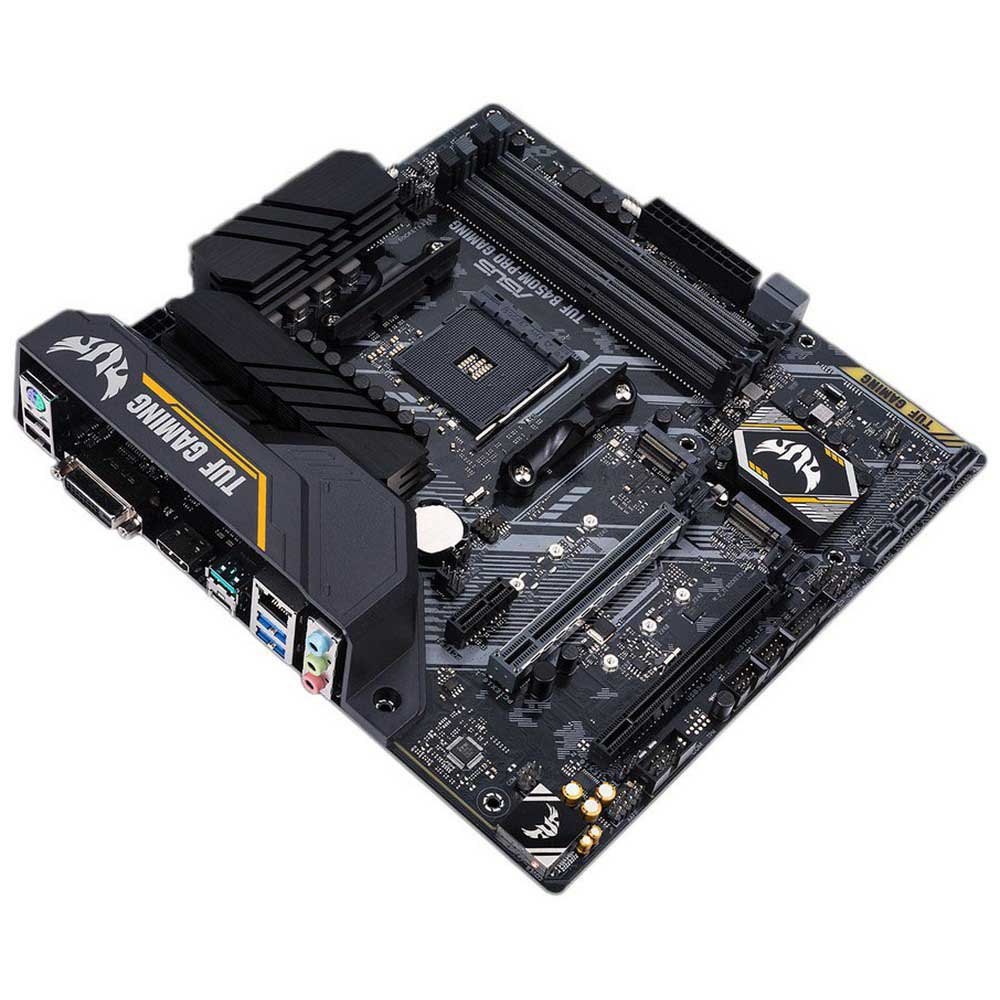

Asus TUF B450M-PRO Gaming (Socket AM4)

Detail Asus TUF B450M-PRO Gaming (Socket AM4)

AMD B450 mATX gaming motherboard with Aura Sync RGB LED lighting, DDR4 3200MHz support, 32Gbps M.2, HDMI 2.0b, Type C and native USB 3.1 Gen 2.

-GPU Temperature Sensing & Fan Xpert 2+: Ensures every fan achieves the best balance of cooling performance and acoustics

-TUF Protection: SafeSlot, ESD Guards, DDR4 overvoltage protection, Digi+ VRM, and stainless-steel back I/O for long-term reliability

-Military-grade TUF Components: TUF LANGuard, TUF Chokes, TUF Capacitors, and TUF MOSFETs for maximum durability

-Exclusive DTS® Custom audio: Delivers positional cues to stereo headphones, helping you to pinpoint enemies and action

-Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear

Memori
AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors
4 x DIMM, Max. 64GB, DDR4 3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU.

Grafis
Integrated in the AMD Ryzen™ with Radeon™ Vega Graphics Processors
Dukungan output Multi-VGA : HDMI/DVI-D port
- Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz
- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz

Dukungan Multi-GPU
Supports AMD CrossFireX™ Technology

Slot Ekspansi
AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors
1 x PCIe 3.0/2.0 x16 (x16 mode)
AMD Ryzen™ with Radeon™ Vega Graphics Processor
1 x PCIe 3.0/2.0 x16 (x8 mode)
AMD B450 chipset
1 x PCIe 2.0 x16 (max at x4 mode)
1 x PCIe 2.0 x1

Storage
AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors :
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*1
2 x SATA 6Gb/s port(s)
Support Raid 0, 1, 10
AMD B450 chipset :
4 x SATA 6Gb/s port(s)
Support Raid 0, 1, 10

LAN
Realtek® RTL8111H
TUF LANGuard
