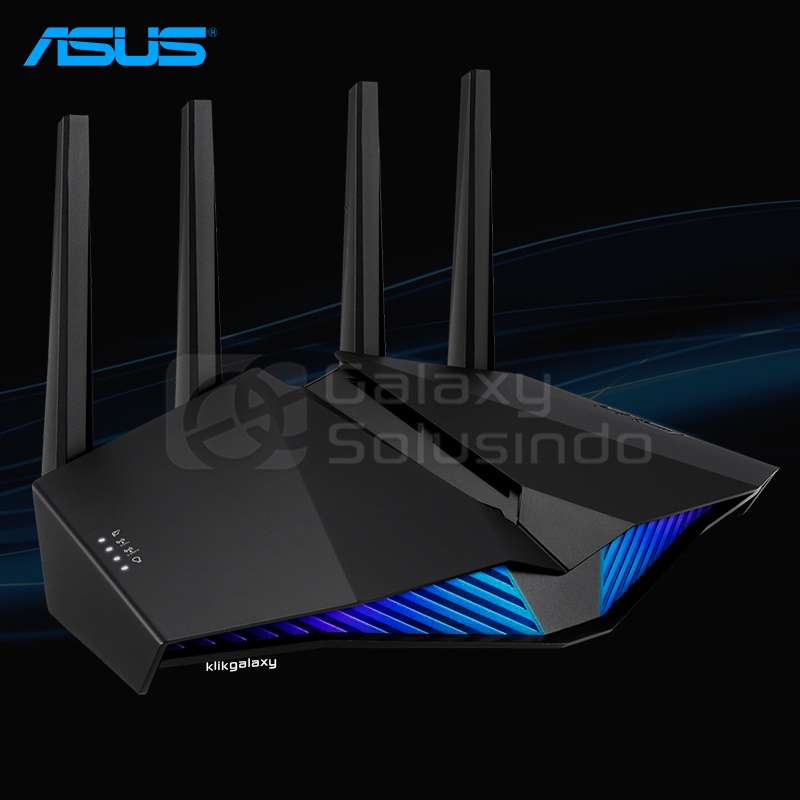

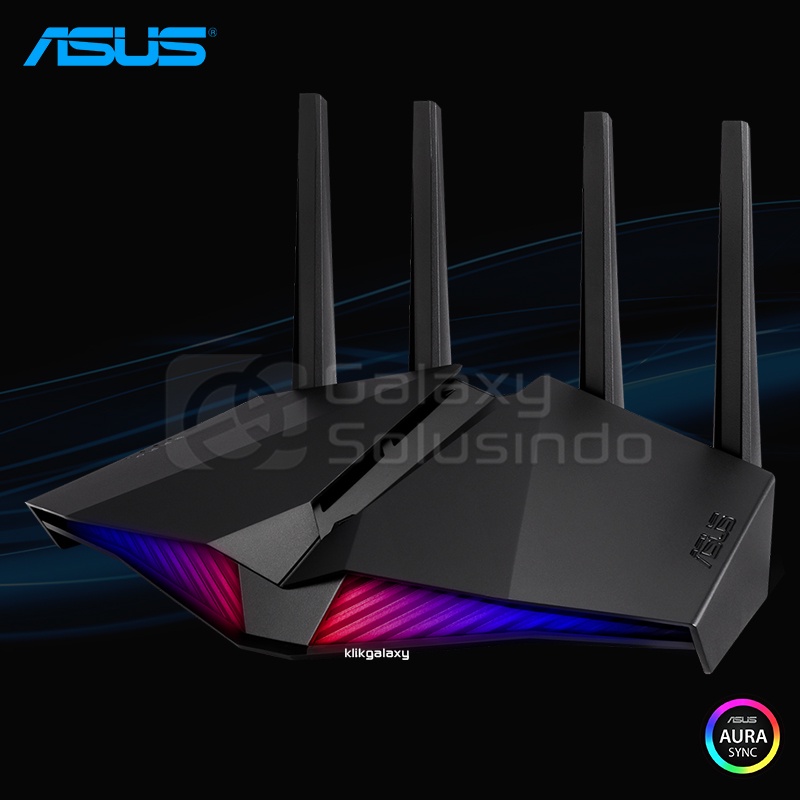

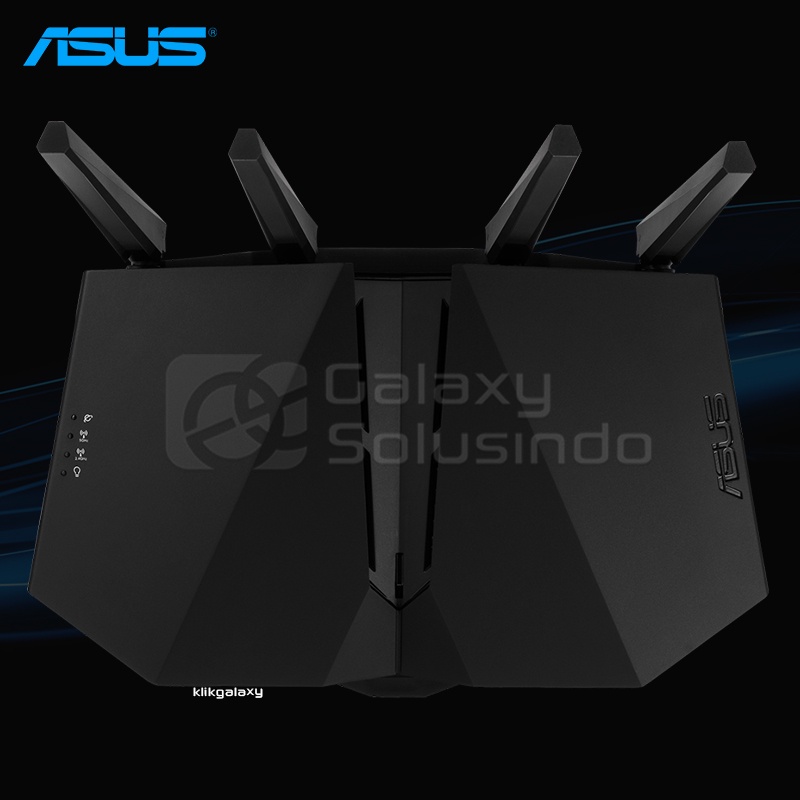

ASUS RT-AX82U AX5400 Dual Band WiFi 6 Gaming Router with AiMesh

Detail ASUS RT-AX82U AX5400 Dual Band WiFi 6 Gaming Router with AiMesh

SPECIFICATION:
Model Name
RT-AX82U
Network Standard
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
IPv4
IPv6
Product Segment
AX5400 ultimate AX performance : 574+4804 Mbps
AX technology
Yes
Data Rate
802.11a : up to 54 Mbps
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
802.11n : up to 300 Mbps
802.11ac (1024QAM) : up to 4333 Mbps
802.11ax (2.4GHz) : up to 574 Mbps
802.11ax (5GHz) : up to 4804 Mbps
Antenna
External antenna x 4
Transmit/Receive
2.4GHz 2x2
5GHz 4x4
Processor
1.5 GHz tri-core processor
Memory
256 MB Flash
512 MB RAM
Boosts speed
OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80/160 MHz bandwidth
Operating Frequency
2.4G Hz / 5 GHz

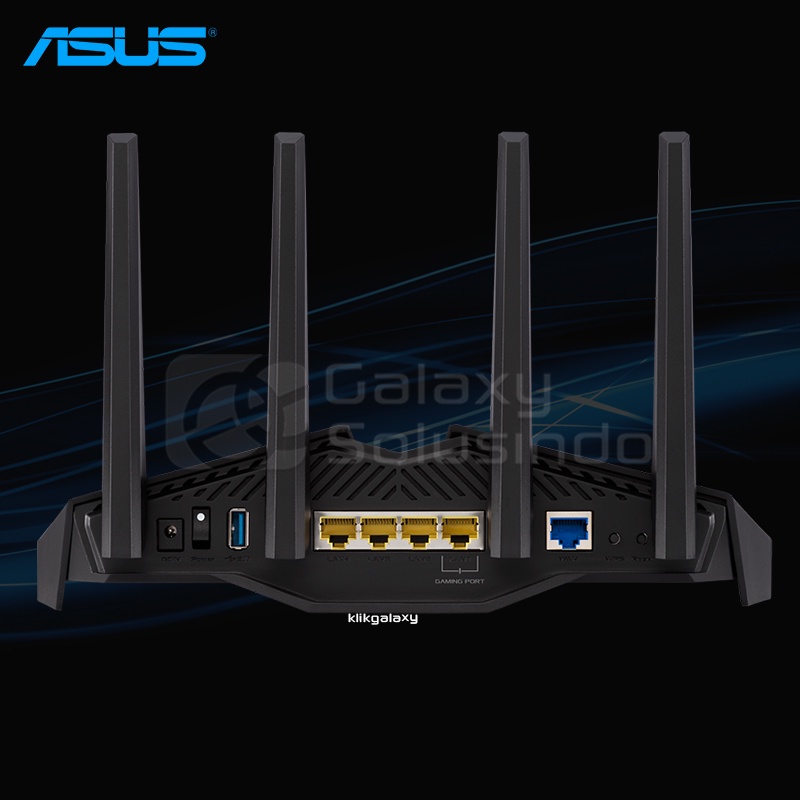

Ports
RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 4
USB 3.2 Gen 1 x 1
Button
WPS Button, Reset Button, Power Switch, LED on/off
LED Indicator
Power x 1
2.4G x 1
5G x 1
WAN x 1
Power Supply
AC Input : 110V~240V(50~60Hz)
DC Output : 19 V with max. 1.75 A current
Package content
RT-AX82U Router
RJ-45 cable
Power adapter
Warranty card
Quick start guide
Product Weight (g)
740 g
AiMesh
Yes
Router APP
Yes
Game
Yes
Alexa
Yes
AiProtection
AiProtection Pro
Yes
Parental Control
Yes
Traffic Control
Adaptive QoS
Maximum Bandwidth limiter rule : 32
Traditional QoS
Maximum Traditional QoS rule : 32
Traffic analysis period : Daily, Weekly, Monthly
Yes
Wireless
Wi-Fi Encryption : WPA3-Personal, WPA2-Personal, WPA-Personal, WPA-Enterprise , WPA2-Enterprise , WPS support
Maximum Guest Network rule : 2.4GHz x3, 5GHz x3
Guest Network Connection time limit
Maximum MAC filters : 64
Yes
WAN
Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
WAN Aggregation
Maximum port forwarding rule : 64
Maximum port triggering rule : 32
Yes
NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, PPPoE relay
LAN
LAN Link Aggregation
Yes
Maximum manually assign IP address rule : 64
VPN
VPN Client OVPN
VPN Server OVPN
Yes
USB application
File System : HFS+, NTFS, vFAT, ext2, ext3, ext4
Yes
Administration
Operating mode : Wireless router mode
Access point mode
Media bridge mode
Repeater mode
AiMesh node mode
Operating system : ASUSWRT
Maximum Firewall keyword filter : 64
Maximum Firewall network service filter : 32
Maximum Firewall URL filter : 64
Yes
