Product Segment AC1200 enhanced AC performance : 300+867 Mbps
Coverage Medium homes
Data Rate 802.11n : up to 300 Mbps 802.11ac : up to 867 Mbps
Antenna External 5 dBi antenna x 4
Transmit/Receive MIMO technology 2.4 GHz 2 x 2 5 GHz 2 x 2
Processor BCM47189+ BCM43217
Memory 16 MB Flash 128 MB RAM
Operating Frequency 2.4 GHz / 5 GHz
Encryption 64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK, WPA-Enterprise , WPA2-Enterprise , WPS support Firewall & Access Control URL Blocking MAC Filter URL Filter Enable LAN to WAN Filter Parental Control Web filter Management UPnP, IGMP v1/v2/v3, DNS Proxy, DHCP, NTP Client, DDNS, Port Trigger, Virtual Server, DMZ, System Event Log WAN Connection Type Internet connection type : Automatic IP, Static IP, PPPoE(MPPE supported), PPTP, L2TP Multicast Proxy support Multicast Rate Setting support

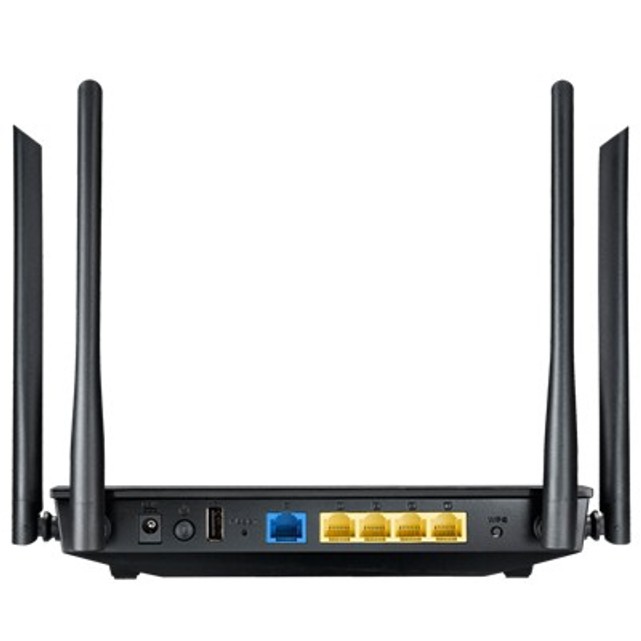

Ports RJ45 for 10/100/1000 BaseT for WAN x 1, RJ45 for 10/100/1000 BaseT for LAN x 4 USB 2.0 x 1 Button WPS Button, Reset Button, Power Button
Features SmartQoS - WMM - User definable rules for IP/MAC/Port - Upload and download bandwidth management - ACK/SYN/FIN/RST/ICMP with highest priority
Parental Control Guest Network : 2.4 GHz x 3, 5 GHz x 3 VPN client : PPTP client, L2TP client Enhanced media server (AiPlayer app compatible) - Image : Jpeg - Audio : mp3, wma, wav, pcm, mp4, lpcm, ogg - Video : asf, avi, divx, mpeg, mpg, ts, vob, wmv, mkv, mov 3G/4G data sharing
LED Indicator Power x 1 LAN x 4 Wi-Fi x 2 WAN x 1 USB x 1
