ASUS ROG STRIX Z790-F GAMING WIFI | Intel Z790 LGA 1700 DDR5 ATX

Detail ASUS ROG STRIX Z790-F GAMING WIFI | Intel Z790 LGA 1700 DDR5 ATX

𝗦𝗽𝗲𝗰𝗶𝗳𝗶𝗰𝗮𝘁𝗶𝗼𝗻𝘀 :

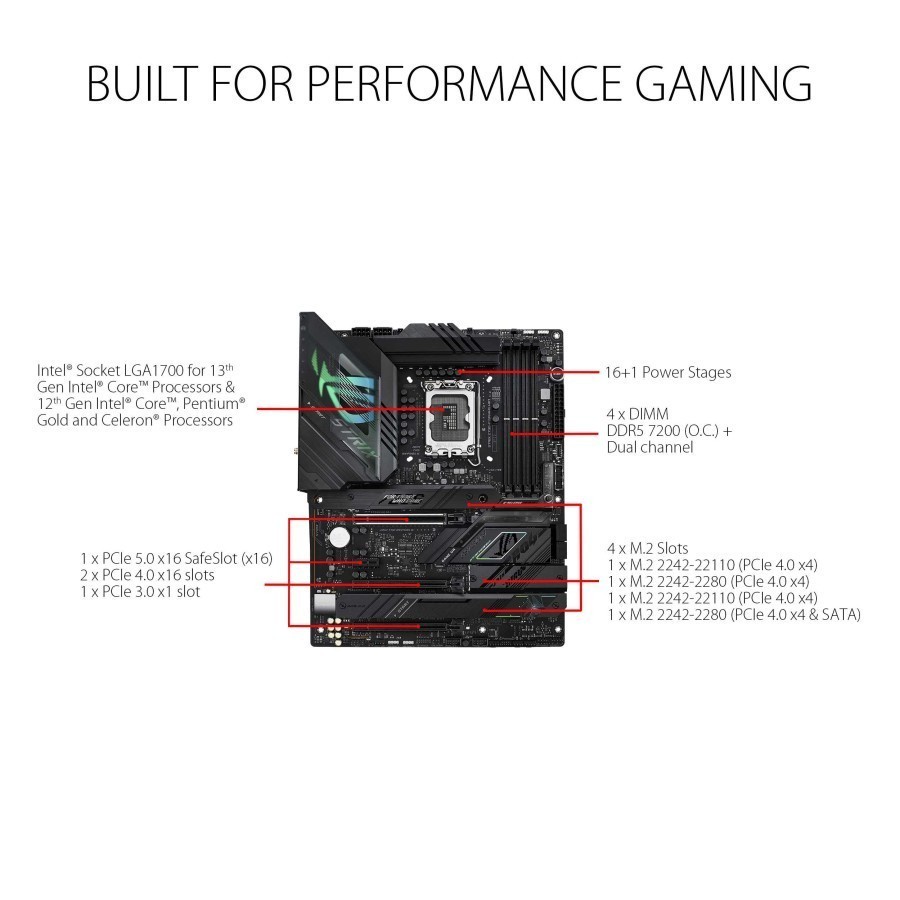

𝗖𝗣𝗨
- Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
- Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

𝗠𝗲𝗺𝗼𝗿𝘆
- 4 x DIMM, Max. 128GB, DDR5
7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800
Non-ECC, Un-buffered Memory*
- Dual Channel Memory Architecture
- Supports Intel® Extreme Memory Profile (XMP)
- OptiMem II

𝗚𝗿𝗮𝗽𝗵𝗶𝗰𝘀
- 1 x DisplayPort**
- 1 x HDMI® port***

𝗘𝘅𝗽𝗮𝗻𝘀𝗶𝗼𝗻 𝗦𝗹𝗼𝘁𝘀
- Intel® 13th & 12th Gen Processors*
1 x PCIe 5.0 x16 slot

- Intel® Z790 Chipset
2 x PCIe 4.0 x16 slots (support x4 mode)
1 x PCIe 3.0 x1 slot

𝗙𝗼𝗿𝗺 𝗙𝗮𝗰𝘁𝗼𝗿
- ATX Form Factor
- 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

𝗦𝘁𝗼𝗿𝗮𝗴𝗲
- Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*
- Intel® 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

- Intel® Z790 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports

𝗘𝘁𝗵𝗲𝗿𝗻𝗲𝘁
- 1 x Intel® 2.5Gb Ethernet
- ASUS LANGuard

𝗪𝗶𝗿𝗲𝗹𝗲𝘀𝘀 & 𝗕𝗹𝘂𝗲𝘁𝗼𝗼𝘁𝗵
- Wi-Fi 6
- 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
- Supports 2.4/5GHz frequency band
- Bluetooth® v5.2
