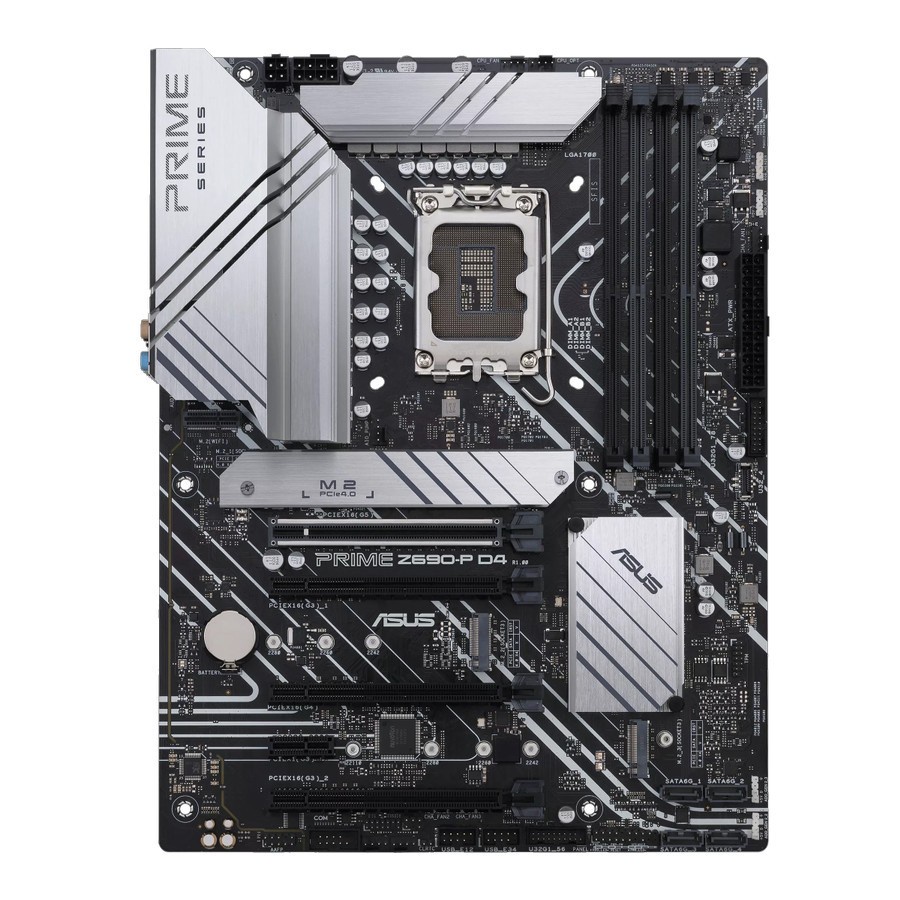

ASUS PRIME Z690-P D4 | INTEL LGA 1700 | DDR4
Merek: Asus | Lihat selengkapnya produk Komputer & Aksesoris dari AsusDeskripsi singkat
Komputer & Aksesoris > Komponen Desktop & Laptop > Motherboard > ASUS PRIME Z690-P D4 | INTEL LGA 1700 | DDR4
- Pengiriman Ekspres
- Barang yang diperiksa
- Bayar di tempat berlaku
- Kualitas, Prestise
- Pengembalian produk
- Dukung pembuatan faktur
Produk Terkait
Detail ASUS PRIME Z690-P D4 | INTEL LGA 1700 | DDR4
CPU- Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Chipset
- Intel Z690
Memory
4 x DIMM, Max. 128GB, DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules
Graphics
- 1 x DisplayPort**
- 1 x HDMI®***
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
Expansion Slots
- Intel® 12th Gen Processors*
* 1 x PCIe 5.0/4.0/3.0 x16 slot
- Intel® Z690 Chipset**
* 1 x PCIe 4.0/3.0 x16 slot (supports x4 mode)
* 2 x PCIe 3.0 x16 slots (support x4 mode)
* 1 x PCIe 3.0 x1 slot
Storage
- Intel® 12th Gen Processors
* M.2_1 slot (Key M), type 2242/2260/2280/22110
# Intel® 12th Gen processors support PCIe 4.0 x4 mode.
- Intel® Z690 Chipset**
* M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
* M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
* 4 x SATA 6Gb/s ports
Ethernet
- 1 x Realtek 2.5Gb Ethernet
Form Factor
- ATX (30.5 cm x 24.4 cm)
Gambar produk
