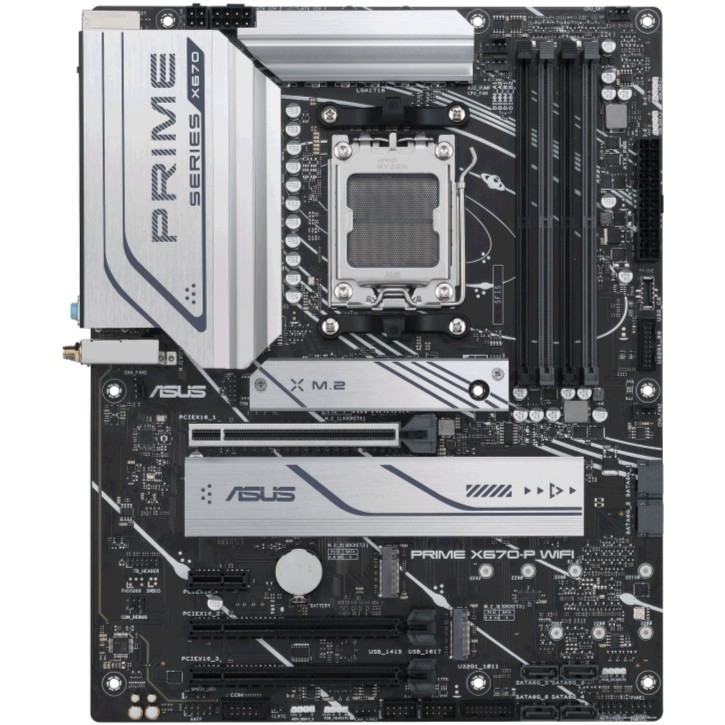

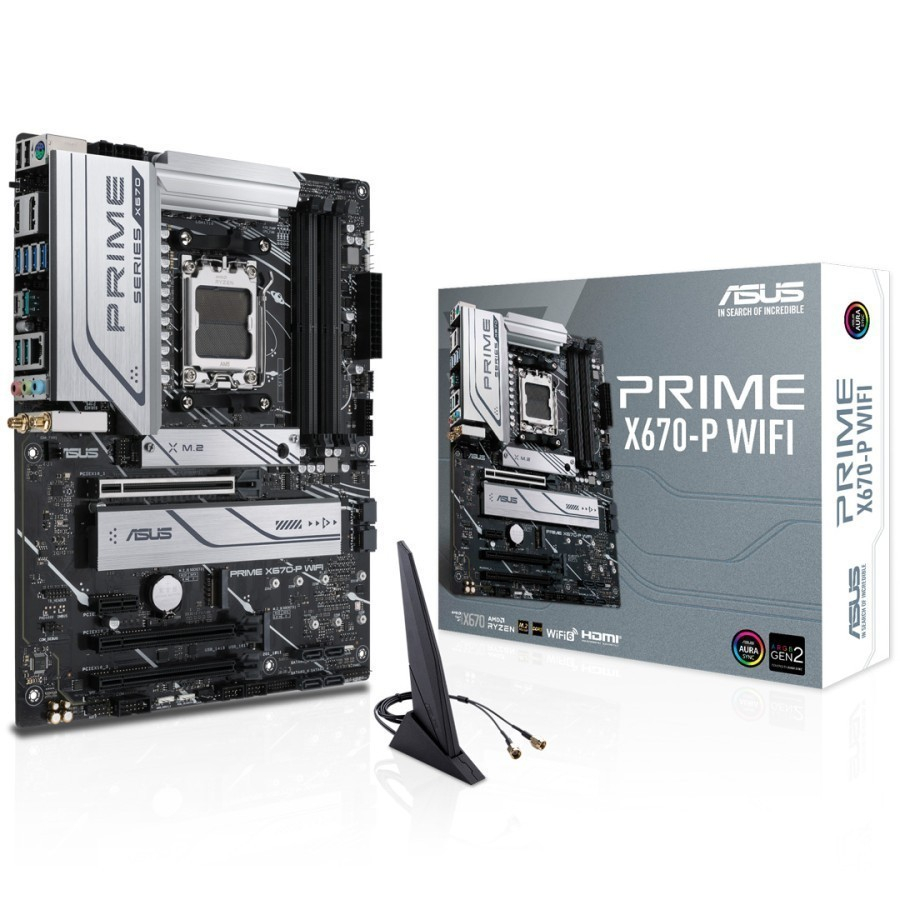

ASUS PRIME X670-P WIFI-CSM | AMD AM5 X670 Gaming Motherboard

Detail ASUS PRIME X670-P WIFI-CSM | AMD AM5 X670 Gaming Motherboard

Garansi Resmi 3 Tahun

Silakan Komfirmasi Persediaan Stok Barang Sebelum Melakukan pembelian
Trimaksih...


ASUS PRIME X670-P WIFI-CSM - [Socket AM5, AMD X670, DDR5, ATX]

• AMD AM5 socket: Ready for AMD Ryzen™ 7000 Series Desktop Processors
• Enhanced power solution: 12+2 DrMOS, 6-layer PCB, ProCool connectors, alloy chokes and durable capacitors for stable power delivery
• Ultrafast connectivity: Wi-Fi 6, M.2 PCIe 5.0, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2x2 Type-C®, front panel USB 3.2 Gen 1 Type-C®, USB4® support
• ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
• Comprehensive cooling: Large VRM heatsinks, M.2 heatsink, Passive Chipset Heatsink, hybrid fan headers and Fan Xpert 4 with AI Cooling II
• Outshine RGB Aura Effect: Stylish edge lighting design, Addressable Gen 2 headers and Aura RGB headers support


CPU
AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors*
* Refer to www.asus.com for CPU support list.
Chipset
AMD X670 Chipset
Memory
4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC and Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
OptiMem II
* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function.
Graphics
1 x DisplayPort**
1 x HDMI® port***
* Graphics specifications may vary between CPU types.
** Supports max. 8K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI® 2.1.
Expansion Slots
AMD Ryzen™ 7000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x16 mode)
AMD X670 Chipset
2 x PCIe 4.0 x16 slots (support x4 mode)
1 x PCIe 3.0 x1 slot**
* Please chec
