Asus PRIME H510M-K (Intel LGA 1200, Gen 11, Gen 10)

Detail Asus PRIME H510M-K (Intel LGA 1200, Gen 11, Gen 10)

Garansi Resmi 3 Tahun

Motherboard micro-ATX Intel® H510 (LGA 1200) dengan PCIe® 4.0, slot M.2 32Gpbs, Intel® 1 Gb Ethernet, HDMI, D-Sub, USB 3.2 Gen 1 Type-A, SATA 6 Gbps, header COM, dan header RGB
Soket Intel® LGA 1200: Siap untuk prosesor Intel® generasi ke-11 dan ke-10
Konektivitas ultra cepat: PCIe 4.0, slot M.2 32Gpbs, Intel® 1 Gb Ethernet, dan USB 3.2 Gen 1
Pendinginan menyeluruh: PCH heatsink dan Fan Xpert
5X Protection III: Beberapa pengaman perangkat keras untuk perlindungan menyeluruh

CPU : Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors, Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset H510
Memory DDR4 Dual Channel, Max Memory Size:64GB
DDR4 3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory*
Supports Intel® Extreme Memory Profile (XMP)
* 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.
* 11th Gen Intel® processors support 2933/2800/2666/2400/2133 natively.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.

Graphics 1 x D-Sub, 1 x HDMI 2.0***
* Graphics specifications may vary between CPU types.
** Only Intel® 11th Gen processors support HDMI™ 2.0 with max. resolution of 4K@60Hz, others will only support HDMI™ 1.4 with max. resolution of 4K@30Hz. Please refer to www.intel.com for any updates.

Storage
Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
4 x SATA 6Gb/s ports

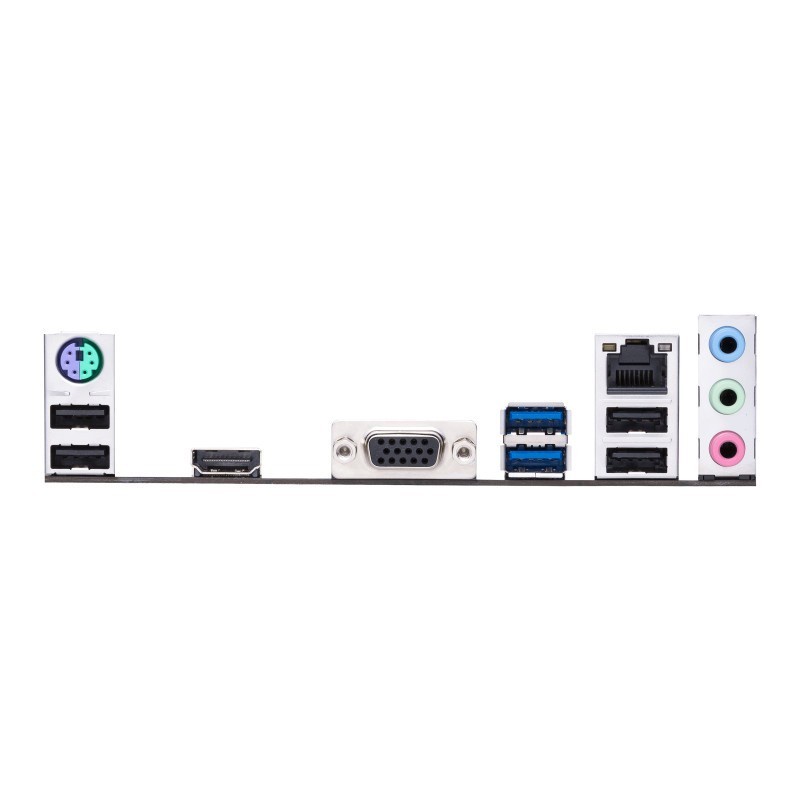

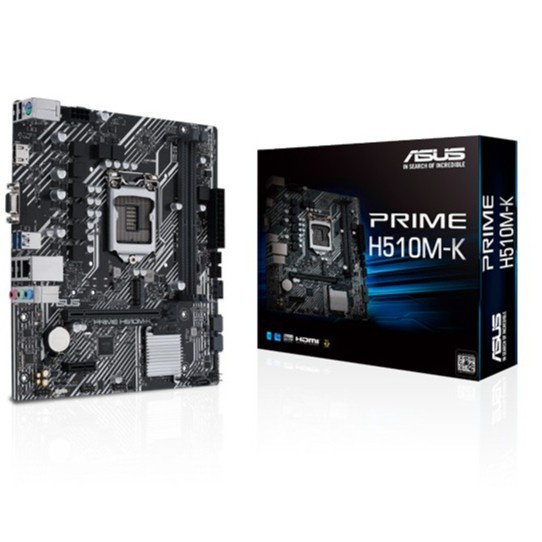

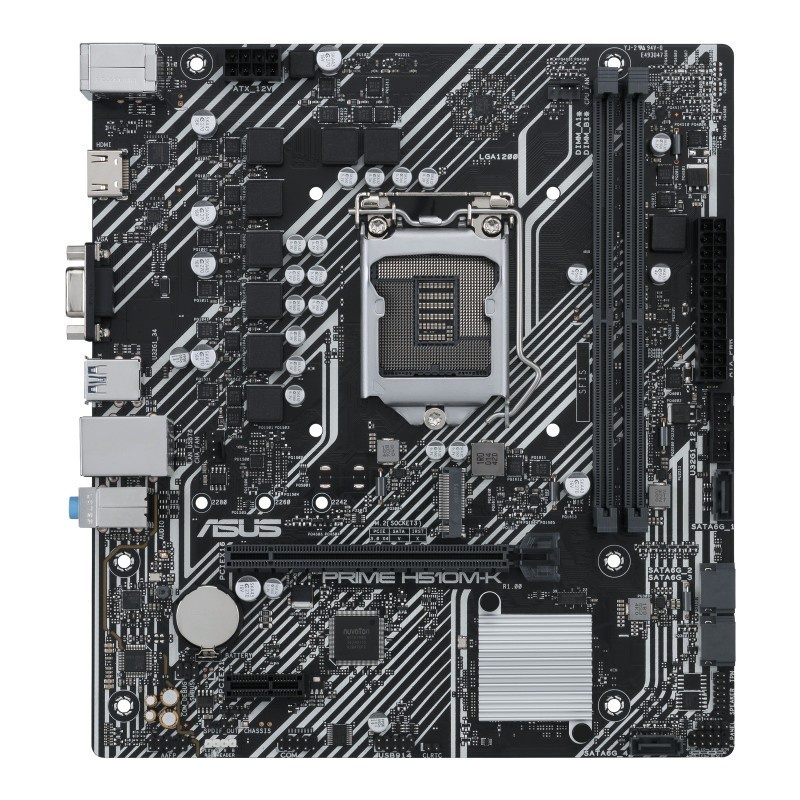

Gambar produk
