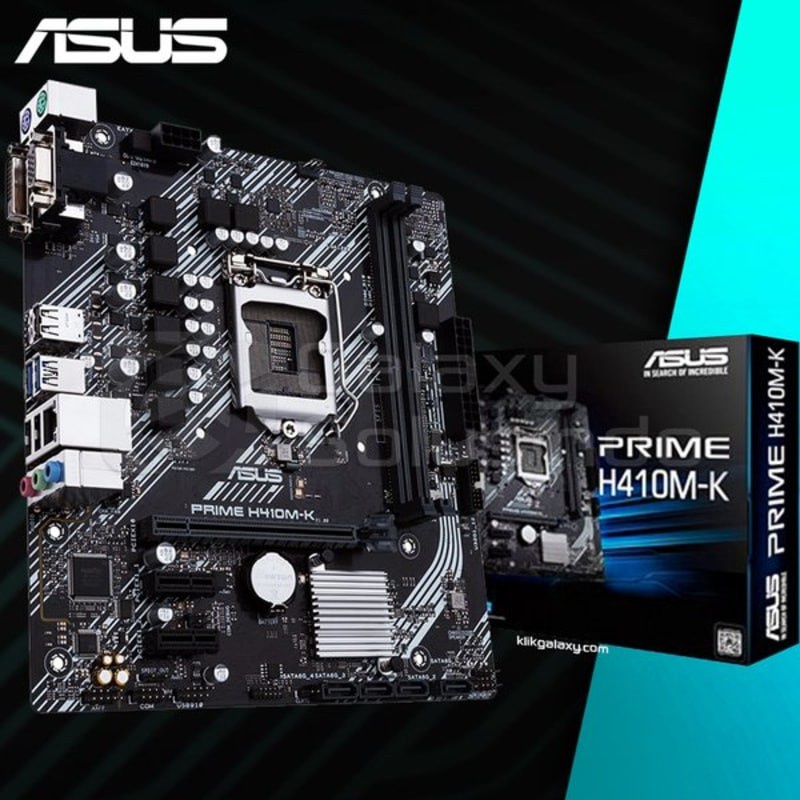

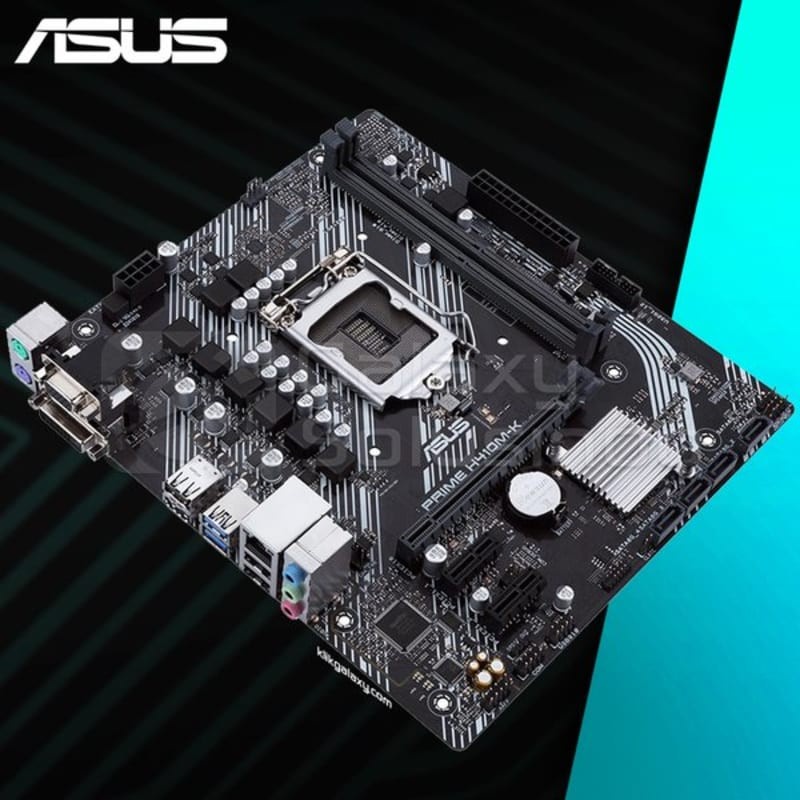

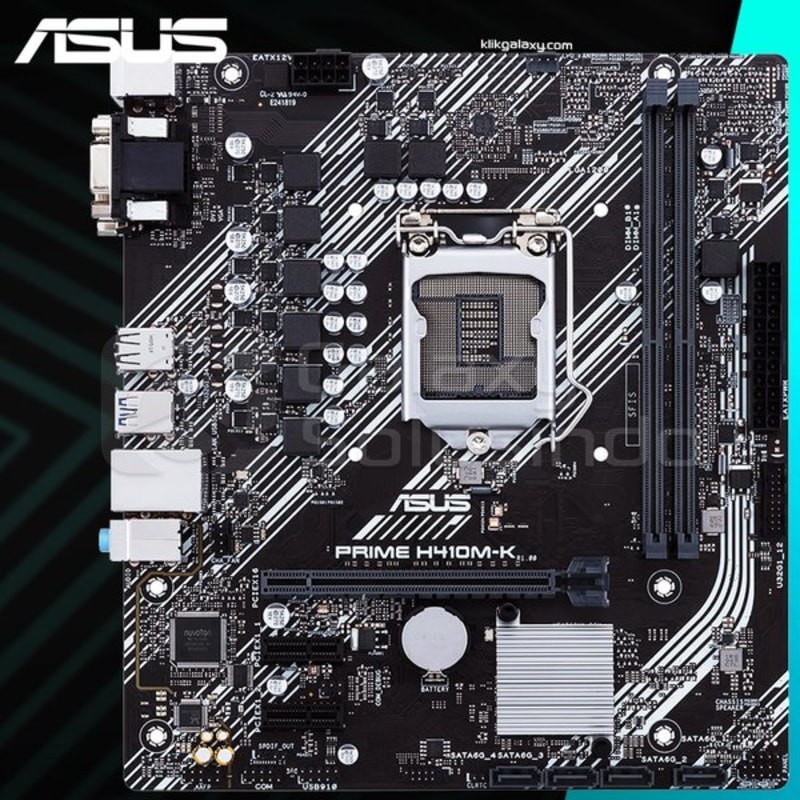

ASUS PRIME H410M-K Motherboard

Detail ASUS PRIME H410M-K Motherboard

SPECIFICATION :
CPUIntel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors *Supports Intel 14 nm CPUSupports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0****Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.ChipsetIntel H410Memory2 x DIMM, Max. 64GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *Dual Channel Memory ArchitectureSupports Intel Extreme Memory Profile (XMP)OptiMemGraphicIntegrated Graphics Processor1 x DVI-D1 x D-Sub*Graphics specifications may vary between CPU types.Expansion SlotsIntel 10th Gen Processors1 x PCIe 3.0 x16 (x16 mode)Intel H410 Chipset2 x PCIe 3.0 x1StorageTotal supports 4x SATA 6Gb/s portsIntel H410 Chipset :4 x SATA 6Gb/s port(s)LANRealtek RTL8111HAudioRealtek ALC887 7.1-Channel High Definition Audio CODEC *- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playbackAudio Feature :- Audio Shielding- Dedicated audio PCB layers* Choose the chassis with HD audio module in front panel to support 8-channel audio output.USB PortsRear USB Port ( Total 6 )2 x USB 3.2 Gen 1 port(s)(2 x Type-A)4 x USB 2.0 port(s)(2 x Type-A)Front USB Port ( Total 4 )2 x USB 3.2 Gen 1 port(s)2 x USB 2.0 port(s)Software FeaturesASUS Exclusive SoftwareArmoury CrateAI Suite 3- Performance And Power Saving UtilityTurboV EVOEPUDigi+ VRMFan Xpert- EZ updateASUS CPU-ZAI

Gambar produk
