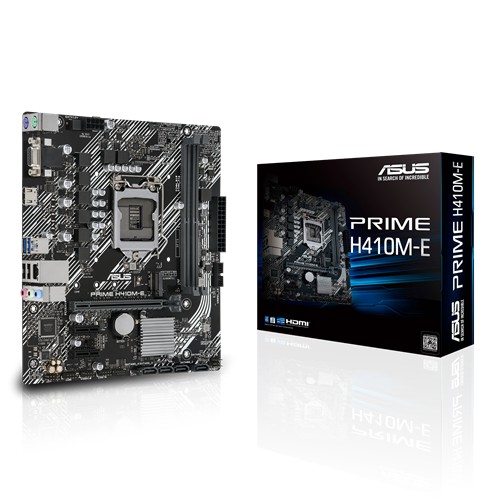

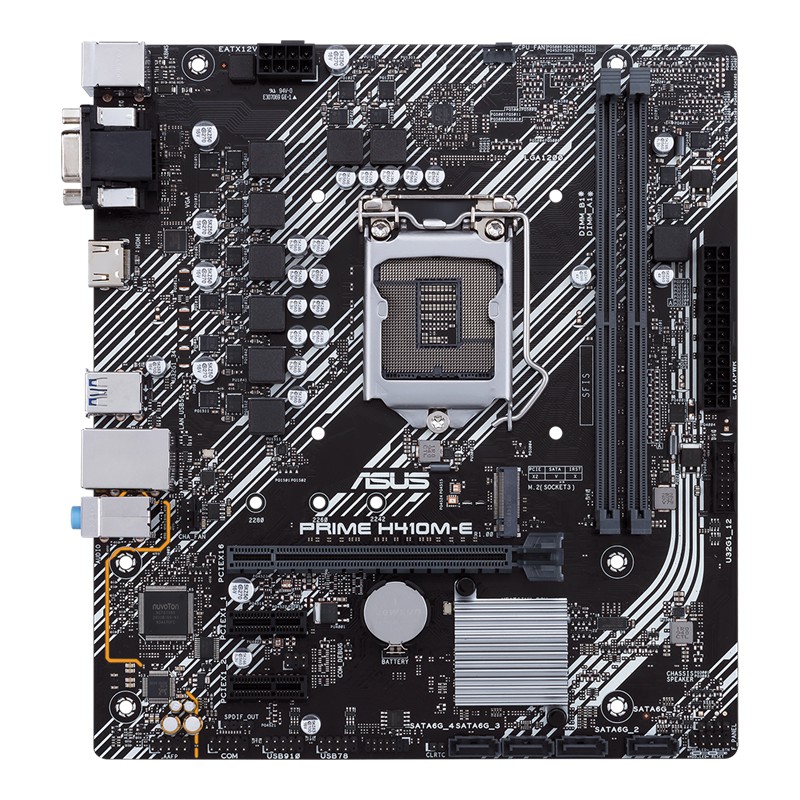

ASUS PRIME H410M-E Motherboard LGA1200 H410 DDR4 USB3.2 SATA3 H410M E

Detail ASUS PRIME H410M-E Motherboard LGA1200 H410 DDR4 USB3.2 SATA3 H410M E

CPU :
- Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
- Supports Intel® 14 nm CPU
- Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Chipset : Intel H410
Memory :
- 2 x DIMM, Max. 64GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
- Dual Channel Memory Architecture
- Supports Intel® Extreme Memory Profile (XMP)
Graphics :
- Integrated Graphics Processor
- 1x D-Sub
- 1x HDMI 1.4b
Expansion Slots :
- Intel® 10th Gen Processors : 1 x PCIe 3.0 x16 (x16 mode)
- Intel® H410 Chipset : 2 x PCIe 3.0 x1
Storage :
- Total supports 1 x M.2 slots and 4 x SATA 6Gb/s ports
- Intel® H410 Chipset : 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode) , 4 x SATA 6Gb/s port(s)
Lan : Realtek® RTL8111H
USB Ports :
- 2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
- 2 x USB 2.0 port(s)(2 x Type-A)
- 2 x USB 3.2 Gen 1 port(s)
- 4 x USB 2.0 port(s)
BIOS : 128 Mb Flash ROM, UEFI AMI BIOS
Operating System : Windows® 10 64-bit
Form Factor : mATX Form Factor
Dimensions : 8.9 inch x 8.0 inch ( 22.6 cm x 20.3 cm )

Garansi 3 Tahun

Gambar produk
