ASUS PN51 RYZEN 7 Barebone (No SSD, No Memory)

Detail ASUS PN51 RYZEN 7 Barebone (No SSD, No Memory)

ASUS PN51 - S1 Model.

CPU

AMD Ryzen™ 7 5700U Processor 1.8GHz (12M Cache, up to 4.3GHz)

Chipset

TPM module on board
Integrated

Graphics

Integrated - Radeon™ Vega Graphics

Memory

4GB DDR4 Memory
8GB DDR4 Memory
16GB DDR4 Memory

Storage

128GB M.2 NVMe™ PCIe® 3.0 SSD
256GB M.2 NVMe™ PCIe® 3.0 SSD
512GB M.2 NVMe™ PCIe® 3.0 SSD
1TB M.2 NVMe™ PCIe® 3.0 SSD

Wireless Data Network
Wi-Fi 6, Bluetooth 5.0, 2*2

LAN
10/100/1000 Mbps
2.5G LAN, Realtek® RTL8125B-CG
Gigabit LAN, Realtek® 8111EP

Audio
Realtek® ALC3251 or ALC3236-VB2 HD Audio CODEC (optional)

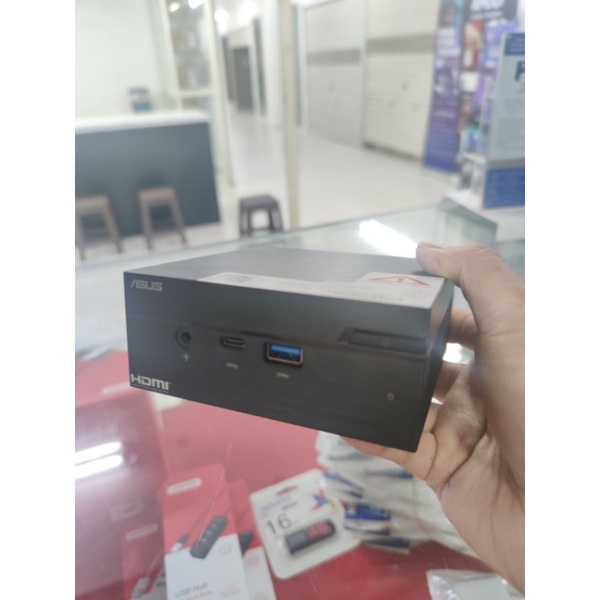

Side(Front) I/O Ports
1 x USB 3.2 Gen2 Type-C(w/ quick charge, DP output), 1 x USB3.2 Gen1 Type-A, 1x 4-in-1 Card Reader, 1 x Consumer Infrared Sensor, 2 x Microphone Array, 1x Audio Jack(optional), 1 x K-Lock(side)

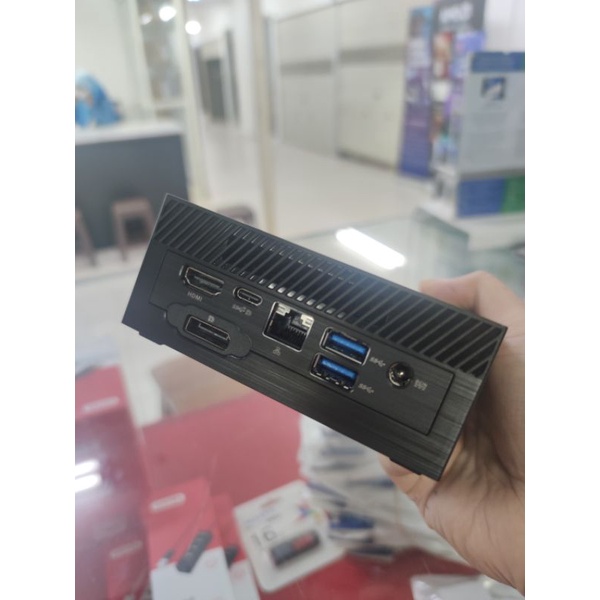

Back I/O Ports
1 x HDMI, 1 x USB 3.2 Gen2 Type-C(w/ DP output), 1 x Configurable Port (option: VGA/COM/DP/LAN), 2 x USB 3.2 Gen1 Type-A, 1 x RJ45 LAN, 1 x DC-in

Configurable I/O
1 x Display1.4 Port (Barebone SKU)
1 x Display1.2 Port (Barebone SKU)
1 x VGA Port (Barebone SKU)
1 x Lan(RJ-45) Port (Barebone SKU)

Speaker
No

Power Supply
19Vdc, 3.42A, 65W Power Adapter
19Vdc, 4.74A, 90W Power Adapter

Dimensions (W x D x H)
115 x 115 x 49 mm

Weight
700g (include 2.5" HDD)

Color
Black
