ASUS MOTHERBOARD TUF GAMING B660-PLUS WIFI D4 Intel B660 LGA 1700 DDR4

Detail ASUS MOTHERBOARD TUF GAMING B660-PLUS WIFI D4 Intel B660 LGA 1700 DDR4

Terima kasih Sudah berkunjung di Kurnia Abadi Semesta.
Demi kenyamanan bersama terkait harga, stock, warna, dll, harap konfirmasi terlebih dahulu sebelum order.
Terima kasih

TUF GAMING B660-PLUS WIFI D4

Intel® B660 (LGA 1700) ATX motherboard with PCIe 5.0 slot, three PCIe 4.0 M.2 slots, 10+1 DrMOS, Intel® 2.5Gb Ethernet, DisplayPort, HDMI, front USB 3.2 Gen 2 Type-C®, Aura Sync

Intel® LGA 1700 socket: Ready for 12th Gen Intel® processors

Enhanced power solution: 10+1 DrMOS power stages, six-layer PCB, 8+4 ProCool sockets, military-grade TUF components and Digi+ VRM for maximum durability

Comprehensive cooling: Enlarged VRM heatsink, Stack Cool 3+, M.2 heatsinks, PCH heatsink, hybrid fan headers and Fan Xpert 4 utility

Latest connectivity: PCIe 5.0 slot, PCIe 4.0 M.2 slots, rear USB 3.2 Gen 2x2 Type-C®, front panel header for USB 3.2 Gen 2 Type-C® and Thunderbolt 4™ header support

Made for online gaming: Intel® WiFi 6, Intel® 2.5Gb Ethernet, TUF LANGuard

Two-way AI Noise-Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences

SPEK

CPU
Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.

Chipset
Intel® B660 Chipset

Memory
4 x DIMM, Max. 128GB, DDR4
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II

Graphics
1 x DisplayPort
1 x HDMI® port

Expansion Slots
Intel® 12th Gen Processors
1 x PCIe 5.0/4.0/3.0 x16 slot(s)
Intel® B660 Chipset
1 x PCIe 3.0 x16 slot (supports x4 mode)
2 x PCIe 3.0 x1 slots

Storage
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® 12th Gen Processors
Intel® B660 Chipset

Ethernet
1 x Intel® 2.5Gb Ethernet
TUF LANGuard

Wireless & Bluetooth
Wi-Fi 6
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth v5.2

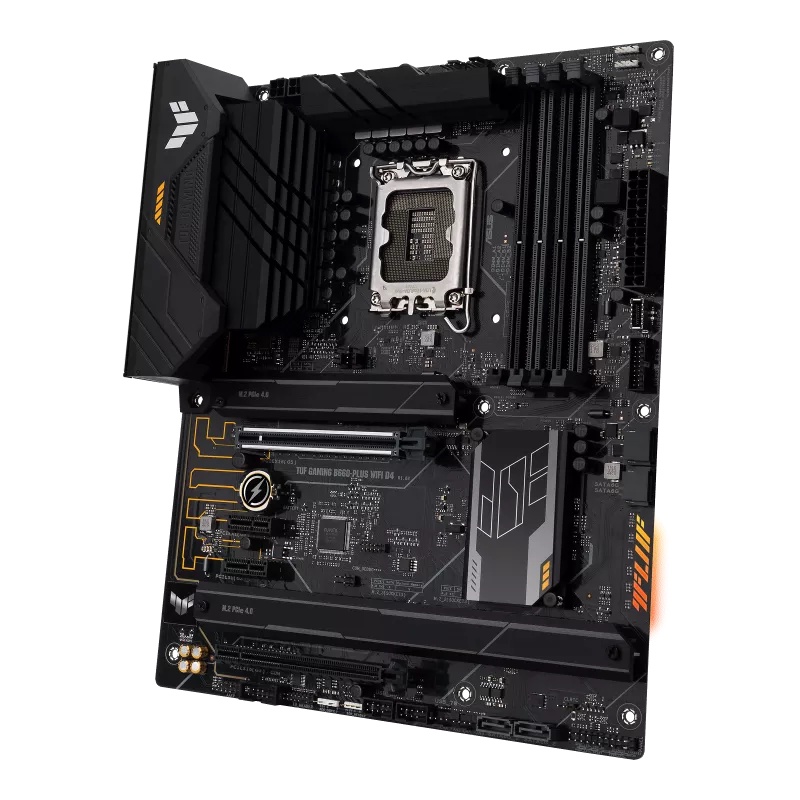

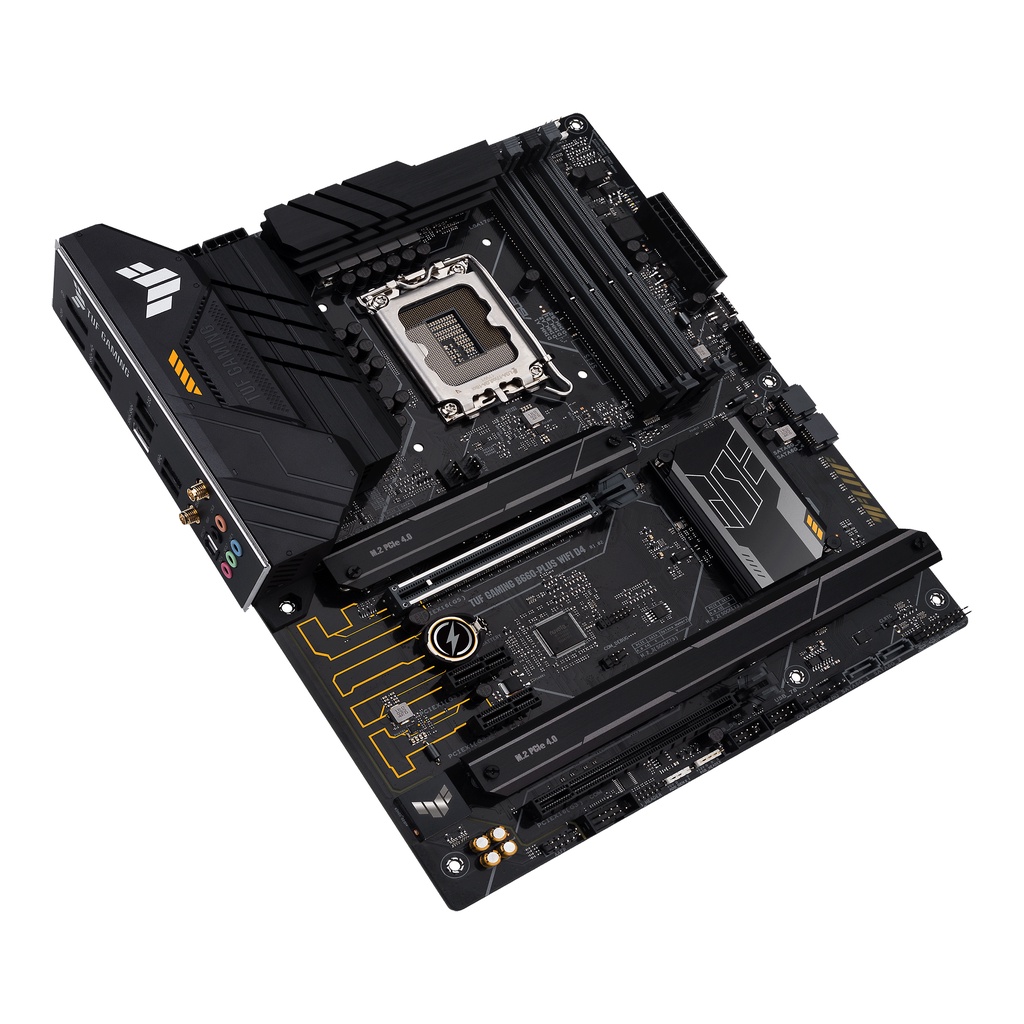

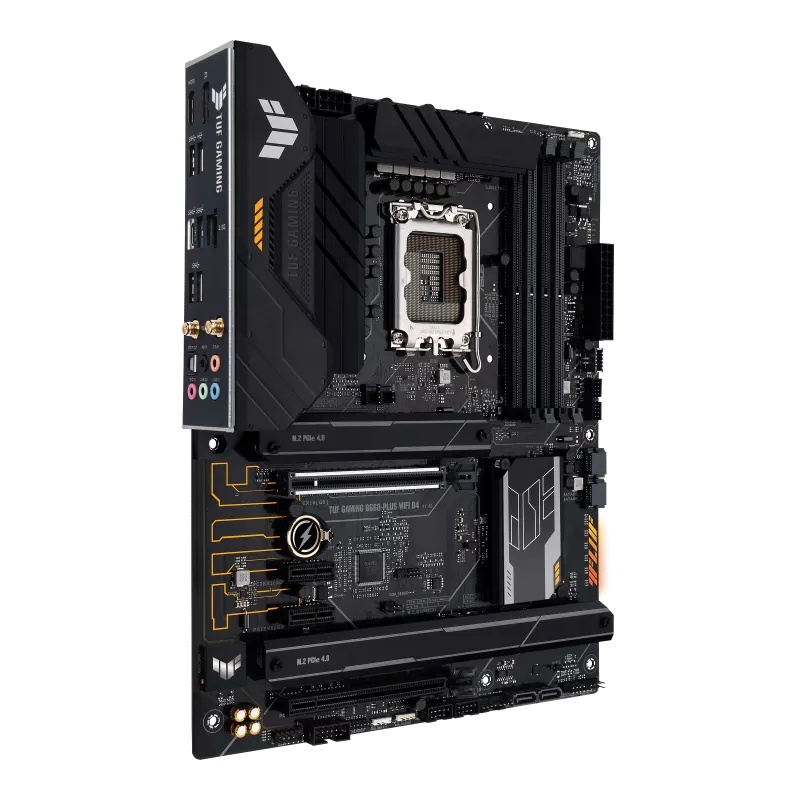

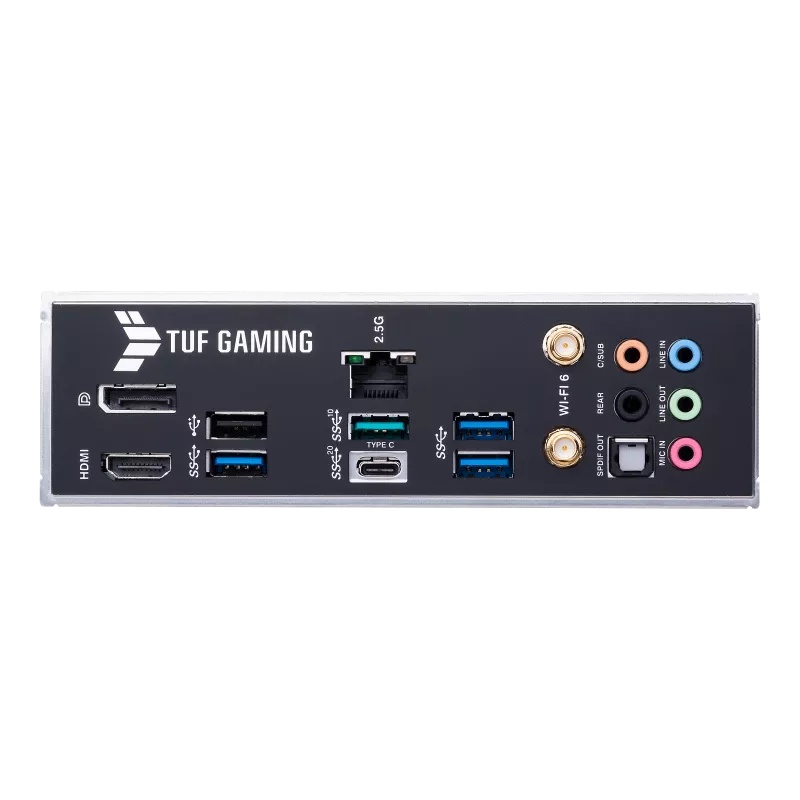

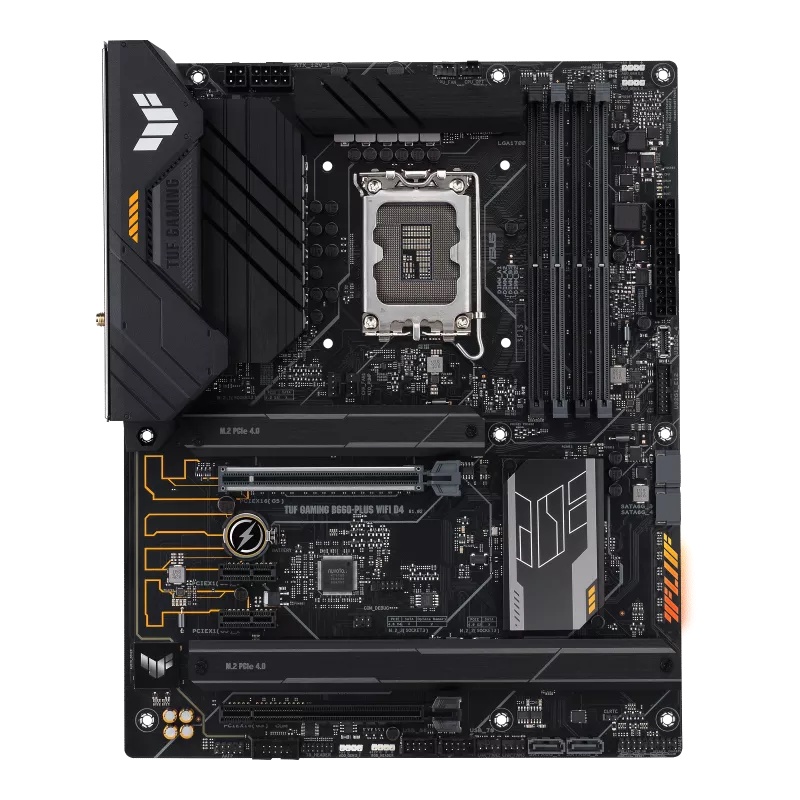

Gambar produk
