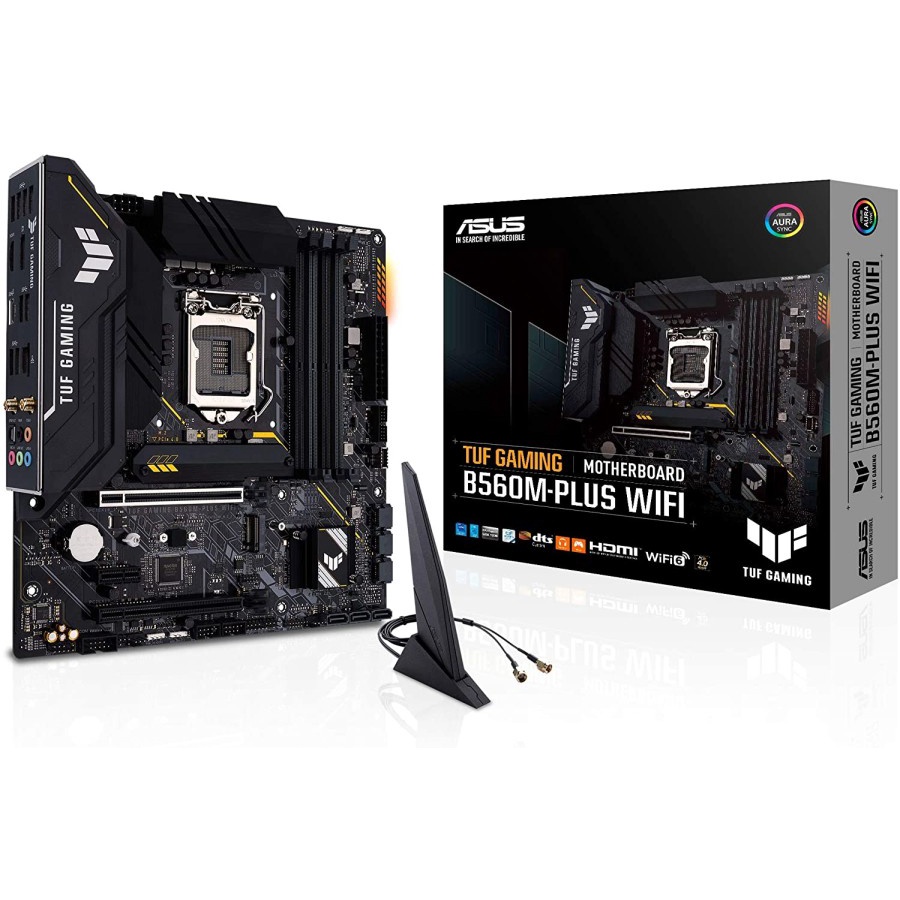

ASUS MOTHERBOARD TUF GAMING B560M-PLUS WIFI Intel B560 LGA 1200

Detail ASUS MOTHERBOARD TUF GAMING B560M-PLUS WIFI Intel B560 LGA 1200

Terima kasih Sudah berkunjung di Kurnia Abadi Semesta.
Demi kenyamanan bersama terkait harga, stock, warna, dll, harap konfirmasi terlebih dahulu sebelum order.
Terima kasih

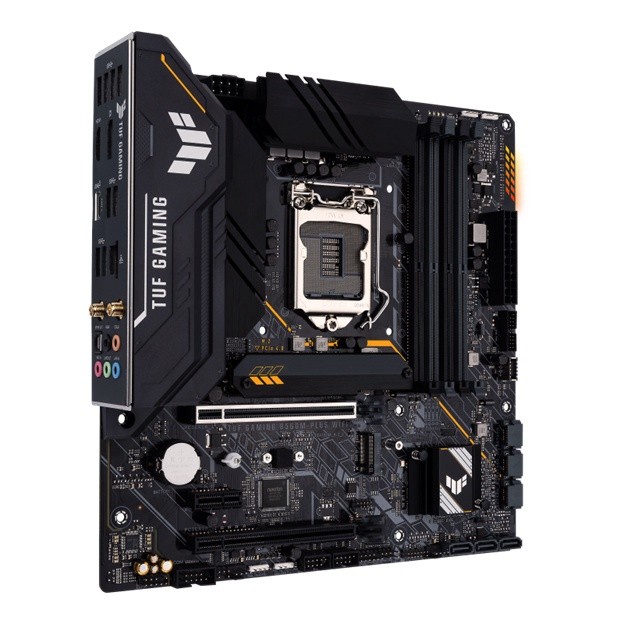

TUF GAMING B560M-PLUS WIFI

Intel® B560 (LGA 1200) mATX motherboard with PCIe 4.0, two M.2 slots, 8+1 Power stages, Realtek 2.5Gb Ethernet, Intel® Wi-Fi 6, DisplayPort 1.4, HDMI 2.0, USB 3.2 Gen 2, USB 3.2 Gen 1 Type-C®, Thunderbolt™ 4 support, Aura Sync RGB Lighting, Addressable RGB

Intel® LGA 1200 socket: Ready for 11th Gen Intel® Core™ processors

Enhanced power solution: 8+1 power stages, 6-layer PCB, ProCool socket, and durable capacitors for stable power delivery

Comprehensive cooling: VRM heatsink, flexible M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+

CPU
Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

Chipset
B560
Memory
DDR4 5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II

Expansion Slots
1 x PCIe 4.0/3.0 x16 + 1 x PCIe 3.0 x16 (max. x4)
Intel® 11th &10th Gen Processors
1 x PCIe 4.0/3.0 x16 slot(s)
- Intel® 11th Gen processors support PCIe 4.0 x16
- Intel®10th Gen processors support PCIe 3.0 x16
Intel® B560 Chipset
1 x PCIe 3.0 x16 slot (supports x4 mode)
1 x PCIe 3.0 x1 slots

Ethernet
TUF LANGuard

Wireless & Bluetooth
Intel® Wi-Fi 6
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth v5.0 or later

Operating System
Windows 10 64bit
