ASUS MOTHERBOARD ROG MAXIMUS Z690 FORMULA LGA 1700

Detail ASUS MOTHERBOARD ROG MAXIMUS Z690 FORMULA LGA 1700

Terima kasih Sudah berkunjung di Kurnia Abadi Semesta.
Demi kenyamanan bersama terkait harga, stock, warna, dll, harap konfirmasi terlebih dahulu sebelum order.
Terima kasih

ROG MAXIMUS Z690 FORMULA

Intel® Z690 ATX motherboard with 20+1 power stages, DDR5, Five M.2, USB 3.2 Gen 2x2 front-panel connector, Dual Thunderbolt™ 4, PCIe® 5.0, Onboard WiFi 6E, 10 Gb Ethernet and Aura Sync RGB lighting

Socket LGA 1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors

Intelligent Control: ASUS-exclusive tools including AI Overclocking, AI Cooling, AI Networking and Two-Way AI Noise Cancelation for easy configuration

Robust Power Solution: 20+1 teamed power stages rated for 105 A, ProCool II power connectors, MicroFine alloy chokes and premium metallic capacitors

SPESIFIKASI
CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

Chipset
Z690

Memory
4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)

Graphics
1 x HDMI® port
2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort 1.4 and Thunderbolt™ video outputs

Expansion Slots
Intel® 12th Gen Processors
2 x PCIe 5.0 x16 slot(s) (supports x16 or x8/x8 mode(s))
Intel® Z690 Chipset
1 x PCIe 4.0 x16 slot (supports x4 or x4/x4 mode)

Storage
Supports 5 x M.2 slots and 6 x SATA 6Gb/s ports

Ethernet
1 x Marvell® 10Gb Ethernet
ASUS LANGuard

Wireless & Bluetooth
Intel® Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth v5.2

USB
Rear USB:
Total 12 ports
2 x Thunderbolt™ 4 port(s) (2 x USB Type-C®)
7 x USB 3.2 Gen 2 port(s) (6 x Type-A + 1 x USB Type-C®)
3 x USB 2.0 port(s) (3 x Type-A)
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®)
2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 header(s) support(s) additional 4 USB

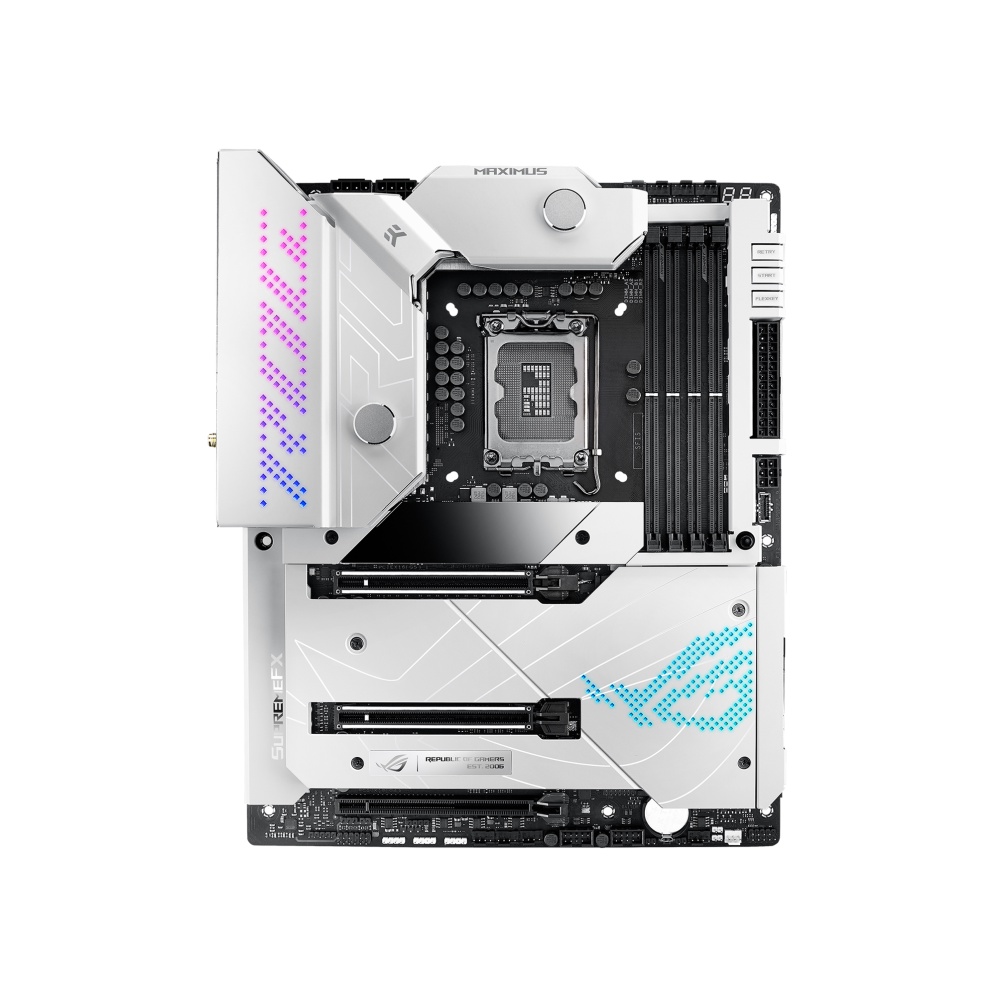

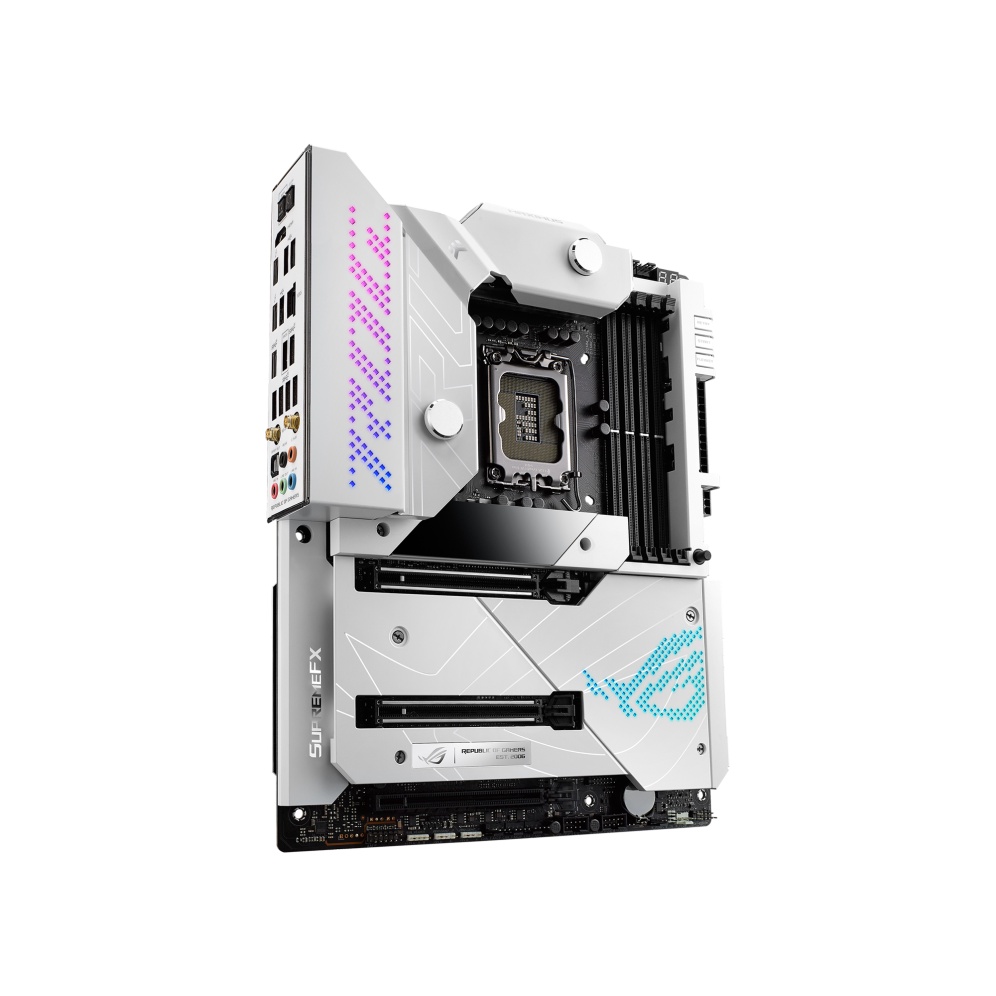

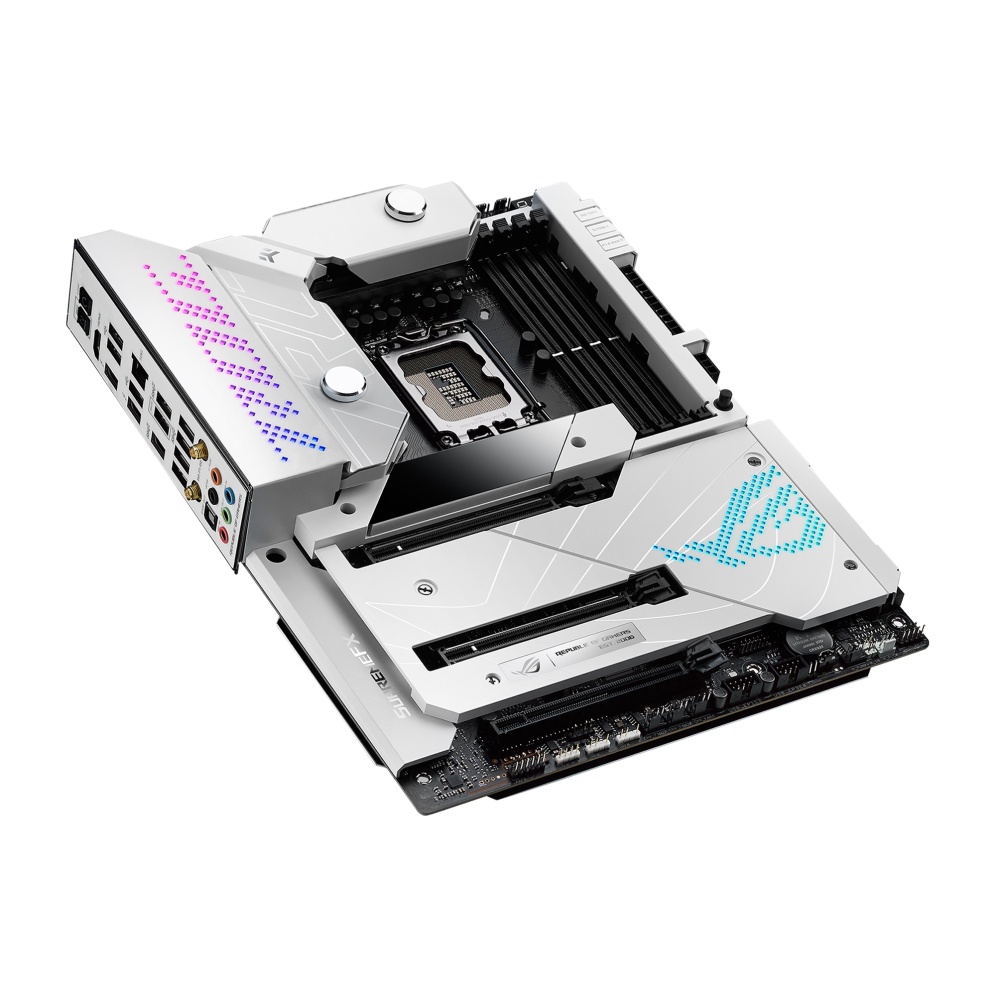

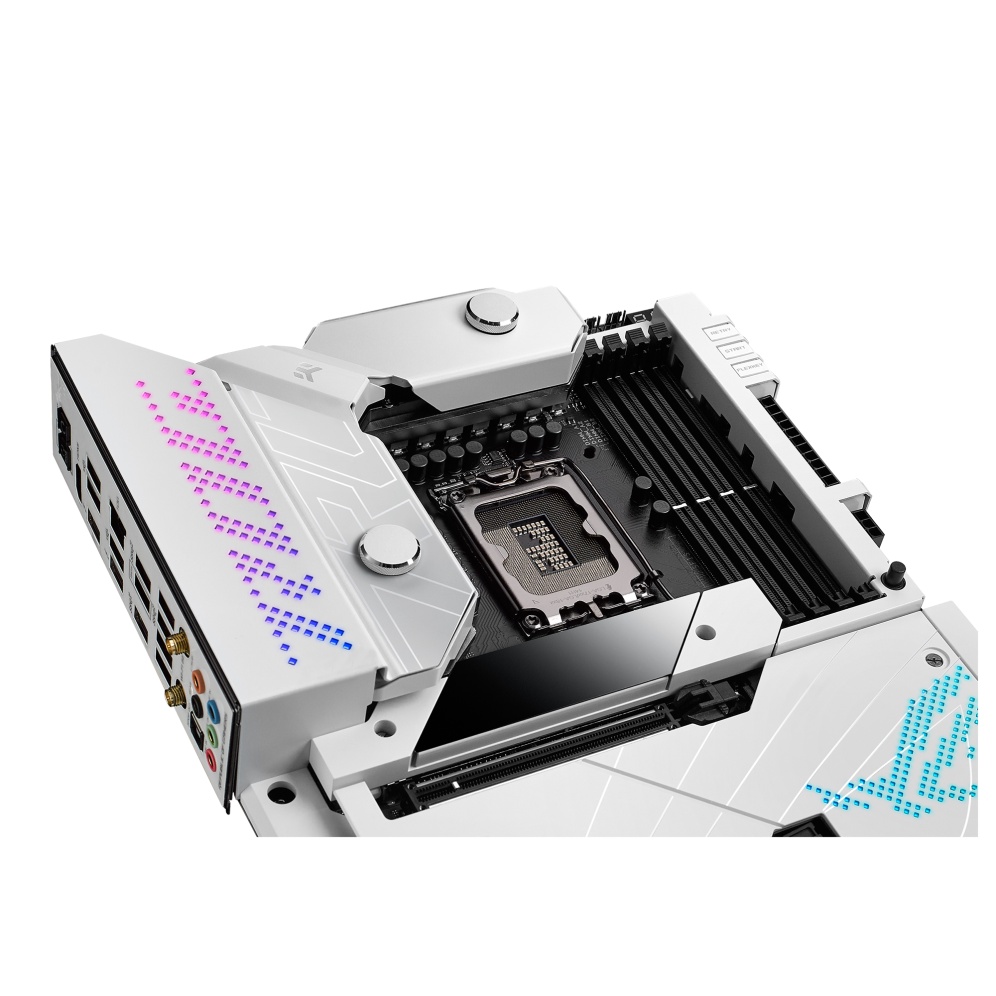

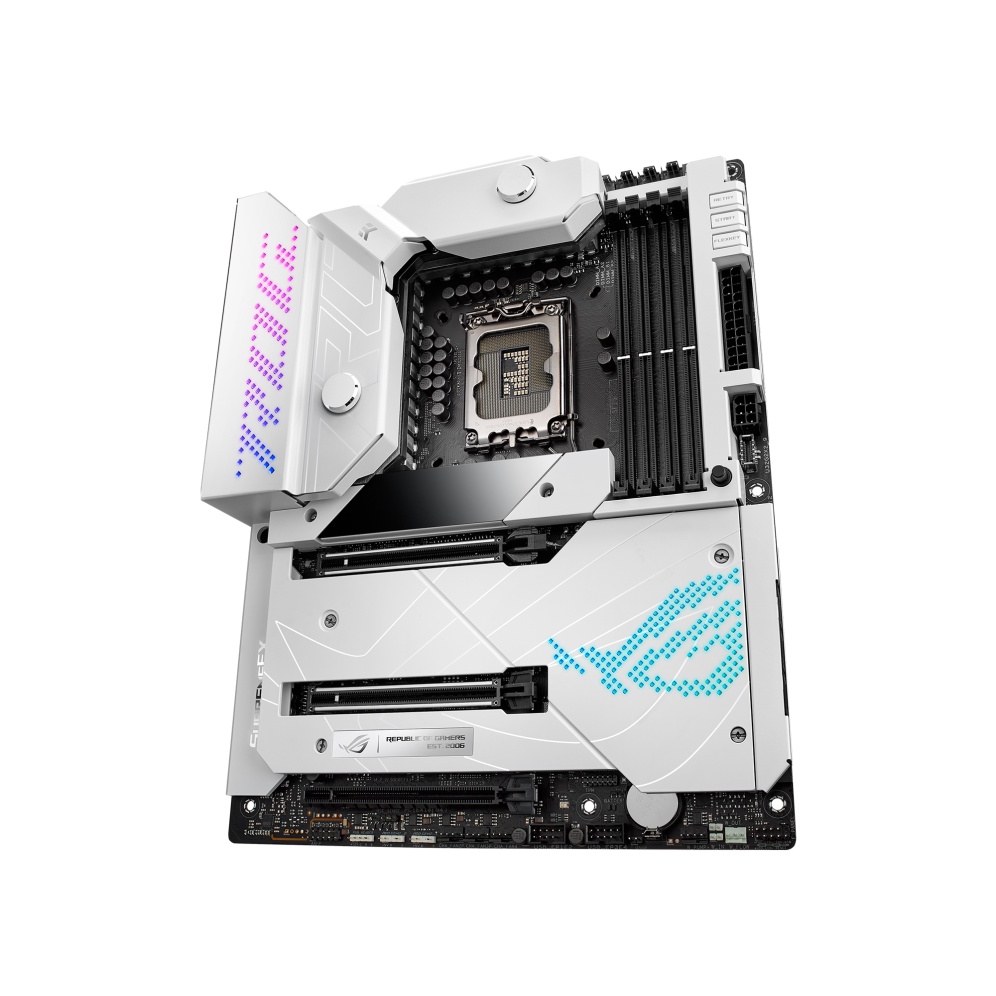

Gambar produk
