ASUS MOTHERBOARD ProArt Z690-CREATOR WIFI LGA 1700 DDR5

Detail ASUS MOTHERBOARD ProArt Z690-CREATOR WIFI LGA 1700 DDR5

Terima kasih Sudah berkunjung di Kurnia Abadi Semesta.
Demi kenyamanan bersama terkait harga, stock, warna, dll, harap konfirmasi terlebih dahulu sebelum order.
Terima kasih

ProArt Z690-CREATOR WIFI

Intel® Z690 LGA 1700 ATX motherboard built for creators, with PCIe® 5.0, DDR5 support, Thunderbolt™ 4, 10 Gb and 2.5 Gb Ethernet, WiFi 6E, four PCIe 4.0 M.2 slots with heatsinks, plus a USB 3.2 Gen 2x2 front panel connector with Quick Charge 4+ support

Intel® Socket LGA 1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors

Future-proofed connectivity: Two Thunderbolt™ 4 Type-C® ports, 10 Gb & 2.5 Gb onboard Ethernet, WiFi 6E, four PCIe® 4.0 M.2 slots and a USB 3.2 Gen 2x2 front panel connector with Quick Charge 4+

Next-gen performance: 16+1 power stages rated for 70 amps, PCIe 5.0 ready, and a DDR5 speed boost

SPEK

CPU
Supports Intel® 10 nm CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

Chipset
Z690

Memory
4 x DIMM, Max. 128GB, DDR5 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800MT/s Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II

Graphics
1 x HDMI® port
2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs

Expansion Slots
Intel® 12th Gen Processors
2 x PCIe 5.0/4.0/3.0 x16 slot(s) (supports x16 or x8/x8 mode(s))
Intel® Z690 Chipset
1 x PCIe 3.0 x16 slot (supports x4 mode)

Storage
Supports 4 x M.2 slots and 8 x SATA 6Gb/s ports
Intel® 12th Gen Processors
Intel® Z690 Chipset

Ethernet
1 x Intel® 2.5Gb Ethernet
1 x Marvell® 10Gb Ethernet
ASUS LANGuard

Wireless & Bluetooth
Intel® Wi-Fi 6E
Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band
Bluetooth v5.2 hardware ready

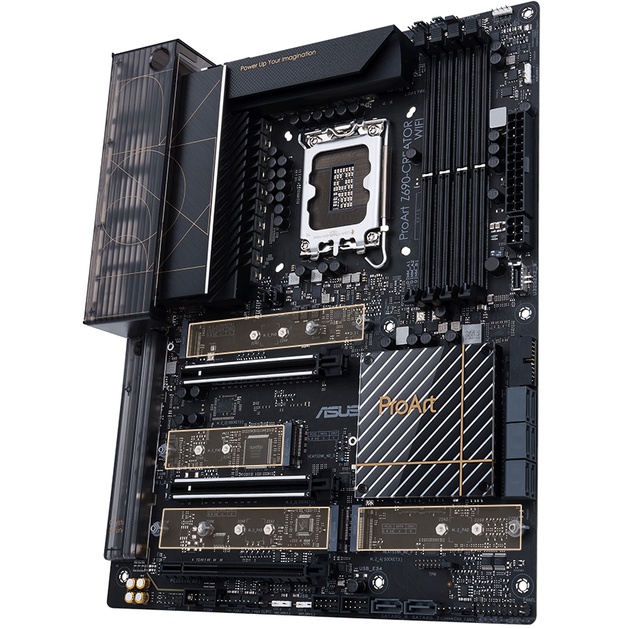

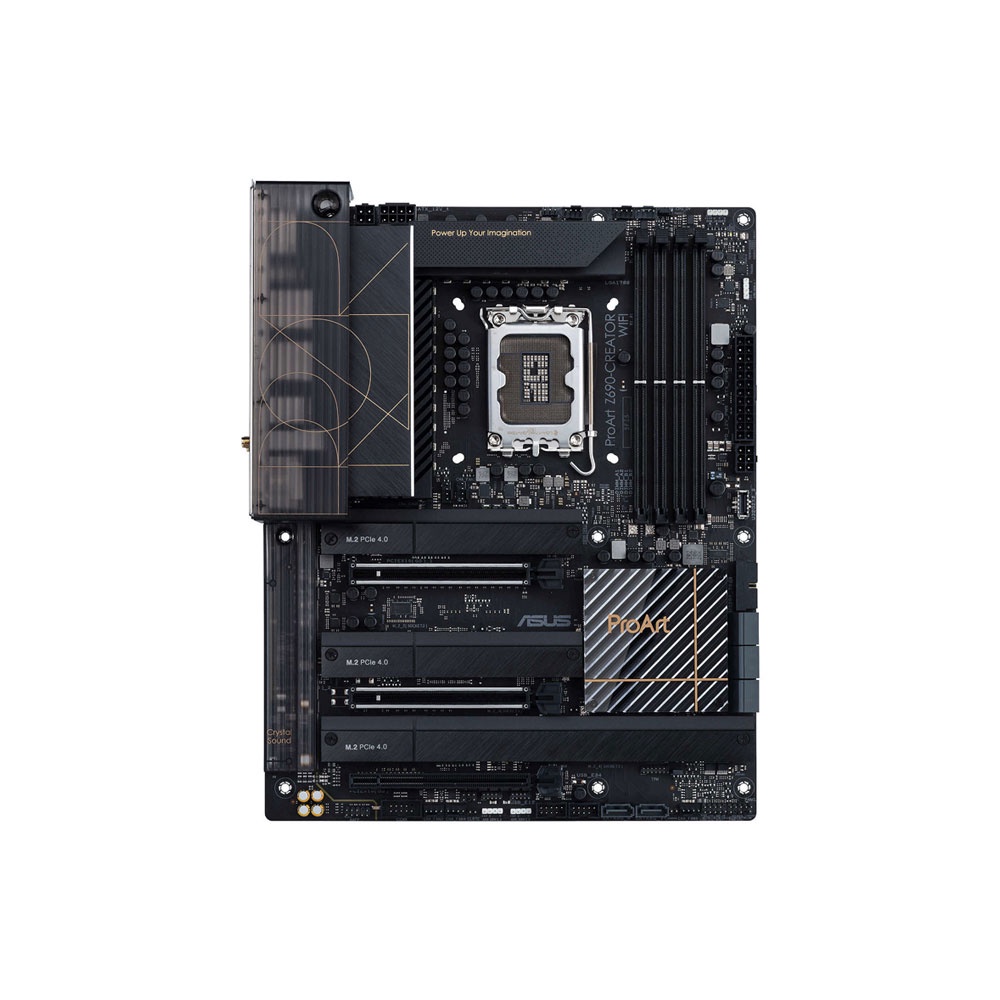

Gambar produk
