ASUS MOTHERBOARD PRIME B560M-A Intel B560 LGA1200

Detail ASUS MOTHERBOARD PRIME B560M-A Intel B560 LGA1200

Terima kasih Sudah berkunjung di Kurnia Abadi Semesta.
Demi kenyamanan bersama terkait harga, stock, warna, dll, harap konfirmasi terlebih dahulu sebelum order.
Terima kasih

PRIME B560M-A

Intel® B560 (LGA 1200), PCIe 4.0,two M.2 slots, 8 power stages, Intel® 1 Gb Ethernet, DisplayPort, dual HDMI, rear USB 3.2 Gen 2 Type-C®, V-M.2 Key E slot for Wi-Fi , Aura Sync, Addressable RGB, mATX motherboard

Intel® LGA 1200 socket: Ready for 11th Gen Intel® Core™ processors

Enhanced power solution: 8 power stages, alloy chokes and durable capacitors for stable power delivery

Comprehensive cooling: Stronger VRM heatsink, flexible M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+

Memory overclocking: Support memory overclocking up to 5000 MHz

ASUS OptiMem II: Careful routing for significantly reducing crosstalk, preserving signal integrity for improved memory stability

Ultrafast connectivity: PCIe 4.0, Intel® 1 Gb Ethernet, rear USB 3.2 Gen 2 (Type-A &Type-C®) and V-M.2 Key E slot for Wi-Fi

SPEK

CPU
Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

Chipset
B560

Memory
DDR4 5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II

Expansion Slots
Intel® 11th &10th Gen Processors
1 x PCIe 4.0/3.0 x16 slot(s)*
- Intel® 11th Gen processors support PCIe 4.0 x16
- Intel®10th Gen processors support PCIe 3.0 x16
Intel® B560 Chipset
1 x PCIe 3.0 x16 slot (supports x4 mode)*
1 x PCIe 3.0 x1 slots

Operating System
Windows 10 64bit

Form Factor
24.4cm x 23.4cm

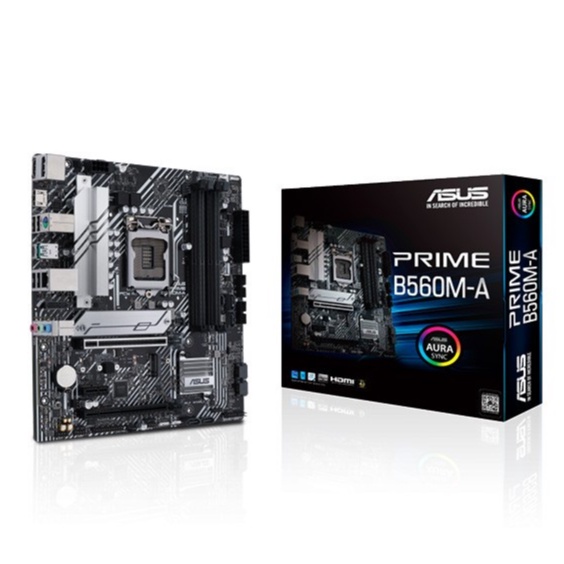

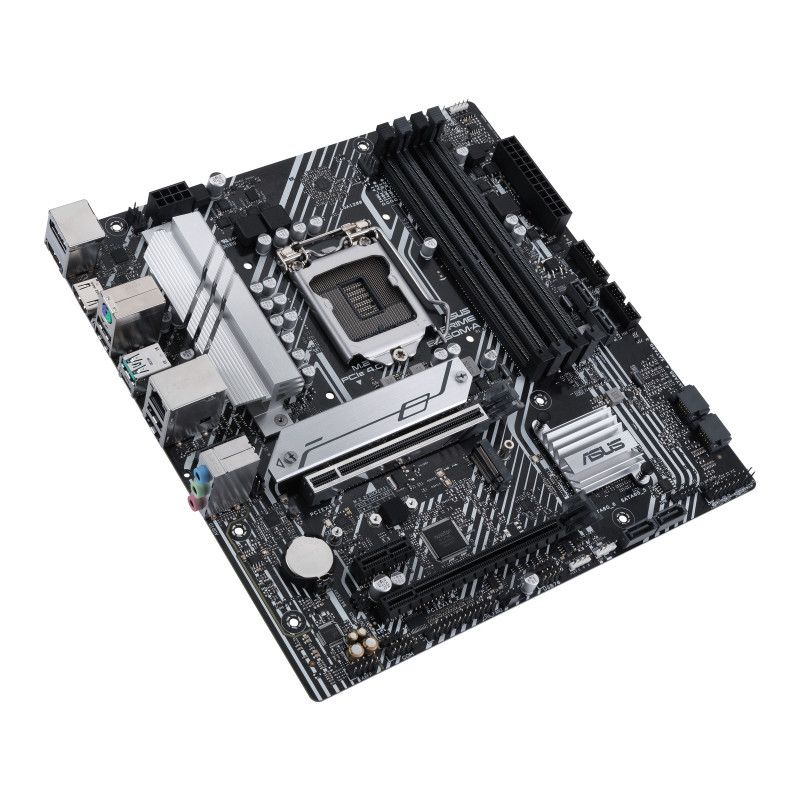

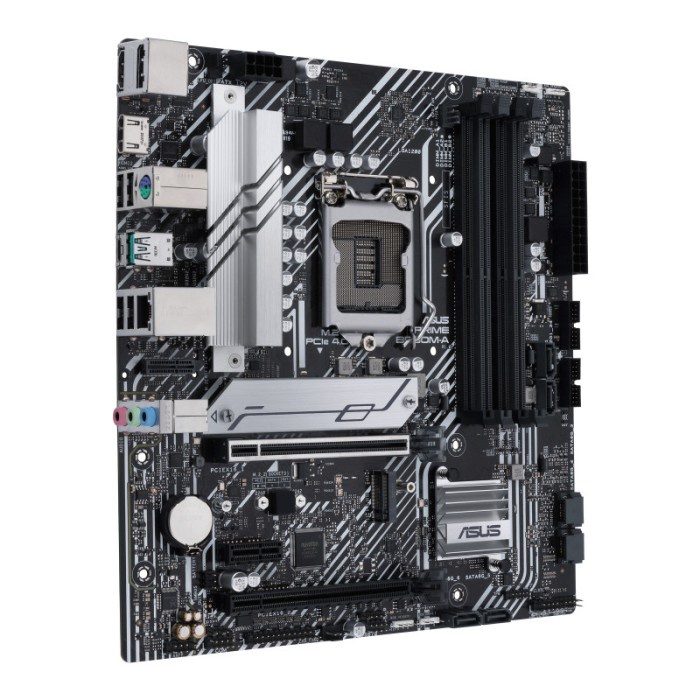

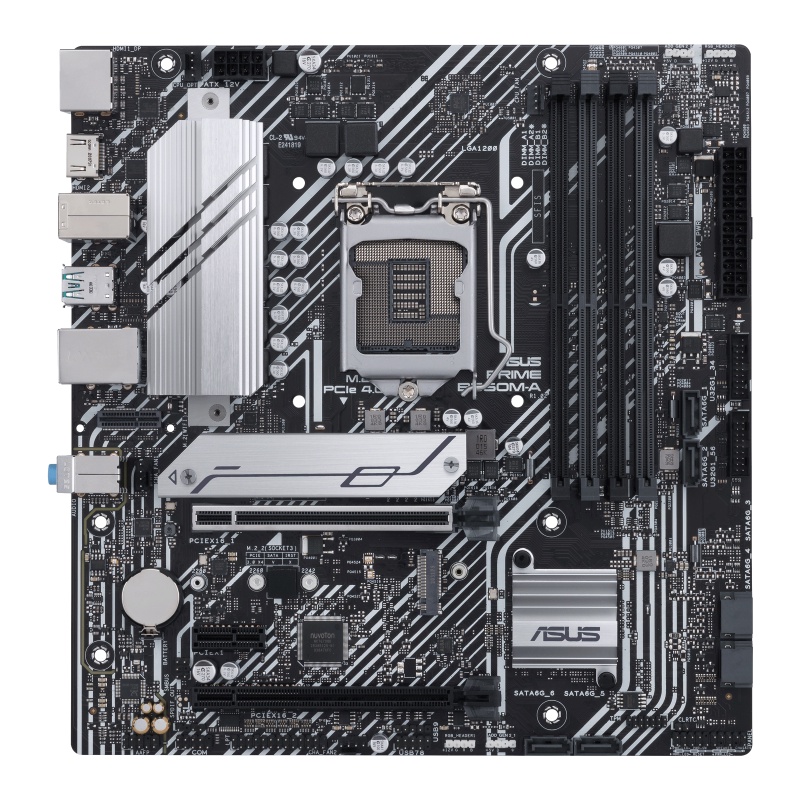

Gambar produk
