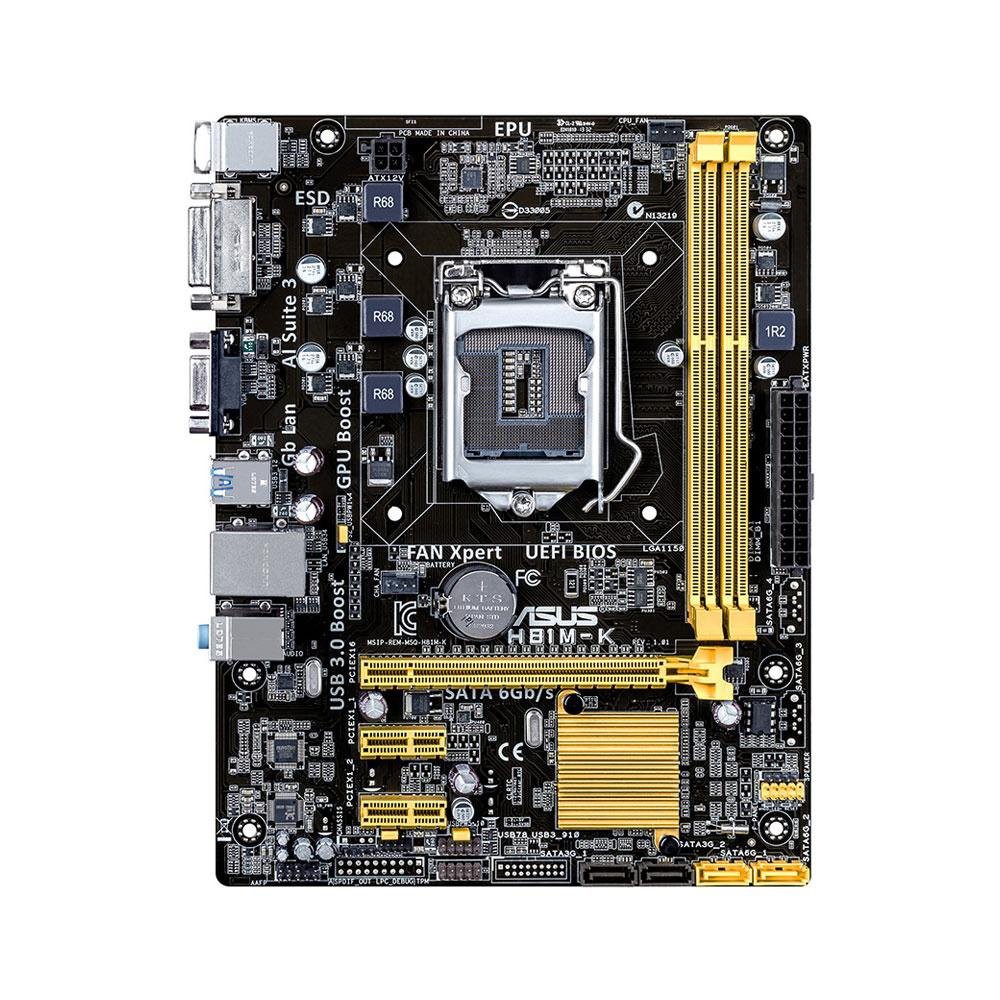

ASUS MAINBOARD H81M-K H81 DDR3 ONBOARD VGA SOCKET 1150 Resmi

Detail ASUS MAINBOARD H81M-K H81 DDR3 ONBOARD VGA SOCKET 1150 Resmi

CPU :
- Intel® Socket 1150 for New 4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
- Supports Intel® 22 nm CPU
- Supports Intel® Turbo Boost Technology 2.0
Chipset : Intel® H81
Memori :
- 2 x DIMM, Max. 16GB, DDR3 1600/1333/1066 MHz Non-ECC, Un-buffered Memory
- Dual Channel Memory Architecture
- Supports Intel® Extreme Memory Profile (XMP)
Grafis :
Integrated Graphics Processor
Dukungan output Multi-VGA : DVI/RGB port
- Mendukung DVI dengan resolusi maks. 1920 x 1200 @ 60 Hz
- Mendukung RGB dengan resolusi maks. 1920 x 1200 @ 60 Hz
Maximum shared memory of 1024 MB
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™

Slot Ekspansi :
- 1 x PCIe x16
- 2 x PCIe 2.0 x1
Storage :
- 2 x SATA 6Gb/s port(s), yellow
- 2 x SATA 3Gb/s port(s), dark brown
LAN : Realtek® 8111G, 1 x Gigabit LAN Controller(s)
Audio : Realtek® ALC887 8-Channel High Definition Audio CODEC
Port USB :
- 2 x USB 3.1 Gen 1 port(s) (2 at back panel, blue)
- 6 x USB 2.0 port(s) (2 at back panel, black, 4 at mid-board)
Operating System Support :
- Windows® 8
- Windows® 7
BIOS : 64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD

Form Factor :
- uATX Form Factor
- 8.9 inch x 6.9 inch ( 22.6 cm x 17.5 cm )

GARANSI RESMI: 3 TAHUN

Gambar produk
