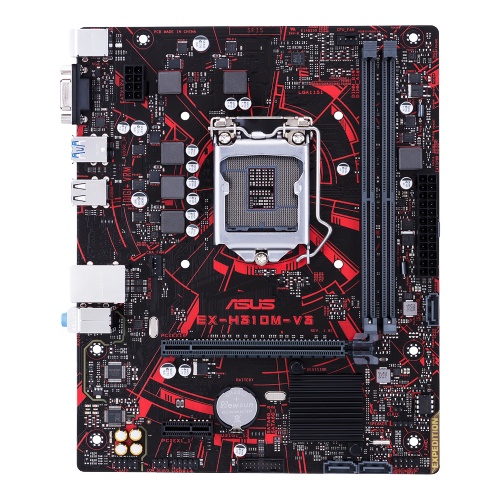

ASUS M0THEBOARD EX-H310M-V3

Detail ASUS M0THEBOARD EX-H310M-V3

CPU
Intel® Socket 1151 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
*Supports up to 65W CPUs. For more details, please refer to www.asus.comfor Intel® CPU support list.
Chipset
Intel® H310
Memori
2 x DIMM, Max. 32GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Supports Intel® Extreme Memory Profile (XMP)
* Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists).
* The maximum memory frequency supported varies by processor
Grafis
Integrated Graphics Processor- Intel® HD Graphics support
Dukungan output VGA : D-Sub port
- Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 1024 MB (for iGPU exclusively)
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
Slot Ekspansi
1 x PCIe 3.0/2.0 x16 (x16 mode)
1 x PCIe 2.0 x1
Storage
Intel® H310 Chipset :
3 x SATA 6Gb/s port(s),
LAN
Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)
Audio
Realtek® ALC887 8-Channel High Definition Audio CODEC
* Choose the chassis with HD audio module in front panel to support 8-channel audio output.
Port USB
Intel® H310 Chipset :
4 x USB 3.1 Gen 1 port(s) (2 at back panel, , 2 at mid-board)
Intel® H310 Chipset :
6 x USB 2.0/1.1 port(s) (4 at back panel, , 2 at mid-board)
Fitur-Fitur Khusus
ASUS 5X Protection III :
- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS DIGI+ VRM: 5 Phase digital power design
- ASUS ESD Guards - Enhanced ESD protection
Non-stop Durability :
- Anti-moisture coating - Outstanding protection against moisture and corrosion
- USBGuard- 120% higher voltage tolerance
Non-stop Gaming :
- Dedicated audio PCB

Gambar produk
