ASHLEY Crossover CX3400 Super 2 3 4 Way Plus Limiter Cross Over Aslei

Detail ASHLEY Crossover CX3400 Super 2 3 4 Way Plus Limiter Cross Over Aslei

Crossover Ashley CX 3400 Original Ashley CX3400 With Limiters Super X Pro

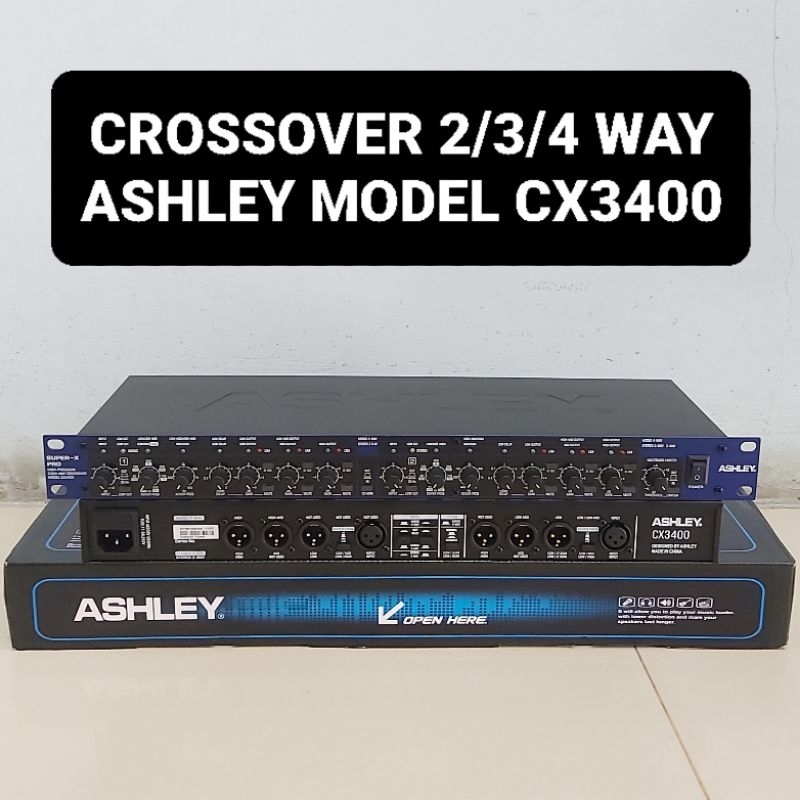

ASHLEY CX 3400
Crossover :
Filter type 24 dB / oct., Linkwitz-Riley, state-variable
Stereo mode Xover frequencies X1 x10
Low / high 44 Hz to 930 Hz 440 Hz to 9.3 kHz
Low / mid 44 Hz to 930 Hz 440 Hz to 9.3 kHz
Mid / high 440 Hz to 9.3 kHz
Mono mode Xover frequencies X1 x10
Low / low-mid 44 Hz to 930 Hz 440 Hz to 9.3 kHz
Low-mid / high-mid 440 Hz to 9.3 kHz - ZHY C'6 o1 zZH O ybiu / pru-ybIH

Function Switches
Front panel Low cut Activates 25 Hz, 12 dB / octave high-pass fiter, Butterworth
Mute Mutes the individual output
Phase invert lnverts the phase at the individual output
CD horn Corrects CD horn frequency response above 3.5 kHz
Limiter Activates the limiter function for all outputs
Rear panel Xover frequency Multiplies crossover frequency range by 10 Stereo / mono
Selects Mode and 2/3/4-way operation LF sum
Selects normal stereo or mono-summed low frequency operation ON = Channel 1 + 6 dB louder / Channel 2: the same as before Controls Input
Controls the input gain (+/- 12 dB)
Xover frequenc y Controls the crossover frequency
Delay Controls the delay at the low output (0 to 2 msec.)
Gain Controls the output gain (+/- 6 dB)
Threshold Controls the threshold of the limiter (-6 dB to OFF) Power supply, Voltage , Current consumption Switch mode power supply Autorange, 100-240 V-50/60 Hz
Power consumption 15 W
Mains connector IEC receptacle
