AS5600 12bit Magnetic Encoder Induction Angel Sensor Module

Detail AS5600 12bit Magnetic Encoder Induction Angel Sensor Module

AS5600 Magnetic Encoder Induction Angle Sensor recognizes changes in the magnetic field as information about the rotational position transforms those changes into electrical signals, and outputs those signals. The Hall element is a magnetic sensor that outputs a voltage proportional to the strength of the magnetic field by utilizing the Hall effect phenomenon.

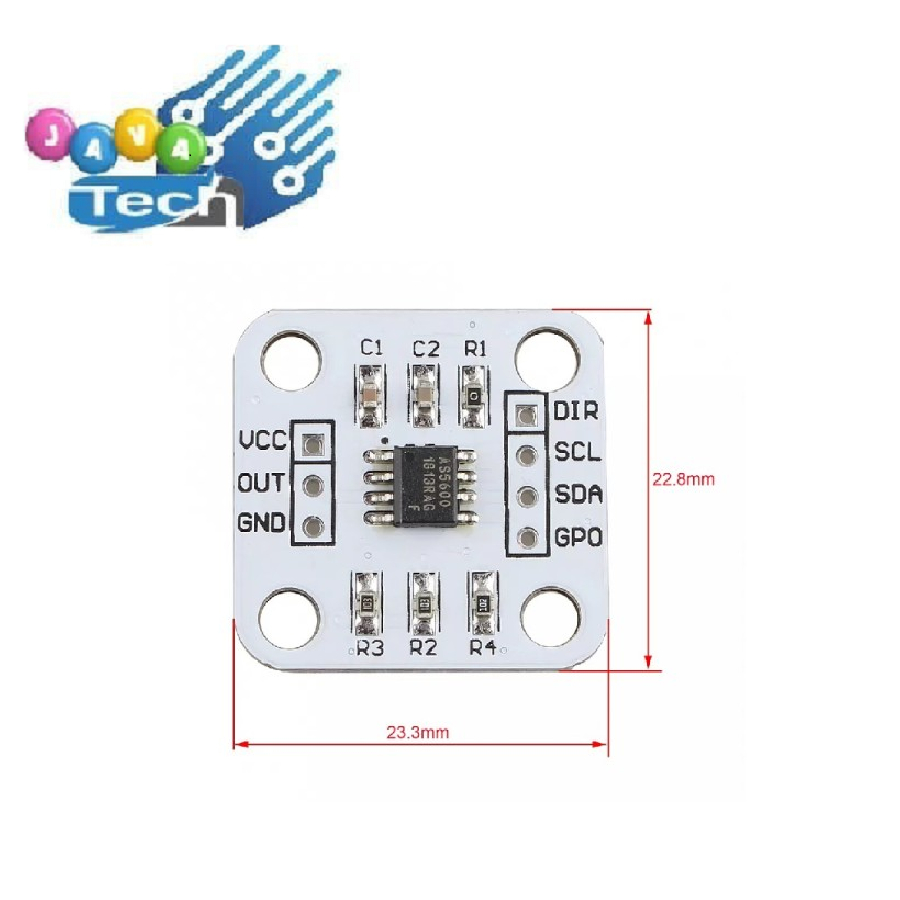

Pins:

VCC: 3.3V
GND: Power ground
Out: PWM / analog voltage output
DIR: Direction of rotation (earth = increases clockwise value; then VCC = clockwise, values ??are decreasing)
SCL: IICThe communication clock line
SDA: IICData communication line
GPO: Mode selection (internal traction field = mobk programming)
Features:

12-bit DAC output resolution
Non-contact magnetic induction angle measurement module.
High precision, a variety of output modes: IIC, PWM, and voltage.
