Detail Arduino UNO R3 Sensor Shield V4 Digital Analog

Deskripsi Arduino UNO R3 Sensor Shield V4 Digital Analog

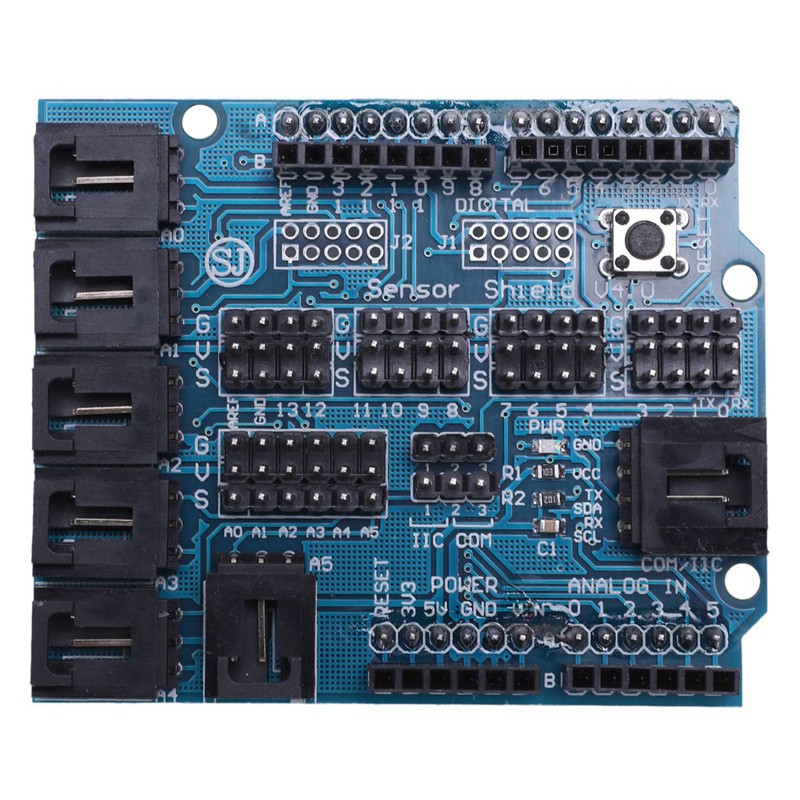

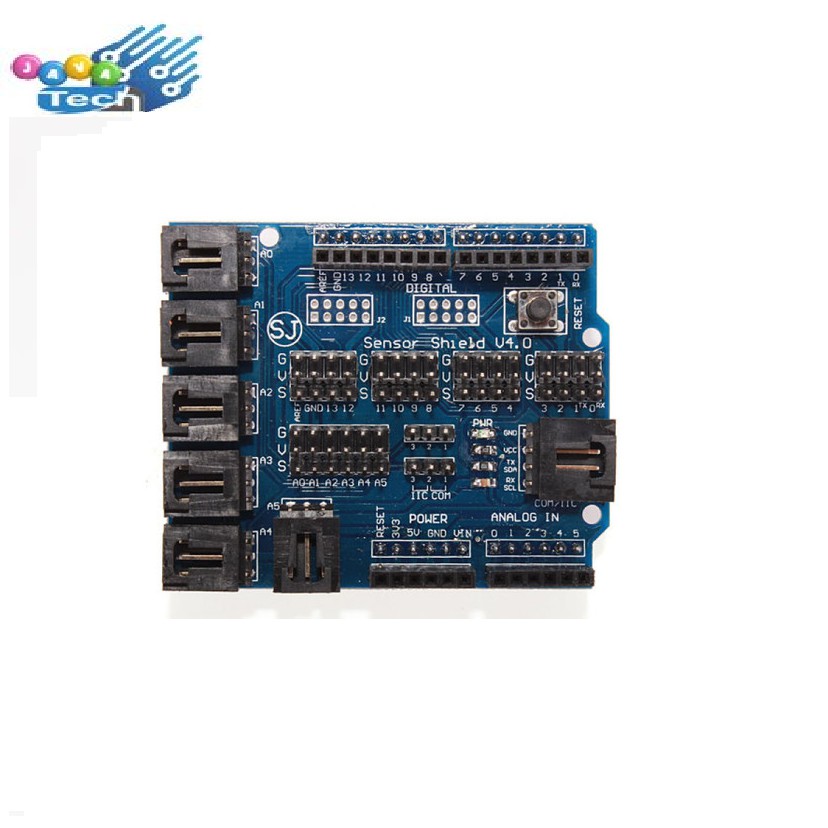

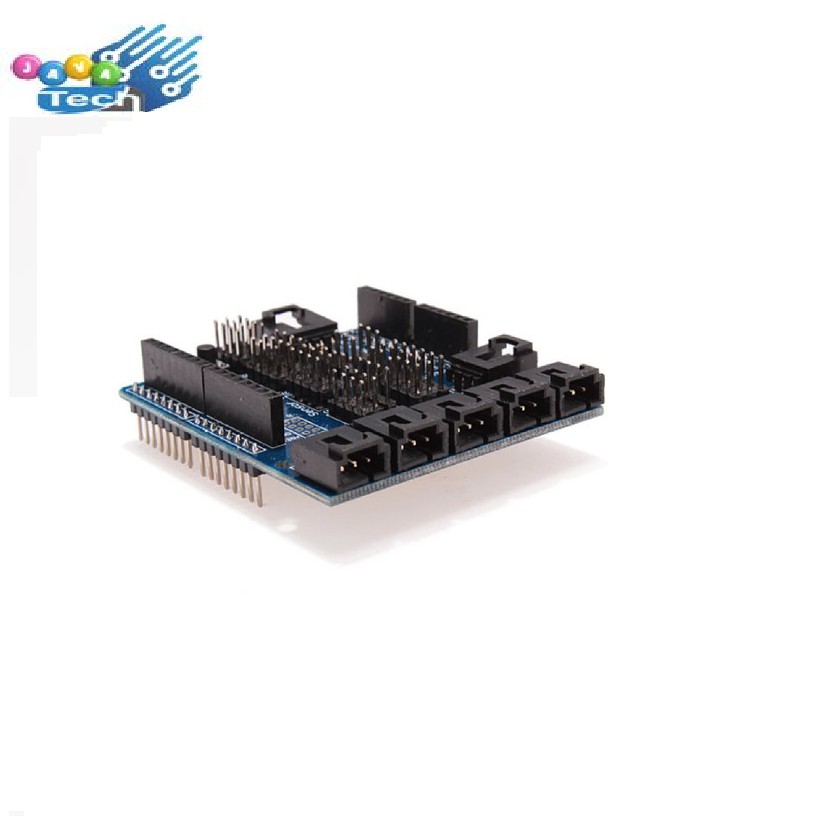

This shield is compatible with most types of Arduino boards that support the standard header layout including Uno, Leonardo, and Mega. It provides a convenient way to connect various sensor modules, servo's, or I2C LCD displays without the need for soldering. The shield has the following features:

6 x Buckled 3 pin analogue connectors providing connections to Analogue pins A0 to A5, GND and 5V

1x Buckled 4 pin serial I2C / UART interface (selectable via on board jumpers) providing convenient connection to serial or I2C sensors or displays.

12x Servo headers proving access to digital pins 0 to 13 with VCC and GND power connections.

6x Aux headers providing access to analogue pins A0 to A5

Serial I2C / UART jumper selection

Reset button

Standard Arduino headers for adding additional shields
