ARDUINO UNO R3 PROTOSHIELD COMPATIBLE FOR UNO R3

Detail ARDUINO UNO R3 PROTOSHIELD COMPATIBLE FOR UNO R3

Hi #RekanEasyWare ...
EasyWare Part#: EP000765

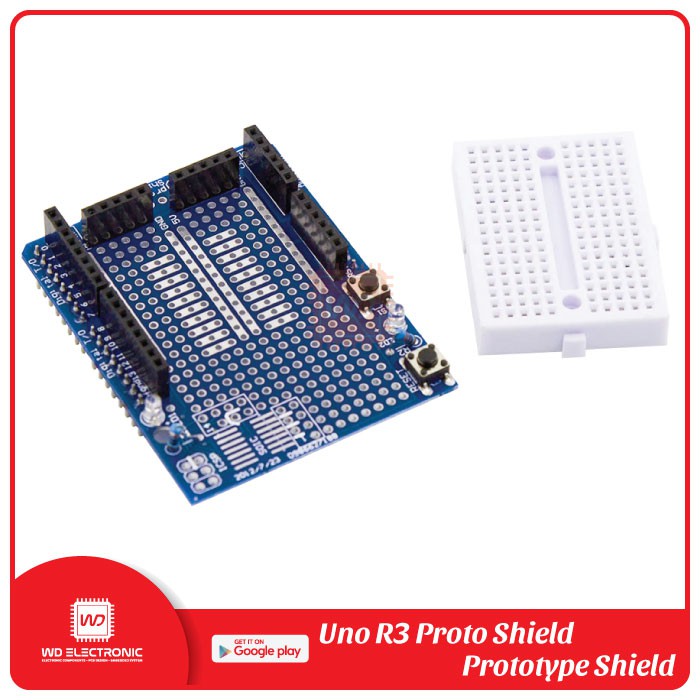

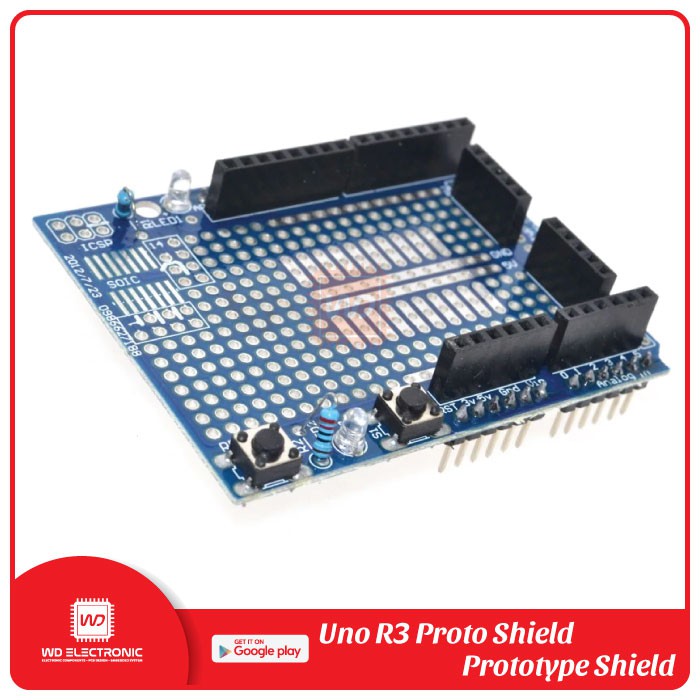

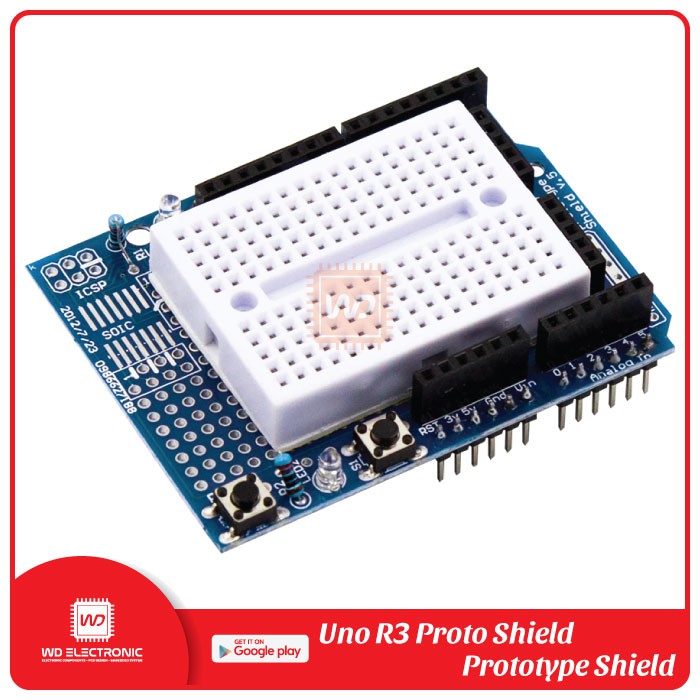

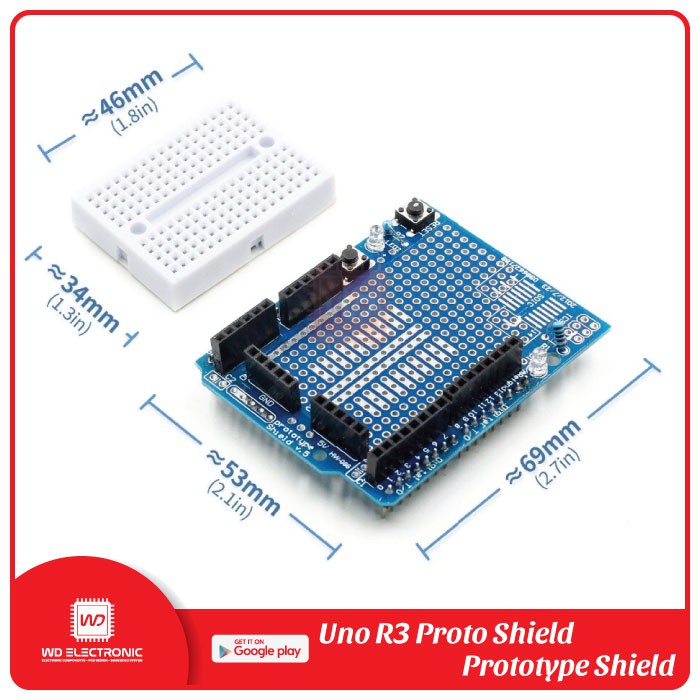

The Proto Shield is similar to a proto board but can be mounted on top of an Arduino Uno or Mega. It has solder holes allowing user to develop small circuit to connect to the Arduino board, the shield also includes a small breadboard for easy wiring.

FITUR DAN SPESIFIKASI :
- It has a nice standard 0.1"x0.1" prototying grid with big pads
- A IC pattern for adding DIP ICs up to 20 pins
- Power rails down the middle and sides
- A reset button and an extra general use button2 3mm general use LEDs, red and green, as well as 2 matching resistors
- The ICSP header is up top if you like to upload to your Arduino using a programmer
- A surface-mount chip area for up to 14 SOIC size parts
- Compatible with either tiny breadboards or 'standard' breadboards with the rails removed.
- Every pin is brought out, including the new 3V and Reset header pins
- 2 0.1uF capacitors on either side for extra power stability

KELENGKAPAN :
- 1pcs Arduino Prototyping Shield with Mini Breadboard

Gambar produk
