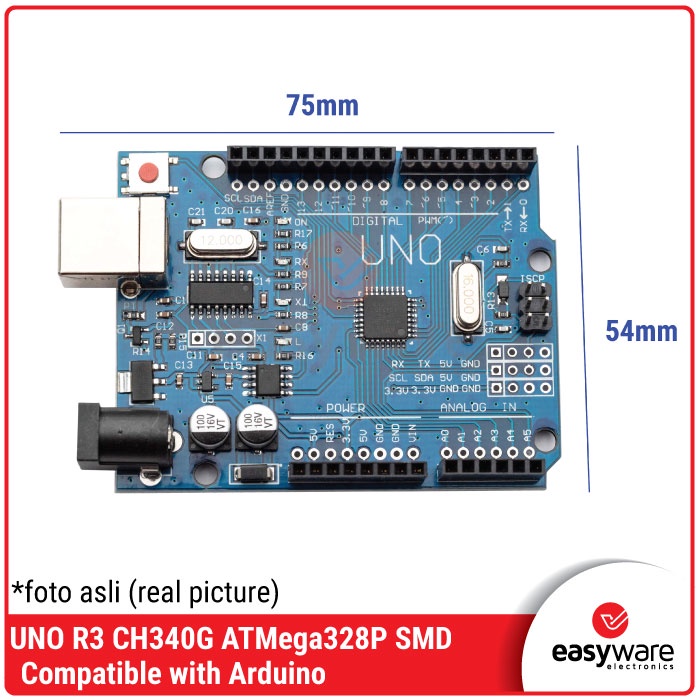

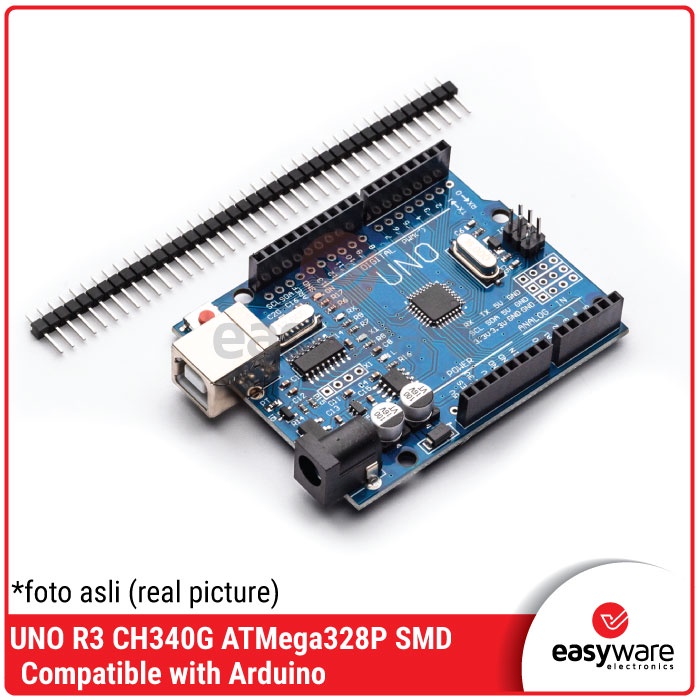

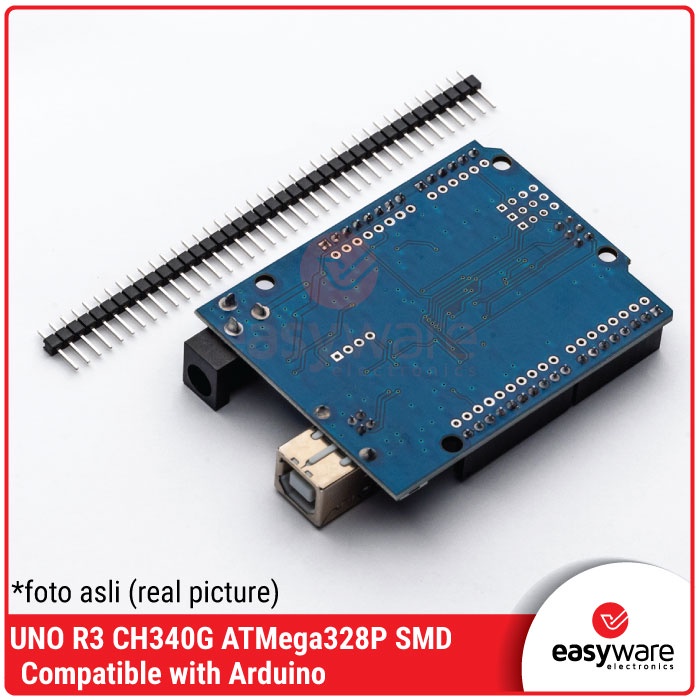

Arduino UNO R3 Clone CH340 SMD

Detail Arduino UNO R3 Clone CH340 SMD

Hi #RekanEasyWare ...
EasyWare Part#: EP000424

Features :
* Microcontroller: ATmega328P
* Operating voltage: 5V
* Input voltage (recommended): 7-12V
* Input voltage (limit values): 6-20V
* Digital I / O Pin 14 (6 of them provide PWM output)
* PWM Digital I / O Pinlar: 6
* Analog Input Pin: 6
* DC current per I / O Pin: 20 mA
* 3.3V Pin DC current: 50mA
* Flash Memory 32 KB (ATmega328P) which is used by the 0.5 KB bootloader
* SRAM: 2 KB (ATmega328P)
* EEPROM: 1 KB (ATmega328P)
* Clock Speed: 16 MHz
* Length: 68.6 mm
* Width: 53.4 mm

Packing List :
* 1pcs Arduino UNO R3 SMD Clone

Gambar produk
