Arduino R3 Vs1053B Mp3 Music Shield Module Board Dengan Slot Kartu Tf Untuk Arduino
Deskripsi singkat
Elektronik > Kelistrikan > Kelistrikan Lainnya > Arduino R3 Vs1053B Mp3 Music Shield Module Board Dengan Slot Kartu Tf Untuk Arduino
- Pengiriman Ekspres
- Barang yang diperiksa
- Bayar di tempat berlaku
- Kualitas, Prestise
- Pengembalian produk
- Dukung pembuatan faktur
Produk Terkait
Detail Arduino R3 Vs1053B Mp3 Music Shield Module Board Dengan Slot Kartu Tf Untuk Arduino
【Friends Welcome to #OlahragaOutdoorElektronik# store , If you love our products, please clickFeatures:
Can play a variety of music formats, support for OGG encoding real-time recording
SPI interface, the control signal lines are led out
A headphone and stereo output
A microphone for recording
A line_in input interface
Power indicator
3.3V and 2.8V of LDO chip AMS-1117 on board, provides up to 800mA current
A single power supply: +5 VDC
12.288 Mhz crystal
TF card slot
Decodes formats
Ogg Vorbis
MP3 = MPEG 1 & 2 audio layer III (CBR+VBR+ABR)
MP1 & MP2 = MPEG 1 & 2 audio layers I & II optional
MPEG4 / 2 AAC-LC(+PNS), HE-AAC v2 (Level 3) (SBR + PS)
WMA4.0/4.1/7/8/9 all profiles (5-384 kbps)
FLAC lossless audio with software plugin (upto 24 bits, 48 kHz)
WAV (PCM + IMA ADPCM)
General MIDI 1 / SP-MIDI format 0
Package included：
1 x MP3 Music VS1053B shield board with TF card slot work with Arduino UNO
#DIYMORE #Arduino #UNO #R3 #VS1053B #MP3 #Music #shield #Board #Module #TF #card
Delivery Info :
» All items are dispatched same day from Monday - Saturday (except Sunday & public holiday).
» Our order cut off time is 5pm, any order after 5pm will dispatch the following day.
» Please make sure that the address you provided is accurate, we DO NOT responsible for any mistakes that did by the customer.
» If you do not receive your goods by the time it mentioned, please do contact or email without hesitation.
【After sales policy】 We will provide a free replacement or repair service in the following cases:
1. We make logistics mistakes
2.We send the wrong product
3.Product have quality problems which is not damaged by human factor within warranty period, the warranty period will depends on specific product warranty
4.You receive a fake one
»Still have questions? ….Let's CHAT NOW!

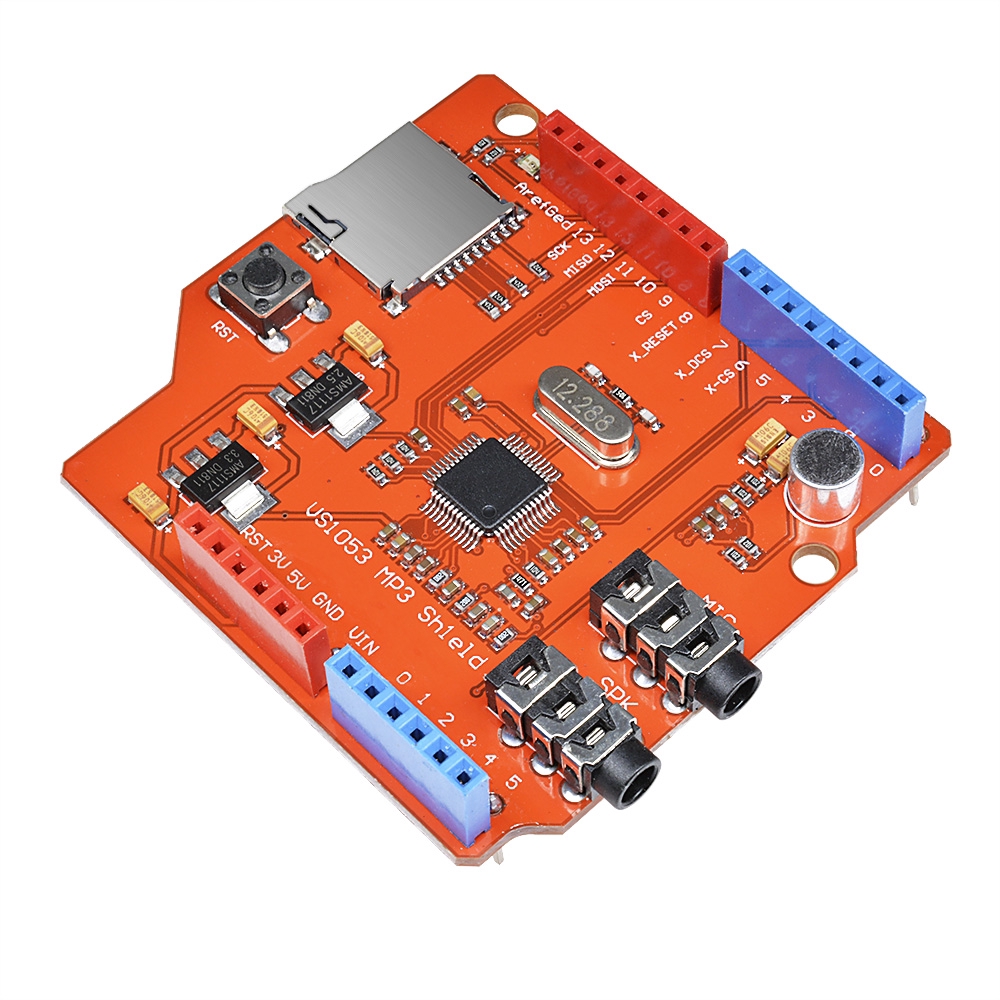

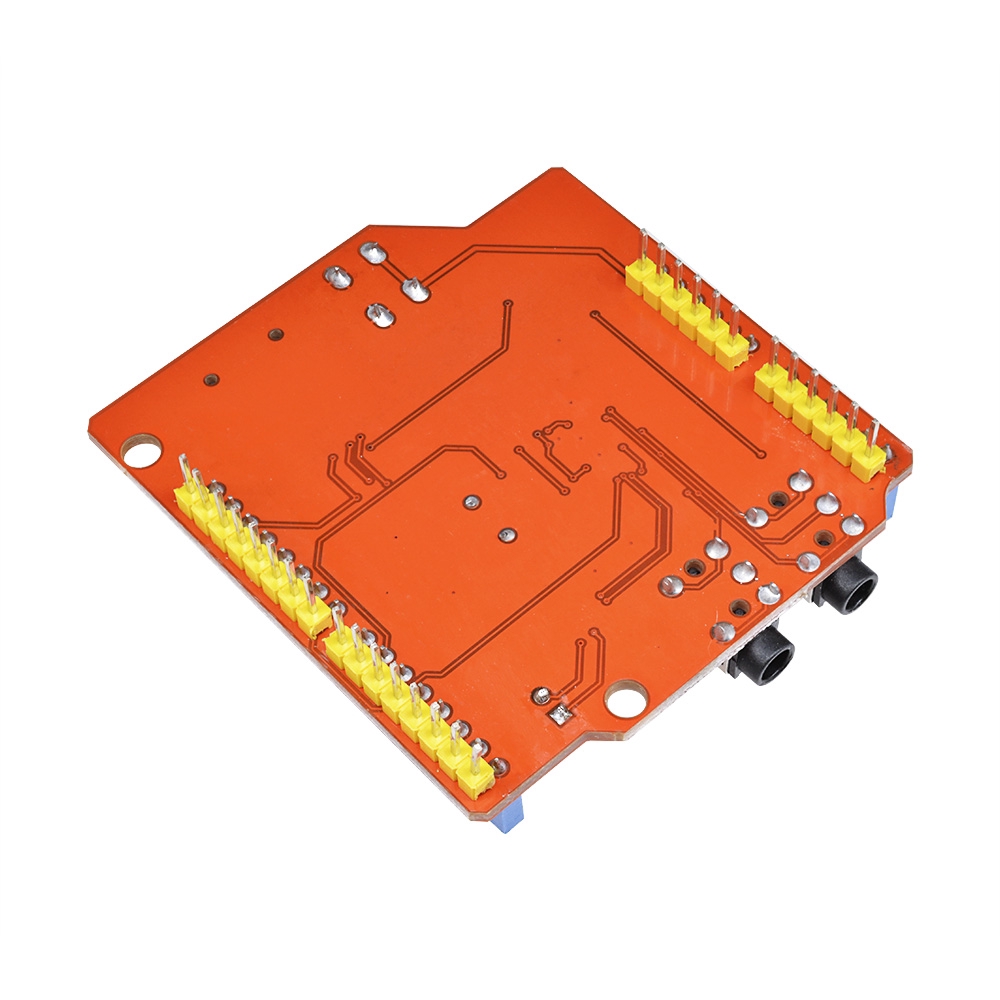

Gambar produk
