Arduino Pro Mini 328P 5V/16Mhz

Detail Arduino Pro Mini 328P 5V/16Mhz

Arduino pro mini ini mirip dengan arduino nano, hanya bedanya jika arduino nano telah built-in usb to serial untuk download sketch, sedangkan arduino pro mini harus menggunakan tambahan usb to TTL

The Arduino Pro Mini is a microcontroller board based on the ATmega328.
It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, an on-board resonator, a reset button, and holes for mounting pin headers. A six pin header can be connected to an FTDI cable or Sparkfun breakout board to provide USB power and communication to the board.
The Arduino Pro Mini is intended for semi-permanent installation in objects or exhibitions. The board comes without pre-mounted headers, allowing the use of various types of connectors or direct soldering of wires. The pin layout is compatible with the Arduino Mini.

Spesifikasi :
- Microcontroller: ATmega328
- Operating voltage: 5V
- Input voltage : 5-9V
- Digital I/O: 14 (6 PWM)
- Analog input: 6
- Flash memory: 32 KB (2 KB terpakai bootloader)
- RAM: 2 Kb
- EEPROM: 1K
- Clock speed: 16 MHz

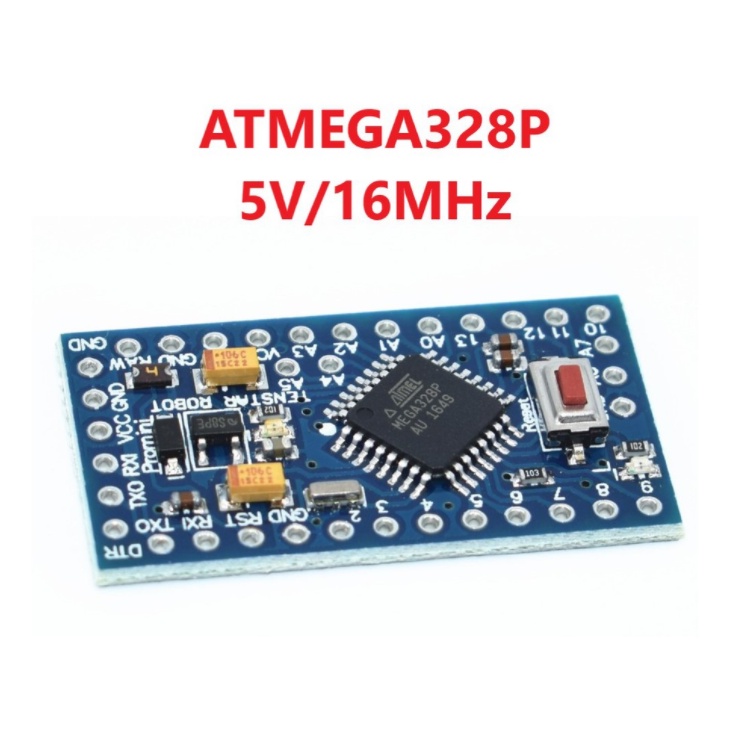

Gambar produk
