ARDUINO PRO MICRO ATMEGA32UA 5V 16Mhz

Detail ARDUINO PRO MICRO ATMEGA32UA 5V 16Mhz

Hi #RekanEasyWare ...
EasyWare Part#: EP000423

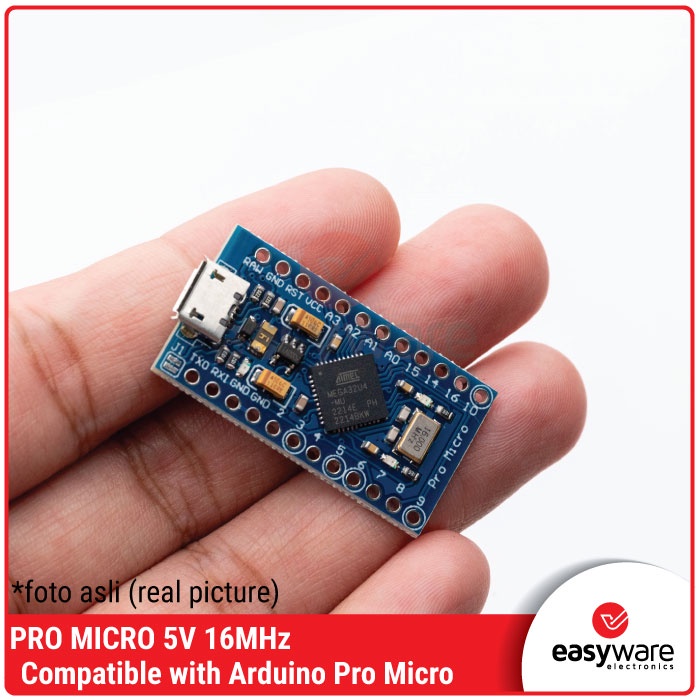

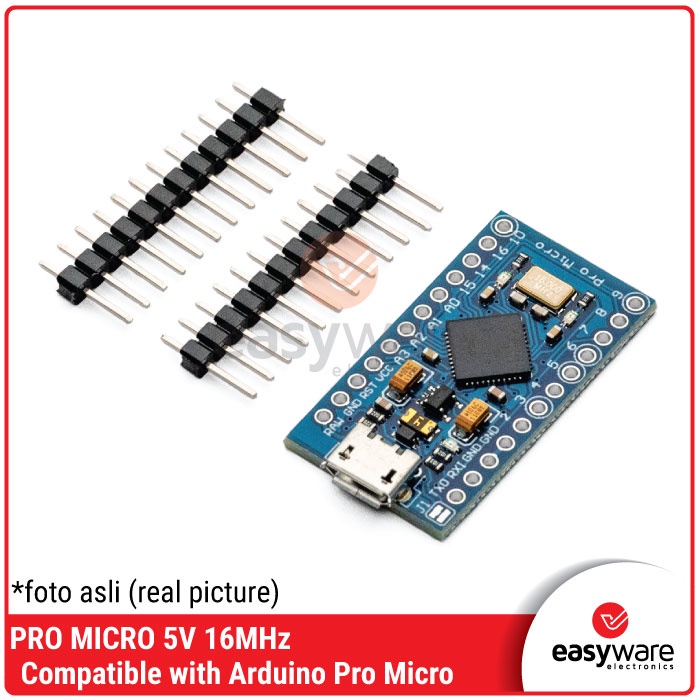

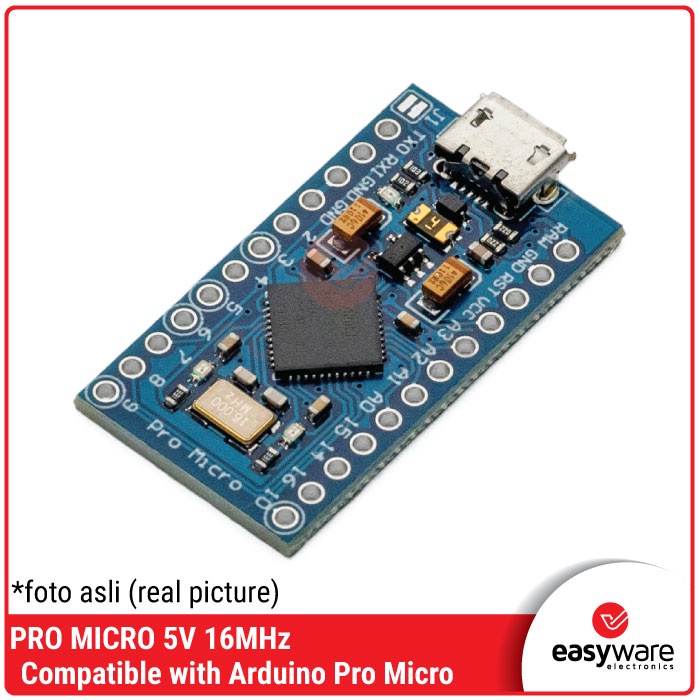

The Pro Micro is similar to the Pro Mini except with an ATmega32U4 on board. The USB transceiver inside the 32U4 allows us to add USB connectivity on-board and do away with bulky external USB interface.
This tiny little board does all of the neat-o Arduino tricks that youre familiar with: 9 channels of 10-bit ADC, 5 PWM pins, 12 DIOs as well as hardware serial connections Rx and Tx. Running at 16MHz and 5V, this board will remind you a lot of your other favorite Arduino-compatible boards but this little guy can go just about anywhere. There is a voltage regulator on board so it can accept voltage up to 12VDC. If youre supplying unregulated power to the board, be sure to connect to the RAW pin on not VCC.

FITUR DAN SPESIFIKASI :
* ATmega32U4 running at 5V/16MHz
* Supported under Arduino IDE v1.0.1
* On-Board micro-USB connector for programming
* 9 x 10-bit ADC pins
* 12 x Digital I/Os (5 are PWM capable)
* Rx and Tx Hardware Serial Connections

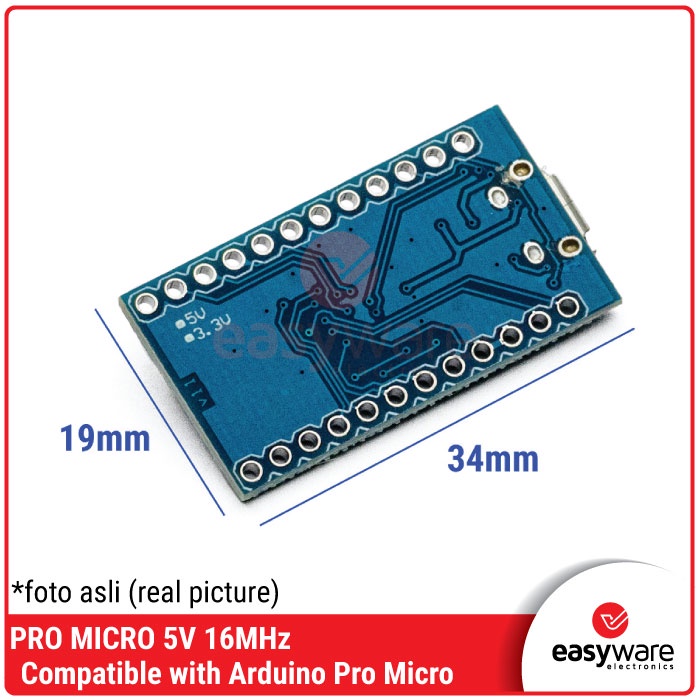

* Dimensions: 3.30 x 1.78 (cm)

KELENGKAPAN :
* 1pcs Arduino Pro Micro Clone 5V 16 Mhz

Gambar produk
