Arduino Nano v3 v3.0 ATMEGA328P 5V 16Mhz CH340
Merek: Arduino | Lihat selengkapnya produk Komputer & Aksesoris dari ArduinoDeskripsi singkat
Komputer & Aksesoris > Komputer & Aksesoris Lainnya > Arduino Nano v3 v3.0 ATMEGA328P 5V 16Mhz CH340
- Pengiriman Ekspres
- Barang yang diperiksa
- Bayar di tempat berlaku
- Kualitas, Prestise
- Pengembalian produk
- Dukung pembuatan faktur

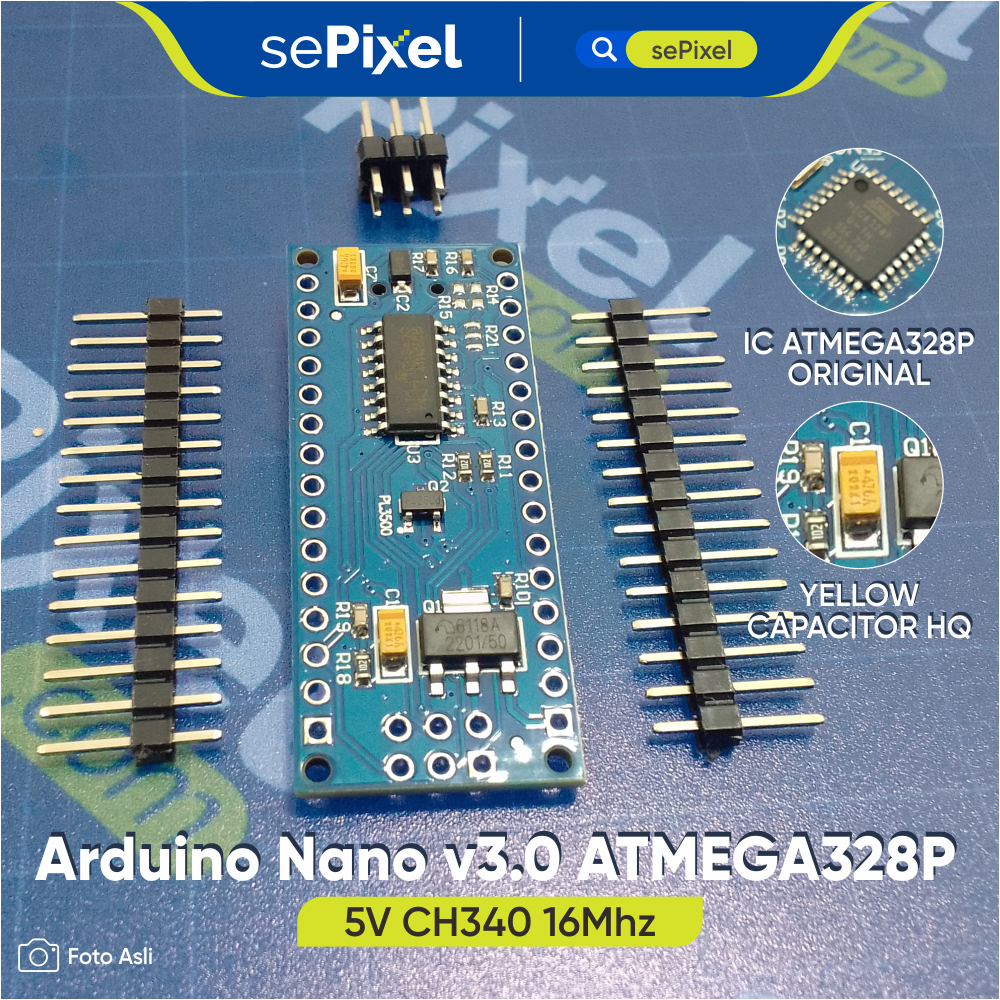

Detail Arduino Nano v3 v3.0 ATMEGA328P 5V 16Mhz CH340
Video perkenalan produk Arduino Nano v3 v3.0 ATMEGA328P 5V 16Mhz CH340. Sumber: Shopee.
Spesifikasi:
- Nano V3
- ATmega328 (16Mhz) microcontroller,
- CH340G - USB-UART interface,
- Operating Voltage (logic level) : 5 V
- Input Voltage (recommended) : 7-9 V
- Input Voltage (limits) : 6-20 V
- Digital I/O Pins :14 (of which 6 provide PWM output)
- Analog Input Pins: 8
- DC Current per I/O Pin: 40 mA
- Flash Memory : 32 KB of which 2 KB used by bootloader
- SRAM : 2 KB
- EEPROM : 1 KB
- Clock Speed : 16 MHz

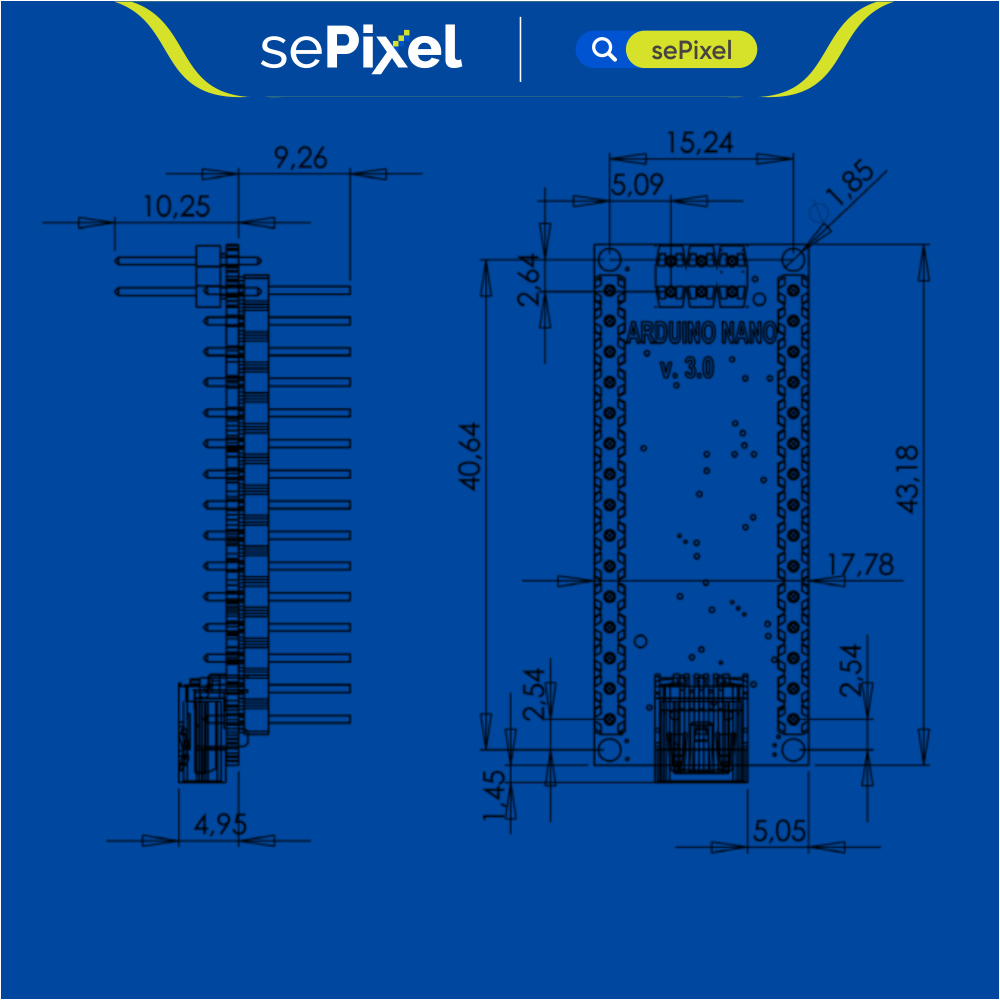

- Length : 45 mm
- Width : 18 mm
Jika belum terinstall driver, install arduino.my.id/driver/CH341SER.zip
Gambar produk
