Arduino Nano V3 Atmega328P CH340 Compatible Board Soldered Pin I/O

Elektronik > Elektronik Lainnya > Arduino Nano V3 Atmega328P CH340 Compatible Board Soldered Pin I/O
Tersedia
Periksa harganya...
Lihat tempat menjual
Toko:i2cpartshopLihat semua produk Elektronik oleh i2cpartshop
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur
DeskripsiSpesifikasi

Detail Arduino Nano V3 Atmega328P CH340 Compatible Board Soldered Pin I/O

Arduino Nano V3.0 board CH340 Atmega 328P Soldered ( tanpa kabel ) *pin sudah tersolder

Spesifikasi :
- Nano V3 form-factor,
- ATmega328 (16Mhz) microcontroller,
- CH340G - USB-UART interface,
- Operating Voltage (logic level) : 5 V
- Input Voltage (recommended) : 7-12 V
- Input Voltage (limits) : 6-20 V
- Output voltage 5V/800mA, 3.3V/180mA (Only in NEW vesrion),
- Mini USB - connection socket,
- Digital I/O Pins 14 (of which 6 provide PWM output)
- Analog Input Pins 8
- DC Current per I/O Pin 40 mA
- Flash Memory : 32 KB of which 2 KB used by bootloader
- SRAM : 2 KB
- EEPROM : 1 KB
- Clock Speed : 16 MHz
- Length : 45 mm
- Width : 18 mm

Gambar produk

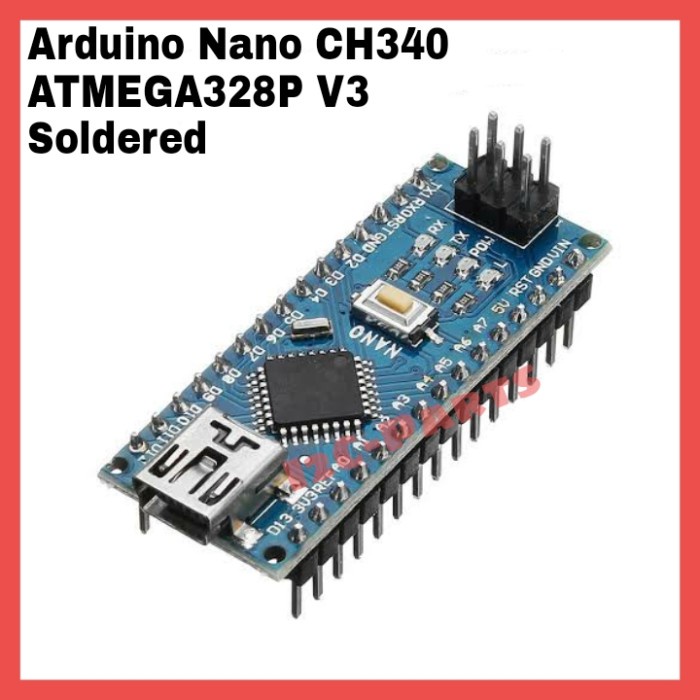

Arduino Nano V3 Atmega328P CH340 Compatible Board Soldered Pin I/O
Arduino Nano V3 Atmega328P CH340 Compatible Board Soldered Pin I/O
