Arduino Mega 2560 R3 - ATMEGA2560 clone - CH340

Elektronik > Elektronik Lainnya > Arduino Mega 2560 R3 - ATMEGA2560 clone - CH340
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur

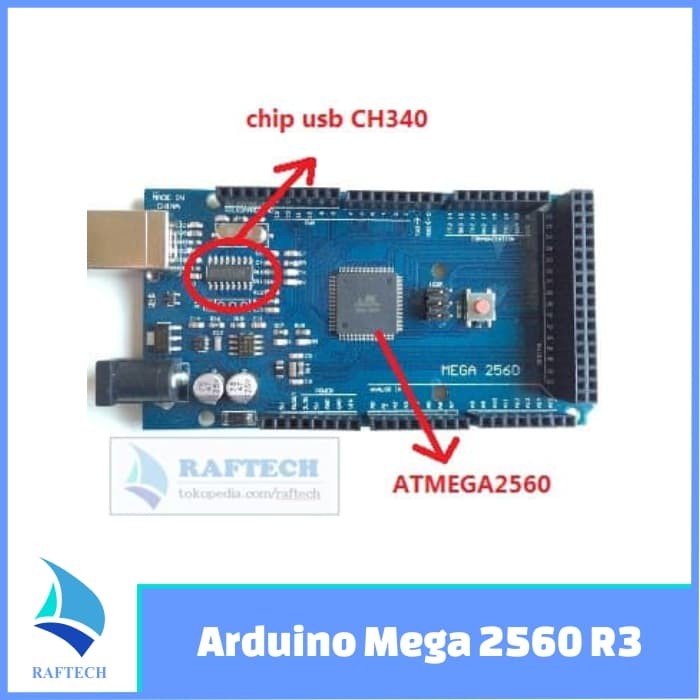

Detail Arduino Mega 2560 R3 - ATMEGA2560 clone - CH340

Microcontroller ATmega2560
chip usb : CH340
Operating Voltage 5V
Input Voltage (recommended) 7-12V
Input Voltage (limit) 6-20V
Digital I/O Pins 54 (of which 15 provide PWM output)
Analog Input Pins 16
DC Current per I/O Pin 20 mA
DC Current for 3.3V Pin 50 mA
Flash Memory 256 KB of which 8 KB used by bootloader
SRAM 8 KB
EEPROM 4 KB
Clock Speed 16 MHz
LED_BUILTIN 13
Length 101.52 mm
Width 53.3 mm

Gambar produk

Arduino Mega 2560 R3 - ATMEGA2560 clone - CH340
Arduino Mega 2560 R3 - ATMEGA2560 clone - CH340
