Detail ARDUINO MEGA 2560 CH340 MEGA 2560 R3 TANPA KABEL

Hi #RekanEasyWare ...
EasyWare Part#: EP000420

This is clone Arduino Mega 2560 microcontroller board comes from China with NO warranty offered. However, we do tested every pieces before pack and sell. If you prefer Original Arduino Mega 2560, please click here Arduino Mega 2560 . Original Arduino Mega 2560 board is comes from Italy. In fact, Mybotic is direct distibutor from genuine Arduino company.

Spesifikasi :
- Microcontroller: ATmega2560
- Operating Voltage: 5V
- Input Voltage (recommended): 7-12V
- Input Voltage (limits): 6-20V
- Digital I/O Pins: 54 (of which 15 provide PWM output)
- Analog Input Pins: 16
- DC Current per I/O Pin: 40 mA
- DC Current for 3.3V Pin: 50 mA
- Flash Memory: 256 KB of which 8 KB used by bootloader
- SRAM: 8 KB
- EEPROM: 4 KB
- Clock Speed: 16 MHz

Kelengkapan :
- 1x Arduino MEGA 2560 R3

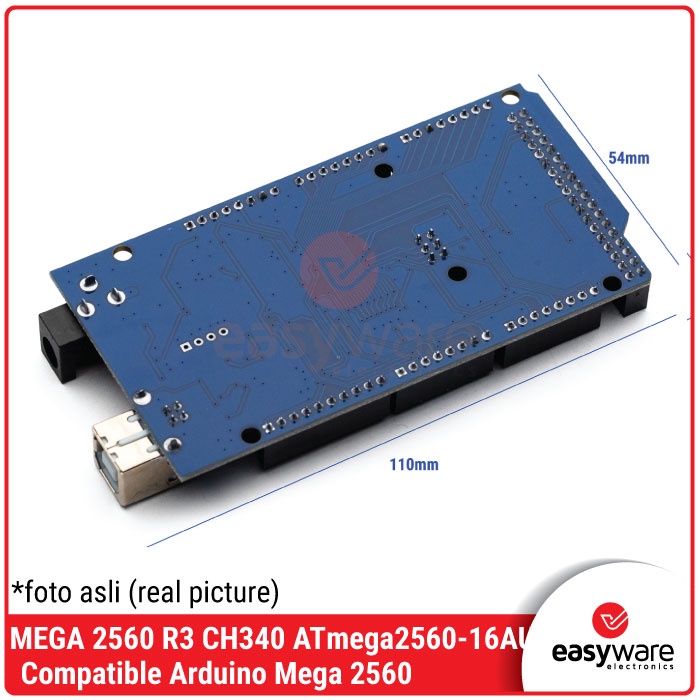

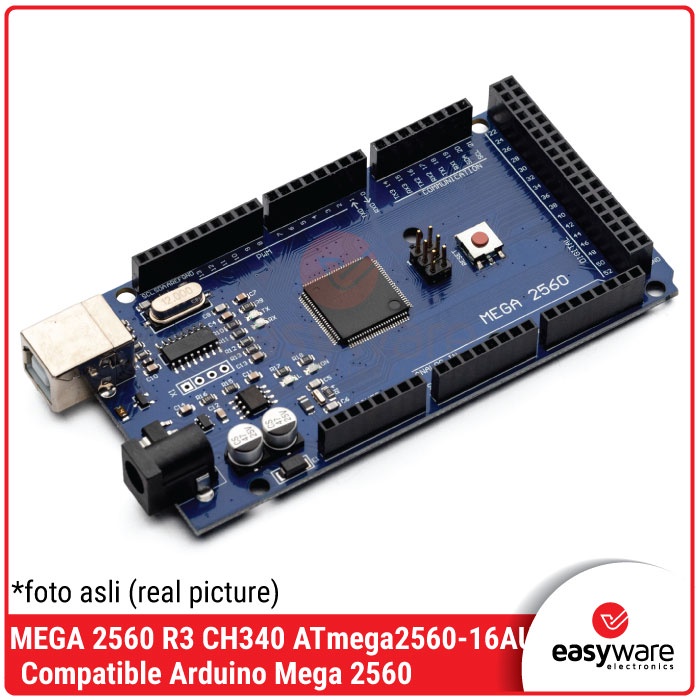

Gambar produk
