ARDUINO LEONARDO WITHOUT CABLE LEONARDO TANPA KABEL VERSI CLONE

Detail ARDUINO LEONARDO WITHOUT CABLE LEONARDO TANPA KABEL VERSI CLONE

Hi #RekanEasyWare ...
EasyWare Part#: EP000385

Note:
- Foto asli.
- Harga belum dengan kabel.

Arduino Leonardo is an Atmega32u4 based microcontroller board. There are 20 digital I/O pins (7 of them can be used as PWM out, 12 of them can be used as analog input), 16 MHz crystal oscilator, micro usb socket, power socket, ICSP connector and a reset button on the board. There are everything for the microcontroller to work on the board. The board can be easily connected to a computer via usb, can be supplied with an adapter or a battery.

FITUR DAN SPESIFIKASI :
* Microcontroller: ATmega32u4
* Operating voltage: 5 V
* Supply voltage (recommended): 7-12 V
* Supply voltage (limits): 6-20 V
* Number of digital I/O pins: 20
* Number of PWM pins: 7
* Number of analog input pins: 12
* Max DC current for each I/O pins: 40 mA
* DC current for 3.3 V out: 50 mA
* Max DC current for 3.3 V pin: 1 A (if supplied with an external adapter)
* Flash memory: 32 kB (ATmega32u4, 4 kB is used by bootloader)
* SRAM: 2.5 kB (ATmega32u4)
* EEPROM: 1kB (ATmega32u4)
* Clock speed: 16 MHz
* Length: 68.6 mm
* Width: 53.4 mm

KELENGKAPAN :
* 1pcs Arduino Leonardo R3 (Clone) tanpa kabel

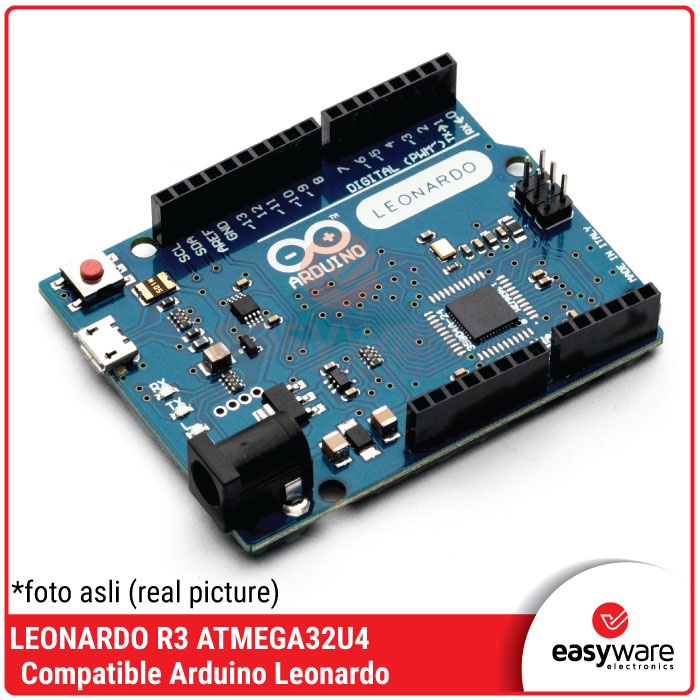

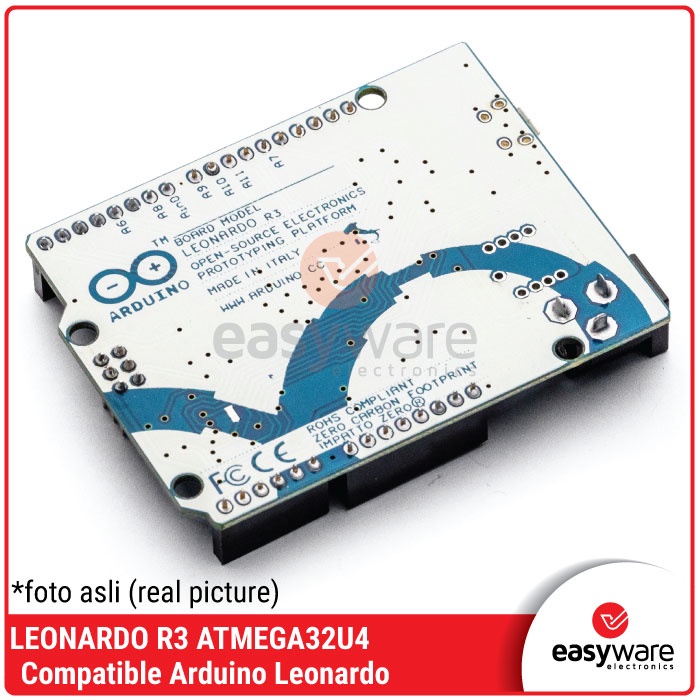

Gambar produk
