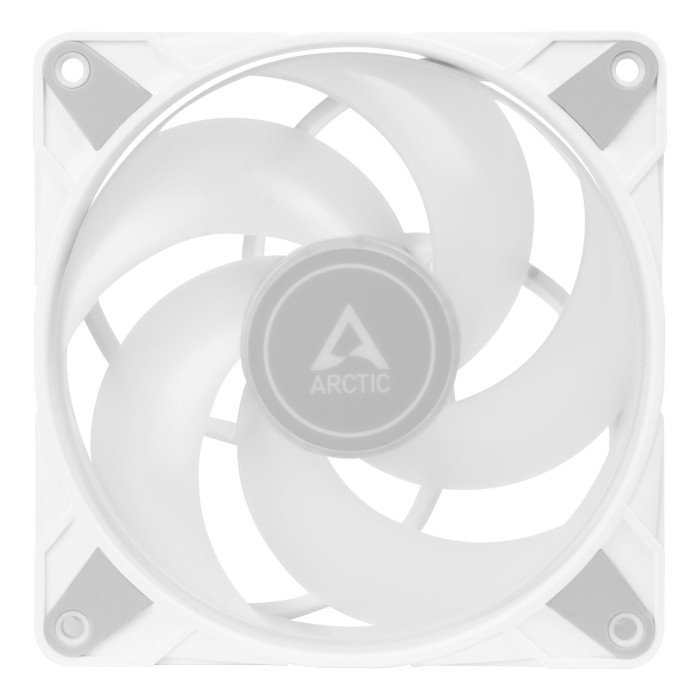

ARCTIC P12 PWM PST A-RGB - WHITE

Detail ARCTIC P12 PWM PST A-RGB - WHITE

TECHNICAL SPECIFICATIONS & MANUAL
General data

-Performance :
Fan Speed: 200 - 2000 rpm (0 rpm below 5% PWM)
-Airflow: 48.8 CFM/ 82.91 m³/h
-Static Pressure: 1.85 mm H₂O
-Noise Level: 0.3 Sone
-Operating Ambient Temperature: 0 - 40 °C
-Warranty: 6 Years

Fan :
-Fan Frame: Standard
-Control Type: PWM PST
-Connector: 4-Pin-Connector + 4-Pin-Socket
-Fan Bearing: Fluid Dynamic Bearing
-Electric Characteristics:
-Typical Voltage: 12 V DC
-Starting Voltage: 5 V
-Current/ Voltage: 0.11 A / 12 V
-Cable Length: 400 mm

RGB Specifications :
-LEDs: 12 A-RGB LEDs
-Connector: 3-Pin 5V-DI-GND Connector
-Current / Voltage: 0.4 A/5 V
-Cable: 450 mm cable with 80 mm sharing cable, black

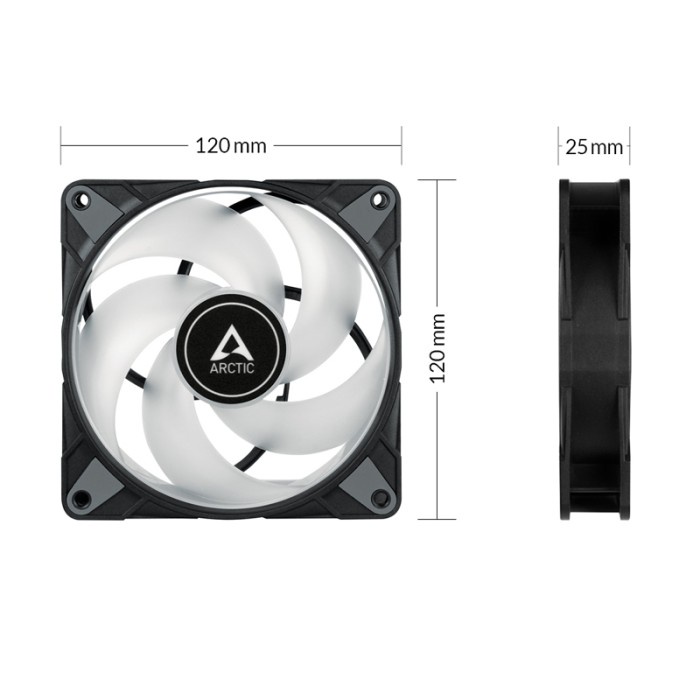

Size & Weight :
-Length: 120 mm
-Width: 120 mm
-Height: 25mm
-Weight: 131g
