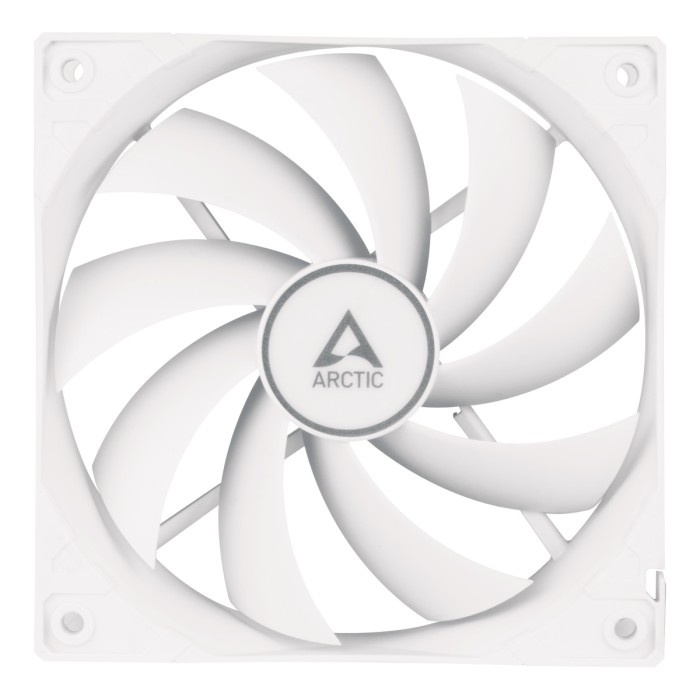

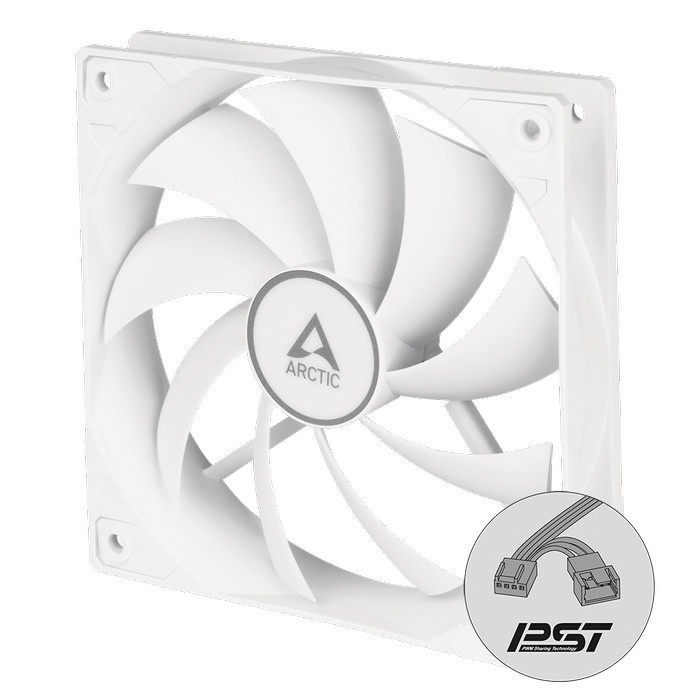

Detail ARCTIC F12 PWM PST SINGLE PACK - WHITE
TECHNICAL SPECIFICATIONS & MANUAL
General data
Performance :
-Fan Speed: 230 - 1350 rpm
-Airflow: 53 CFM/ 90.1 m³/h
-Static Pressure: 1 mm H₂O
-Noise Level: 0.3 Sone
Fan :
-Fan Frame: Standard
-Control Type: PWM PST
-Connector: 4-Pin-Connector + 4-Pin-Socket
--Fan Bearing: Fluid Dynamic Bearing
Operating Ambient Temperature: 0 - 40 °C
-Warranty: 6 Years
Electric Characteristics :
-Typical Voltage: 12 V DC
-Starting Voltage: 6 V
-Current/ Voltage: 0.12 A / 12 V
-Cable Length: 400 mm
Size & Weight :
-Length: 120 mm
-Width: 120 mm
-Height: 25 mm
Weight: 109 g
