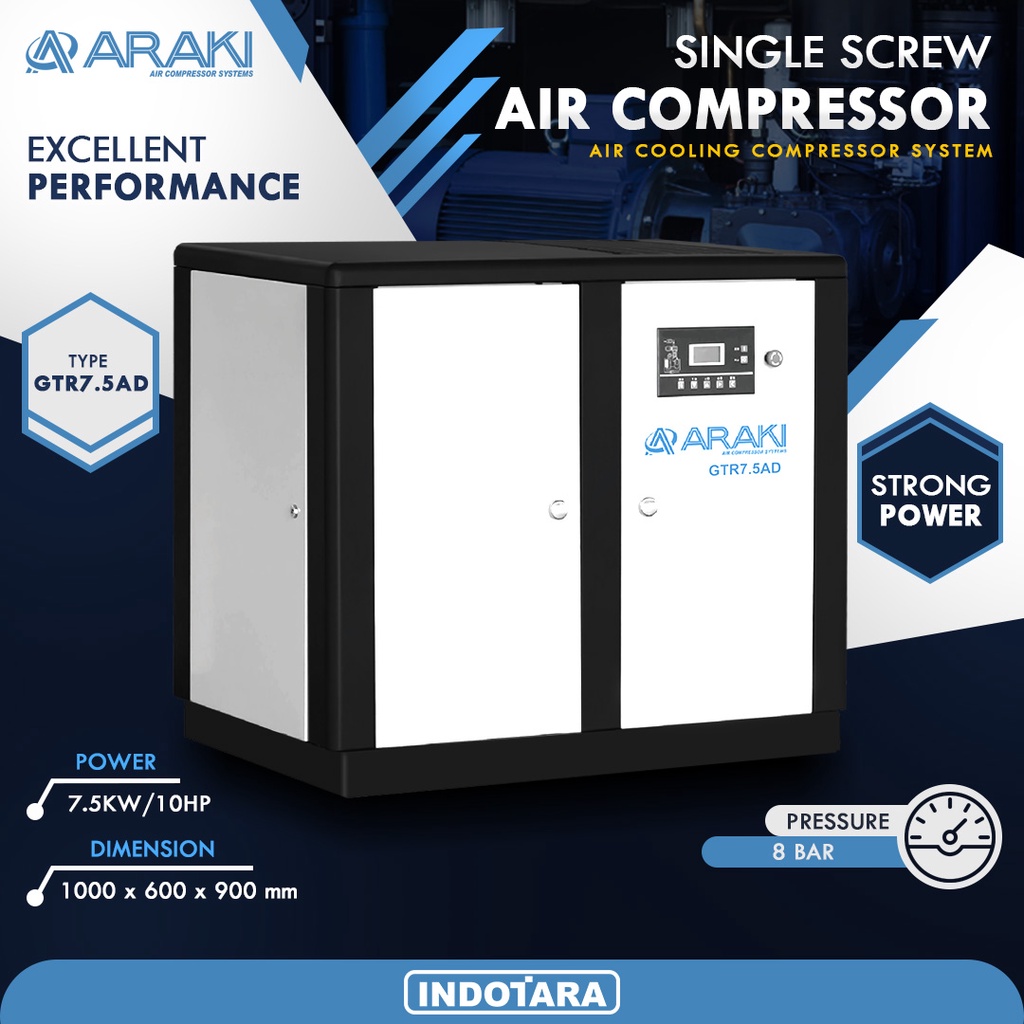

ARAKI SINGLE SCREW AIR COMPRESSOR GTR7.5AD 8BAR

Detail ARAKI SINGLE SCREW AIR COMPRESSOR GTR7.5AD 8BAR

Setiap hari buka termasuk hari minggu/libur, silahkan di pesan barang nya dan kami akan mengirimkan barang pesanan anda secepat mungkin

ARAKI Heavy Duty Screw Compressor
Type : GTR7.5AD
Power : 7.5KW/10HP
Voltage (V) : 3Ph/380V/50Hz
Pressure : 8 Bar (0.8 Mpa)
Air Delivery : 39 Cfm (1.1 m3/min)
Motor Speed : 2970 Rpm
Air Supply Oil Content : ≤ 3 PPM
Pipe Size (Ø mm) : 3/4”
Transmission Model : Coupling Drive (No Vanbelt)
Lubrication System : High Pressure Filtered Oil
Oil Cooling Sistem : Radiator + Cooling Fan
Cooling Fan Power : 120W
Controller : Smart Microcontroller + LCD Display
Safety Valve : Ready
Startup Model : Y - Δ startup
Air Supply Temperature : ≤ Ambient Temperature +15℃
Noise : 62 [dB(A)]±2
Canopy Coating : Powder Coating
Dimension (LxWxH)mm : 1000x600x900
Weight (Kg) : 350

Feature :
- Programmable Logic Controller ( PLC ) by MAM
- Oil filter by MANN Filter , Germany
- Electrical control by Schneider , France
- Magnetic Valve & Pressure Controller by Burkert,Germany
- Unloading Valve by Hoerbiger , Austria
- 3 Years Warranty

Dapatkan produk-produk berkualitas tinggi dengan harga yang ekonomis.
Hati-hati barang tiruan, Produk yang asli hanya ada di PT. Indotara Persada.
